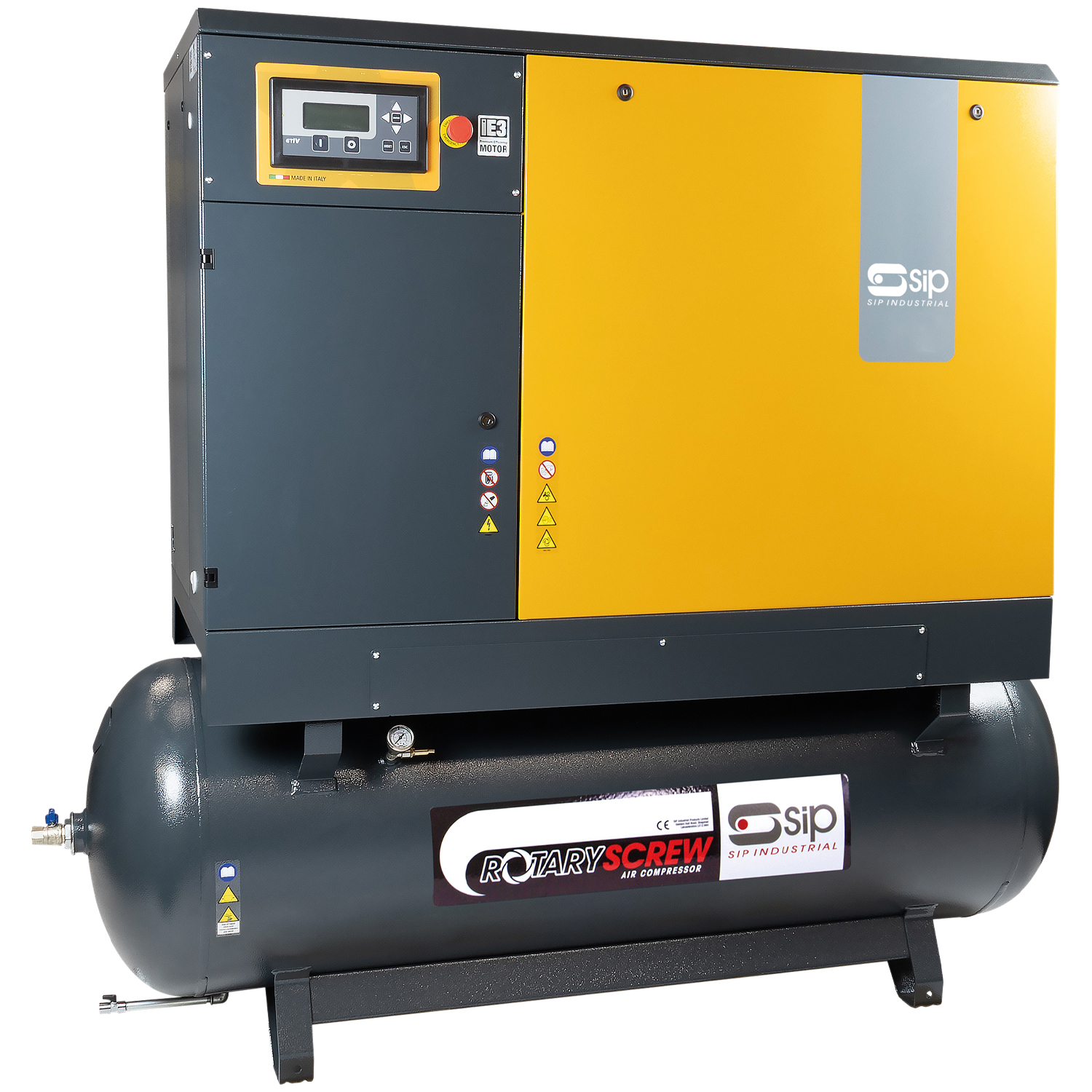

SIP RS15-10-500BD/FF Rotary Screw Compressor - Code 06536

The SIP RS15-10-500BD/FF offers unrivalled 2-4-2 high-quality clean air in accordance with ISO 8573-1, so that regardless of application, you know that this compressor will provide the highest standard of dry compressed air continuously.

It houses the air end, dryer, filters, controller, and receivers in a single modular unit, providing a space-saving solution that means it can be used in a variety of environments that need continuous production of compressed air.

Moreover, the RS15-10-500BD/FF is tested thoroughly by SIP technicians in the UK prior to despatch, for added peace-of-mind.

Browse for more premium compressors from SIP Industrial.

Fully automatic, integrated, and self-monitoring All-in-one system; compact and modern design for easy servicing access Electronic ETIV controller with digital display; easy-to-use and reliable Italian-manufactured FS26 TF air end delivers high-quality constant airflow Integrated air system provides both dry and clean air to quality standard classification 2-4-2, in accordance with ISO 8573-1 Dry tank technology for constant airflow and reduced corrosion Air end, dryer, filters, controller, and receiver are in a single modular unit, providing a comprehensive space-saving solution Automatic condensate discharge and status via electronic panel 10µm inlet filtration and 1µm outlet filtration 100% UK tested by SIP before despatch Manufactured in Italy

Technical Information

ITEM NO. 06536
Input Supply: 400v (40A) 3-PHASE
Motor Power: 15kW (20.11hp)
Receiver Size: 500ltr
Free Air Delivery (FAD): 65.00CFM (1841ltr/min)
Max. Air Pressure: 145psi (10bar)
Filtration Level: 10µm particulate
1µm oil filter
Refrigeration Dryer: 3°C Dew Point
Air Quality Level: 2-4-2 (ISO 8573-1*)
Noise Level: 65dB(A)
Net Weight: 443.00kg
Gross Weight: 458.00kg
Product Dimensions: 1980(H) x 700(W) x 1670mm(D)
Packaged Dimensions: 2000(H) x 775(W) x 1800mm(D)
*CLASS (ISO 8573-1)
  SOLID PARTICLE (max. per mtr³)
WATER OIL
  0.1µm - 0.5µm 0.5µm - 1µm 1µm - 5µm Pressure Dew Point mg/mtr³
1 100 1 0 -70°C 0.01
2 100,000 1,000 10 -40°C 0.1
3 N/A 10,000 500 -20°C 1
4 N/A N/A 1,000 3°C 5
5 N/A N/A 20,000 7°C N/A
6 N/A N/A N/A 10°C N/A
