SIP RS22-10-500BD/FF Rotary Screw Compressor - Code 06537

Authorised Distributor

No Stock

Quote Ref: @112421

Product ID: sip_06537

Barcode: 5012713065370

Manufacturer: SIP Industrial

Warranty: Click here for info

Price: (£8,249.99 ex VAT) £9,899.99 (inc VAT)

Available at checkout!

Categories Products

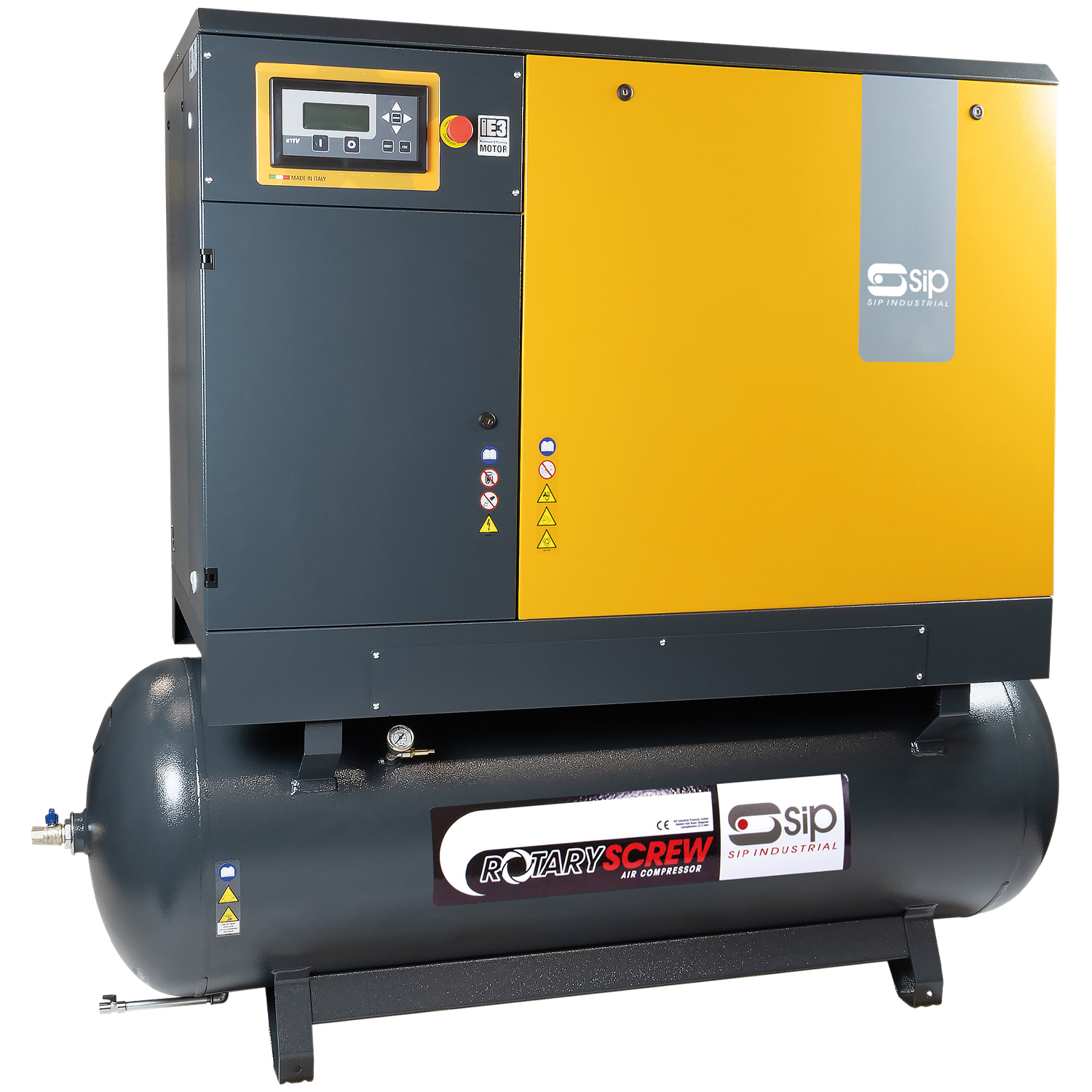

SIP RS22-10-500BD/FF Rotary Screw Compressor - Code 06537

The SIP RS22-10-500BD/FF offers unrivalled 2-4-2 high-quality clean air in accordance with ISO 8573-1, so that regardless of application, you know that this compressor will provide the highest standard of dry compressed air continuously.

It houses the air end, dryer, filters, controller, and receivers in a single modular unit, providing a space-saving solution that means it can be used in a variety of environments that need continuous production of compressed air.

Moreover, the RS22-10-500BD/FF is tested thoroughly by SIP technicians in the UK prior to despatch, for added peace-of-mind.

Browse for more premium compressors from SIP Industrial.

Fully automatic, integrated, and self-monitoring All-in-one system; compact and modern design for easy servicing access Electronic ETIV controller with digital display; easy-to-use and reliable Italian-manufactured FS50 TF air end delivers high-quality constant airflow Integrated air system provides both dry and clean air to quality standard classification 2-4-2, in accordance with ISO 8573-1 Dry tank technology for constant airflow and reduced corrosion Air end, dryer, filters, controller, and receiver are in a single modular unit, providing a comprehensive space-saving solution Automatic condensate discharge and status via electronic panel 10µm inlet filtration and 1µm outlet filtration 100% UK tested by SIP before despatch Manufactured in Italy

Technical Information

ITEM NO.	06537
Input Supply:	400v (50A) 3-PHASE
Motor Power:	22kW (29.50hp)
Receiver Size:	500ltr
Free Air Delivery (FAD):	106.00CFM (3002ltr/min)
Max. Air Pressure:	145psi (10bar)
Filtration Level:	10µm particulate 1µm oil filter
Refrigeration Dryer:	3°C Dew Point
Air Quality Level:	2-4-2 (ISO 8573-1*)
Noise Level:	71dB(A)
Net Weight:	599.00kg
Gross Weight:	614.00kg
Product Dimensions:	1980(H) x 700(W) x 1670mm(D)
Packaged Dimensions:	2000(H) x 775(W) x 1800mm(D)

*CLASS	(ISO 8573-1)
	SOLID PARTICLE (max. per mtr³)			WATER	OIL
	0.1µm - 0.5µm	0.5µm - 1µm	1µm - 5µm	Pressure Dew Point	mg/mtr³
1	100	1	0	-70°C	0.01
2	100,000	1,000	10	-40°C	0.1
3	N/A	10,000	500	-20°C	1
4	N/A	N/A	1,000	3°C	5
5	N/A	N/A	20,000	7°C	N/A
6	N/A	N/A	N/A	10°C	N/A

Brand: SIP Industrial

Identifier: 06537
