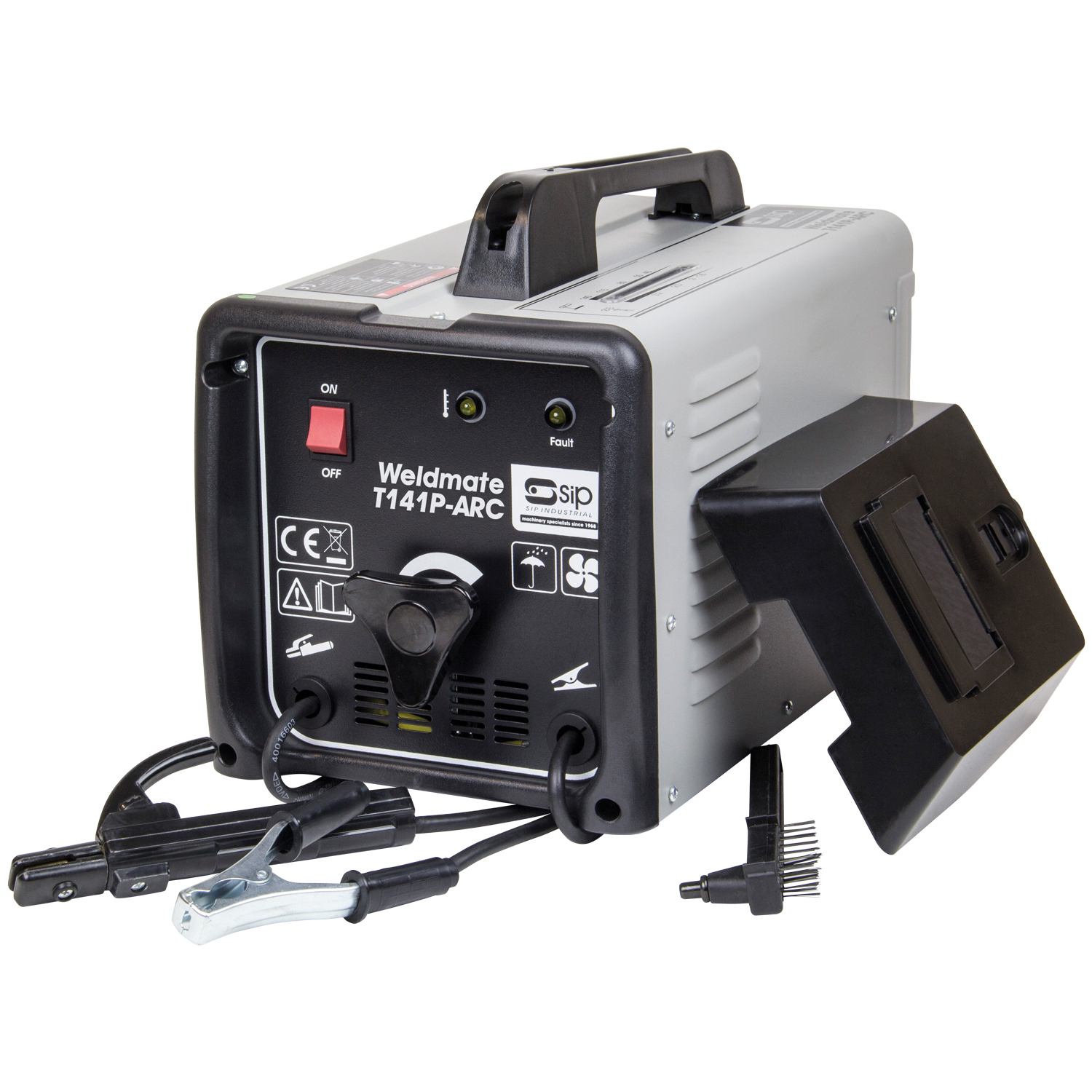

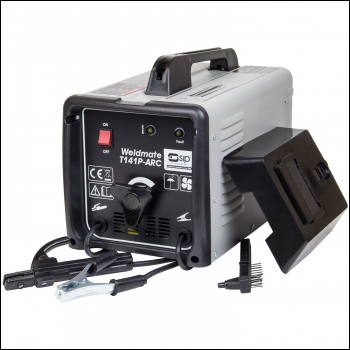

SIP T141P-ARC Transformer Welder - Code 05741

The SIP T141P-ARC Transformer Welder offers powerful performance via a selection of technologies that also provide superb versatility, including infinitely variable stepless output, double shunt power regulation, and electrode-to-material thickness gauge.

Supplied with a wheel kit, chipping hammer, handheld face shield, 2mtr cable with electrode holder, and 2mtr Earth cable and clamp.

Browse for more high-quality welding machines and accessories.

Ø 1.6mm to Ø 3.2mm electrode diameter 40A to 115A output current; 115A @ 10% duty cycle Electrode-to-material thickness gauge indicates the correct electrode size Turbo fan cooling for an extended running time Thermal overload protection for added safety Integrated double shunt power regulation Infinitely variable stepless power output

Technical Information

ITEM NO.	05741
Input Supply:	230v (13A)
Output Current:	40A - 140A
Output Voltage:	19.6v - 22.6v
Duty Cycle:	115A @ 10%
Electrode Diameter:	Ø 1.6mm - 3.2mm
Welding Thickness:	1.5mm - 5mm
Open Circuit Voltage:	48v
Power Factor:	0.60
Efficiency Level:	42%
Protection Level:	IP21S
Insulation Class:	Class F
Net Weight:	14.73kg
Gross Weight:	15.50kg
Product Dimensions:
Packaged Dimensions:	320(H) x 510(W) x 275mm(D)

Brand: SIP Industrial

Identifier: 05741
