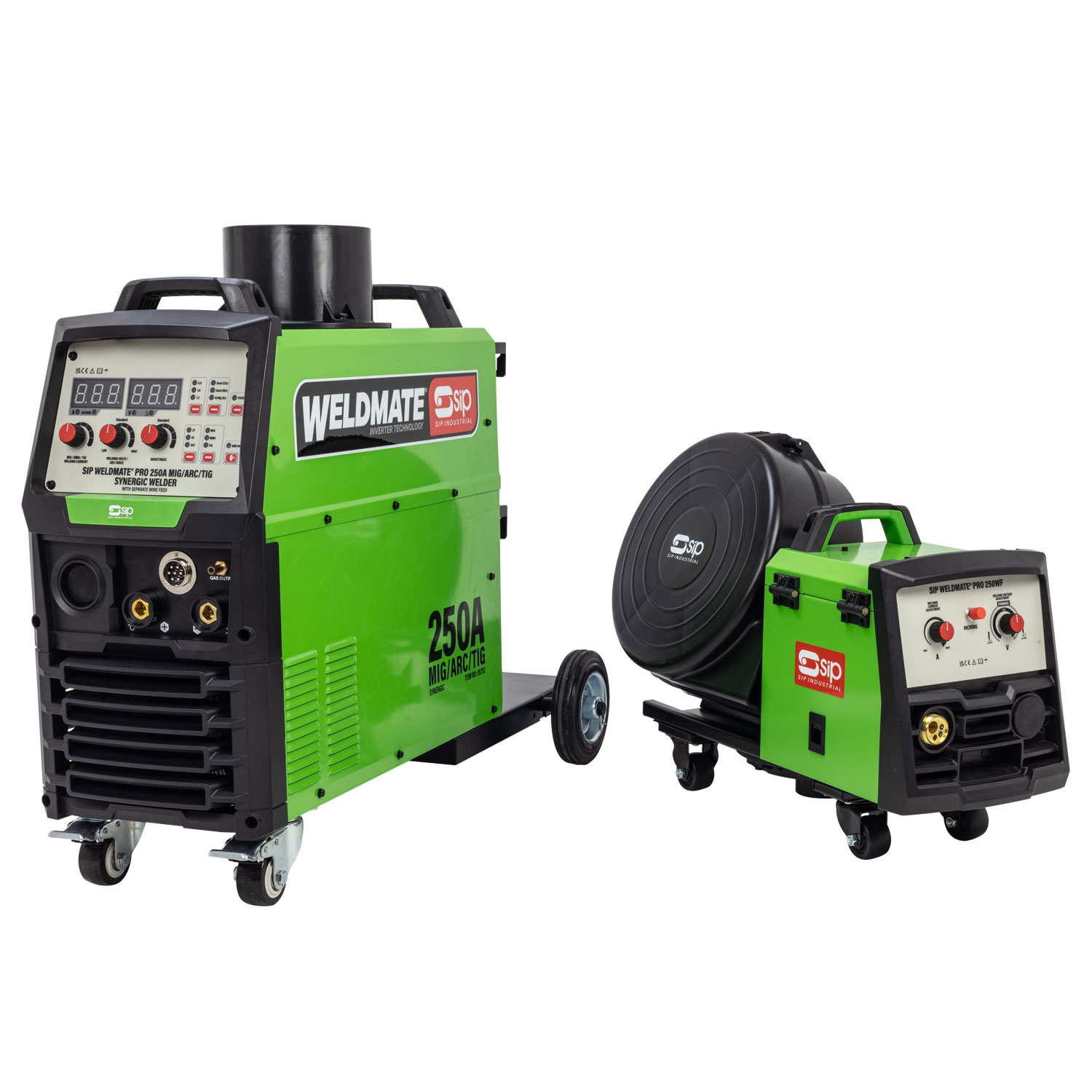

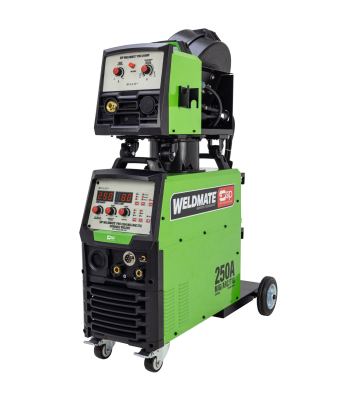

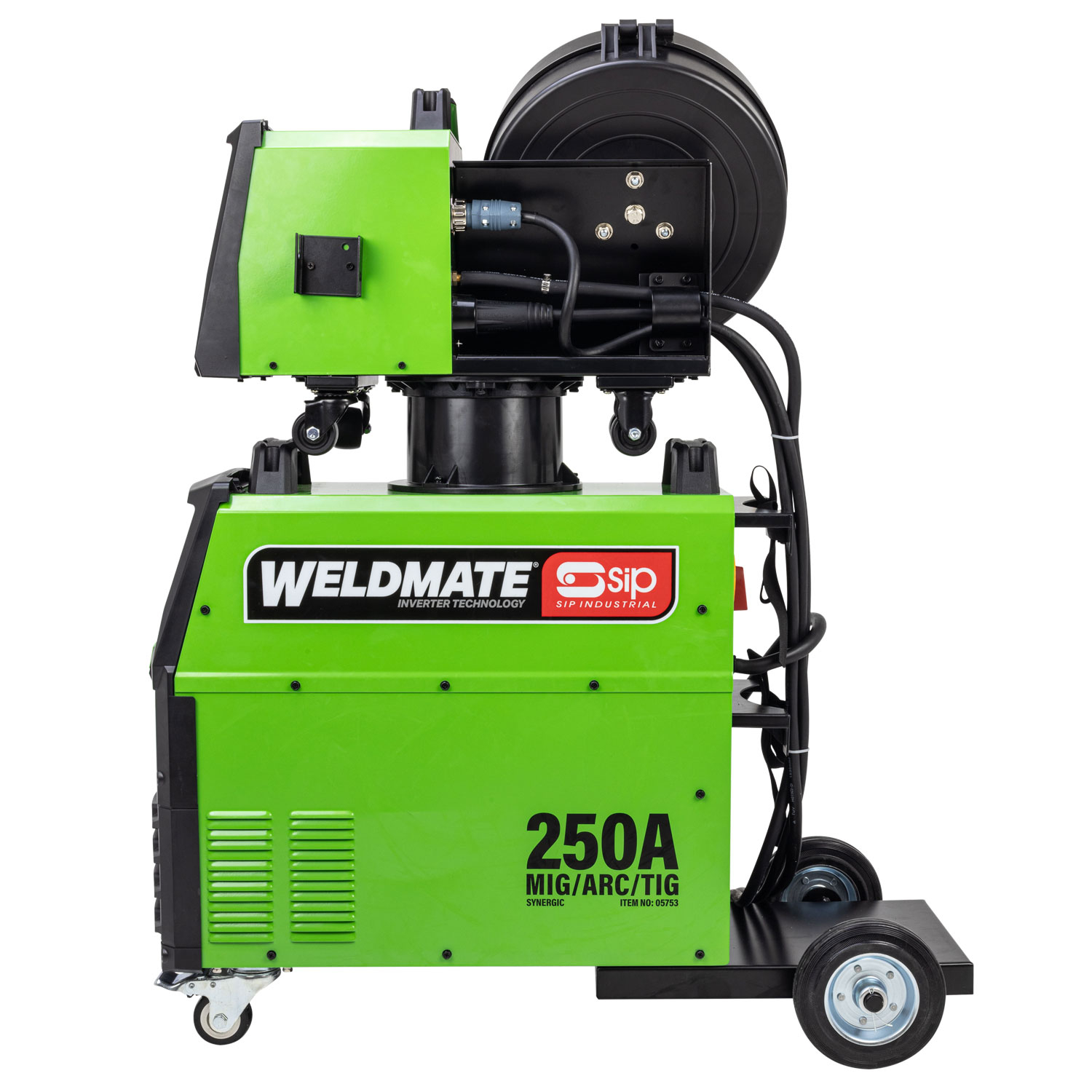

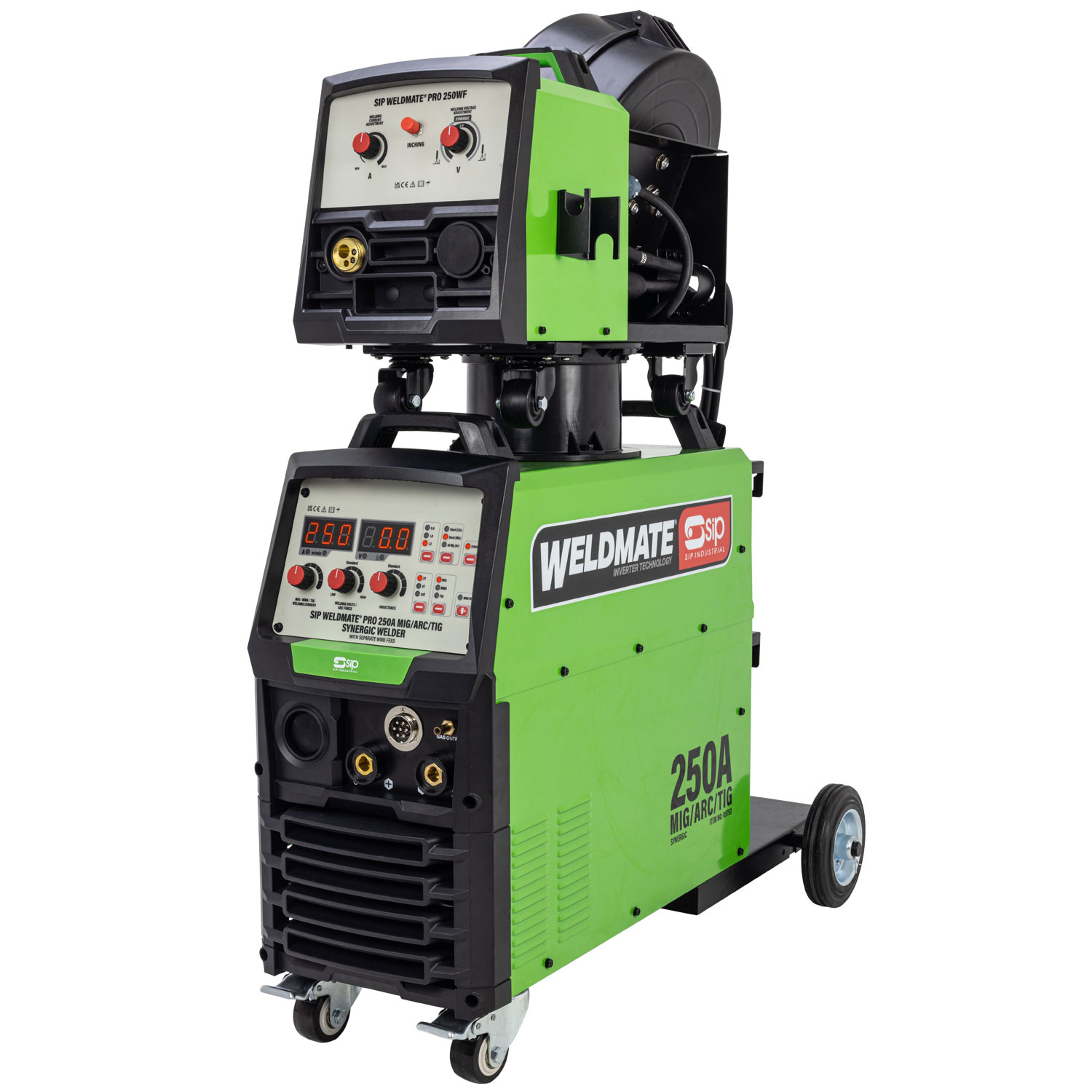

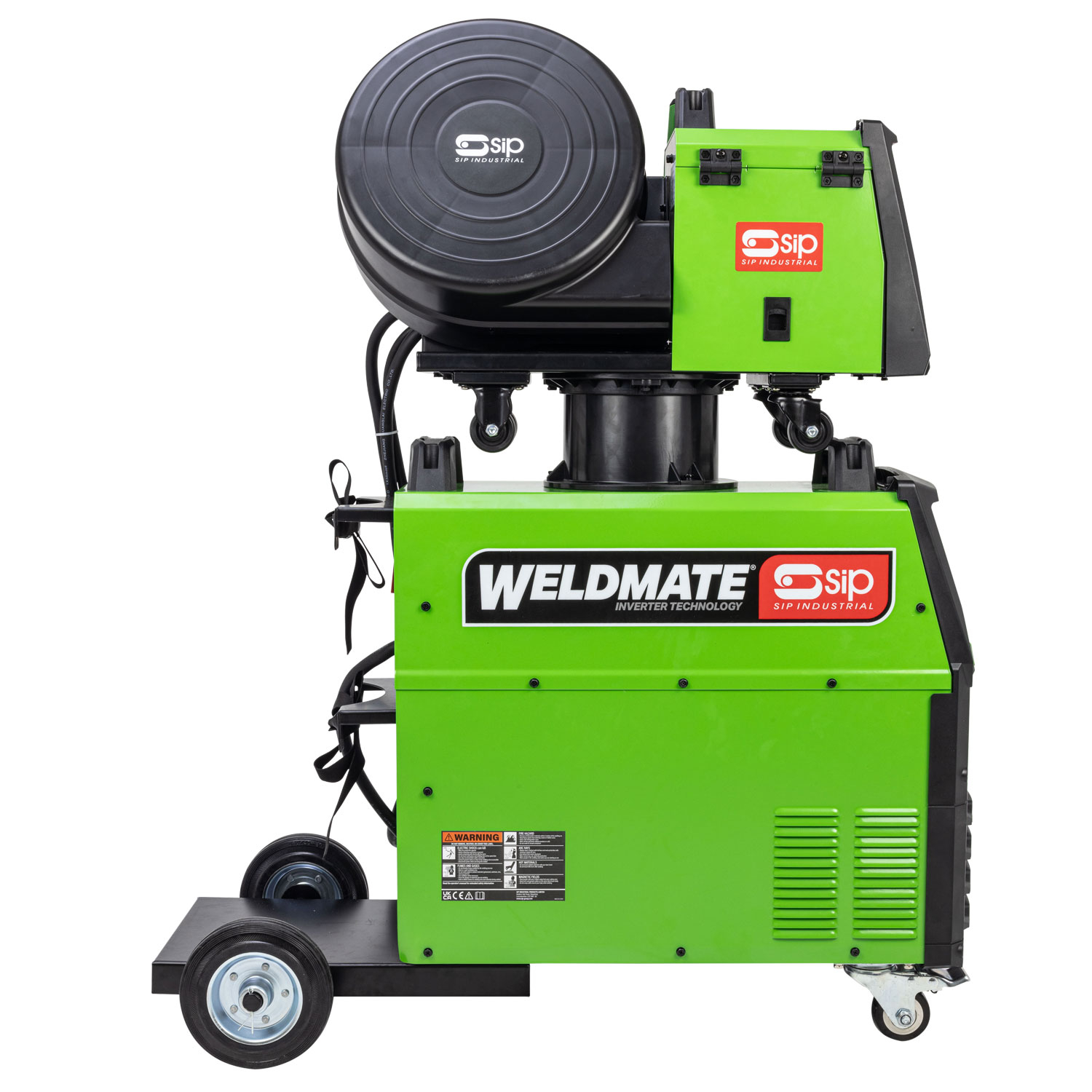

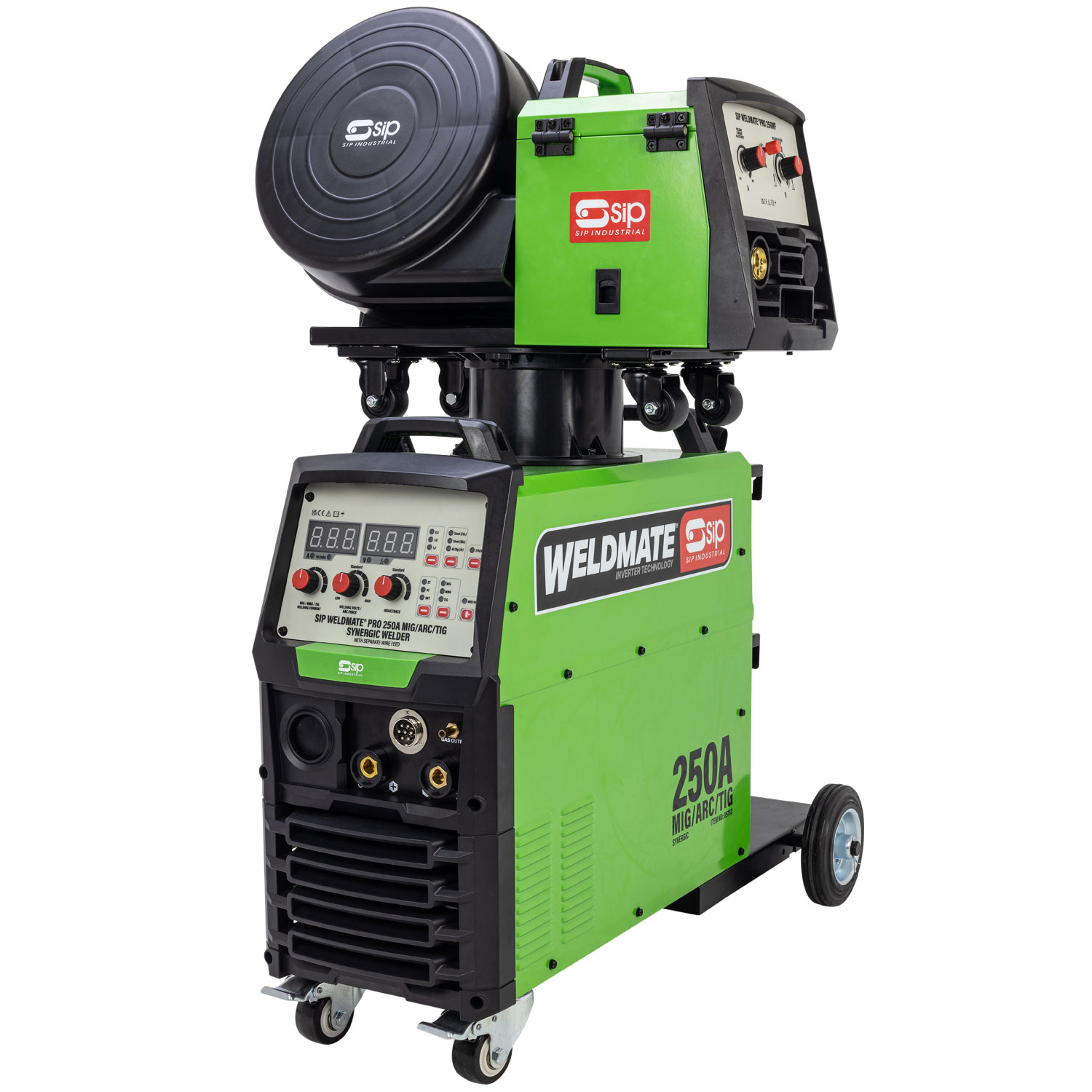

SIP WELDMATE PRO 250A MIG/ARC/TIG Synergic Welder with Separate Wire Feed - Code 05753

The SIP WELDMATE® PRO 250A MIG/ARC/TIG Synergic Welder with Separate Wire Feed is a multi-process inverter welder specifically designed for use in professional fabrication workshops.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.

Applications & uses: Ideal for use in professional fabrication workshops. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding and performs flux-cored welding. Ideal for mild steels and welds *stainless steel and **aluminium. *Using stainless steel welding wire. **Using aluminium welding wire and pure Argon gas.

SIP 2-Year Standard Silver Warranty* |

MULTI-PROCESS MIG/ARC/TIG WELDER FOR GREATER FLEXIBILITY AT HIGH DUTY CYCLES

• Duty cycle @ 20°C: 250A @ 80% (MIG/ARC/TIG).
• Suitable for aluminium MIG welding with use of supplied separate torch liner.

PURE SYNERGIC CONTROL ALLOWS USERS TO ADJUST THE WELDING VOLTAGE & WIRE FEED SPEED AUTONOMOUSLY

• This easy-to-set function simplifies the welding process at skill levels, helping to achieve more consistent and higher quality welds.

SEPARATE WIRE FEED UNIT FEATURES POSITIVE 4-ROLL CAST ALUMINIUM WIRE FEED DRIVE WHICH HANDLES HIGHER FEED SPEEDS TO ENSURE A STABLE & CONSISTENT FLOW OF WIRE THROUGH THE MIG TORCH

• The separate wire feed unit also allows for greater work area coverage and application versatility and is wheel-mounted for easy mobility.
• Welding output, synergic control settings and wire inching can all be operated from the unit whilst wearing welding gauntlets. A full wire enclosure also protects the welding wire reel.
• The 4-roll configuration provides positive wire control to prevent slippage, which maintains higher feed speeds for constant deposition rates.
• Supplied with interchangeable feed rollers for solid and flux-cored wires.
• Compatible with welding wire spools of 5kg and 15kg.
• Fitted with a welding torch Euro connector and supplied with a 3mtr Euro MIG torch.

INTUITIVE CONTROL PANEL TO SELECT BETWEEN WELDING PROCESSES & SETTINGS

• This also includes MIG torch settings, gas type and wire size selector, 'Synergic' control function, 'Inductance' to control and reduce weld spatter, 'Wire Inch' to feed torch wire without using gas, and 'ARC Force' for fine arc adjustment.
• Infinitely variable dials offer a smoother stepless output adjustment for higher quality and easy-to-control welding.
• Twin LEDs display welding outputs and synergic control metrics.

WHEEL-MOUNTED DESIGN FOR MOBILITY AROUND THE WORK AREA & SUITABLE FOR GAS CYLINDERS UP TO 99KG

• Fitted with lockable front castors and large rear wheels for easy movement around the work area.
• Includes retaining straps for securing gas cylinder to the rear of the welder.
• Fitted with rotary power switch.
• High-quality finish is resistant to work area damage.

ACCESSORIES INCLUDED

• Supplied with 3mtr Euro MIG torch, electrode lead, earth lead, gas hose with clamps, contact tips and wire feed rollers. Also includes wire liner for welding aluminium.

Technical Information
