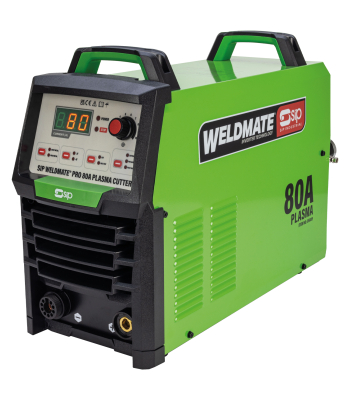

SIP WELDMATE PRO 80A Inverter Plasma Cutter - Code 05689

The SIP WELDMATE® PRO 80A Inverter Plasma Cutter is a powerful and versatile inverter plasma cutter designed for use in professional fabrication, engineering workshops and agricultural settings.

Easy to operate and safer than cutting with a naked flame, this powerful and compact inverter plasma cutter has a cutting capacity up to 30mm thickness. It also features a sheet and mesh metal material type selector for added versatility and an adjustable timer for pre and post air for cleaner cutting performance.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this plasma cutter features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

Applications & uses: Ideal for use in professional fabrication and engineering applications. Suitable for agricultural workshops. Perfect for steelwork fabrications such as chassis assemblies, steel enclosures and ducting. Suitable for repair and maintenance of gates and railings. Perfect for mild steel, stainless steel, aluminium, brass and copper.

What's in the box?: 1x SIP WELDMATE® PRO 80A Inverter Plasma Cutter (400v/16A), 1x 3mtr plasma torch (supplied with additional electrodes, nozzles, ceramic shields and torch spanner), 1x plasma torch straight cutting guide, 1x adjustable air regulator, 1x 3mtr earth lead.

SIP 2-Year Standard Silver Warranty* |

POWERFUL INVERTER PLASMA CUTTER FOR SUPERIOR METAL CUTTING AT HIGH DUTY CYCLES

• Duty cycle 20°C: 80A @ 100%.

VERSATILE CUTTING CAPACITY FOR ACCURATE CUTTING IN A VARIETY OF APPLICATIONS, INCLUDING PROFESSIONAL FABRICATION & AGRICULTURAL WORKSHOPS

• Cutting capacity of 20mm quality and 30mm severance.
  • Professional fabrication and engineering applications designed for shaping and cutting metalwork fabrications such as chassis assemblies, steel enclosures and ducting.
  • Agricultural workshops: repair and maintenance of gates and railings.

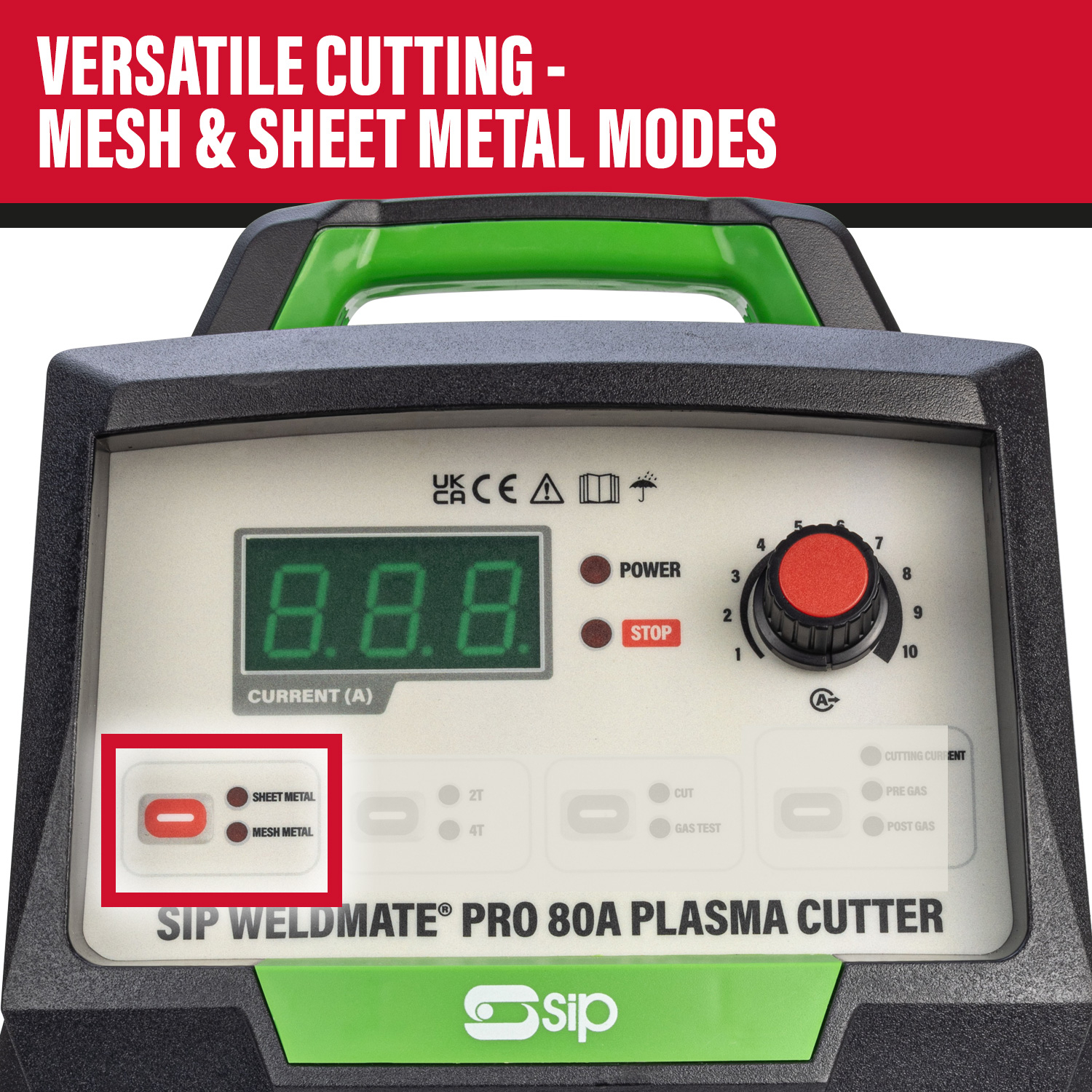

• The material type selector offers added versatility when cutting sheet or mesh metals.
• Sheet metal function delivers a continuous plasma arc for smooth and precise cutting, while the mesh metal function initiates a pulsing plasma arc effect which helps to achieve a continuous cutting action of equal precision.

SUPPLIED WITH AN ADJUSTABLE AIR REGULATOR TO ENABLE THE CONSISTENT SUPPLY OF COMPRESSED AIR PRESSURE REQUIRED TO OPERATE THE PLASMA CUTTER

• Compressed air requirement of 87psi (6bar). The plasma cutter will operate effectively from an air compressor with a 100ltr air receiver or above.
• Air check function clears the torch of any debris or residual moisture, helping to maximise the stability of the plasma arc.

ADJUSTABLE PRE & POST AIR FUNCTION WITH TIMER FOR IMPROVED COOLING & PLASMA ARC STARTING TO ENHANCE CUTTING QUALITY

• 'Pre' and 'Post' air settings maintain effective cooling of the plasma torch consumables, preventing them from overheating and extending their life.

INCLUDES AN SEPARATE 3MTR PLASMA TORCH WITH EURO CONNECTOR & SAFETY GUARD TO PREVENT ACCIDENTAL STRIKE-UP IF DROPPED

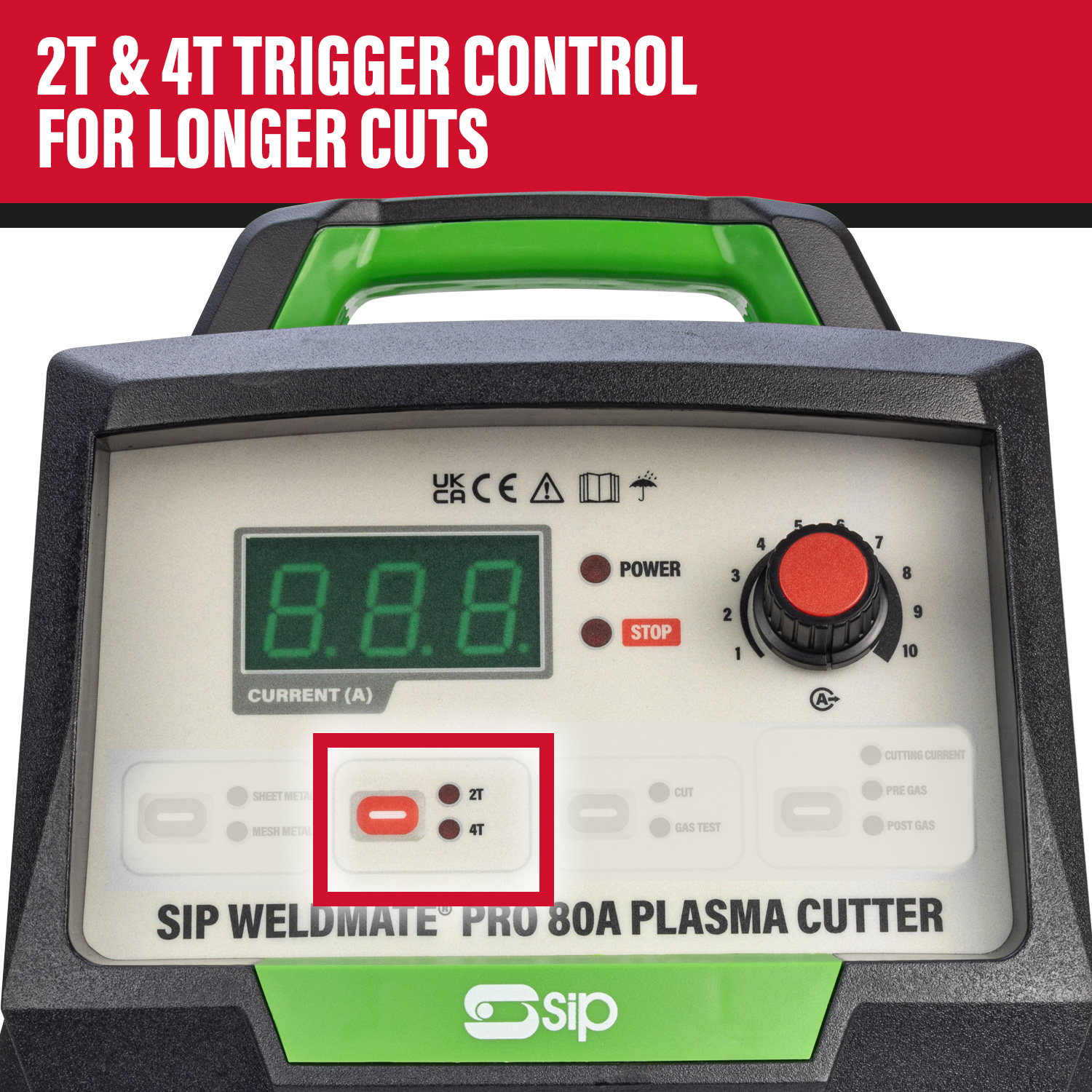

• From the control panel, two plasma torch modes can be selected for either fully manual (2T) or semi-automated (4T).
• Fully manual (2T) maintains the cutting arc while the trigger is held down. Ideal when performing shorter cuts.
• Semi-automated (4T) maintains the cutting arc by press and release of the trigger. This means the trigger does not need to be held continuously for more efficient and comfortable operation. Ideal for applications which require longer cuts.

AN INFINITELY VARIABLE DIAL DELIVERS SMOOTHER & MORE CONTROLLABLE OUTPUT ADJUSTMENT FOR CLEANER CUTTING WITH MINIMAL SPATTER

• An intuitive control panel with LED display makes it easy to set the output power and select the plasma cutter functions.
• By fine-tuning the output power, users will experience greater precision and cutting control.

METAL CASING WITH HEAVY-DUTY CARRY HANDLES & HIGH-QUALITY FINISH RESISTANT TO WORK AREA DAMAGE

• The compact and lightweight design ensures easy work area movement.

Technical Information
