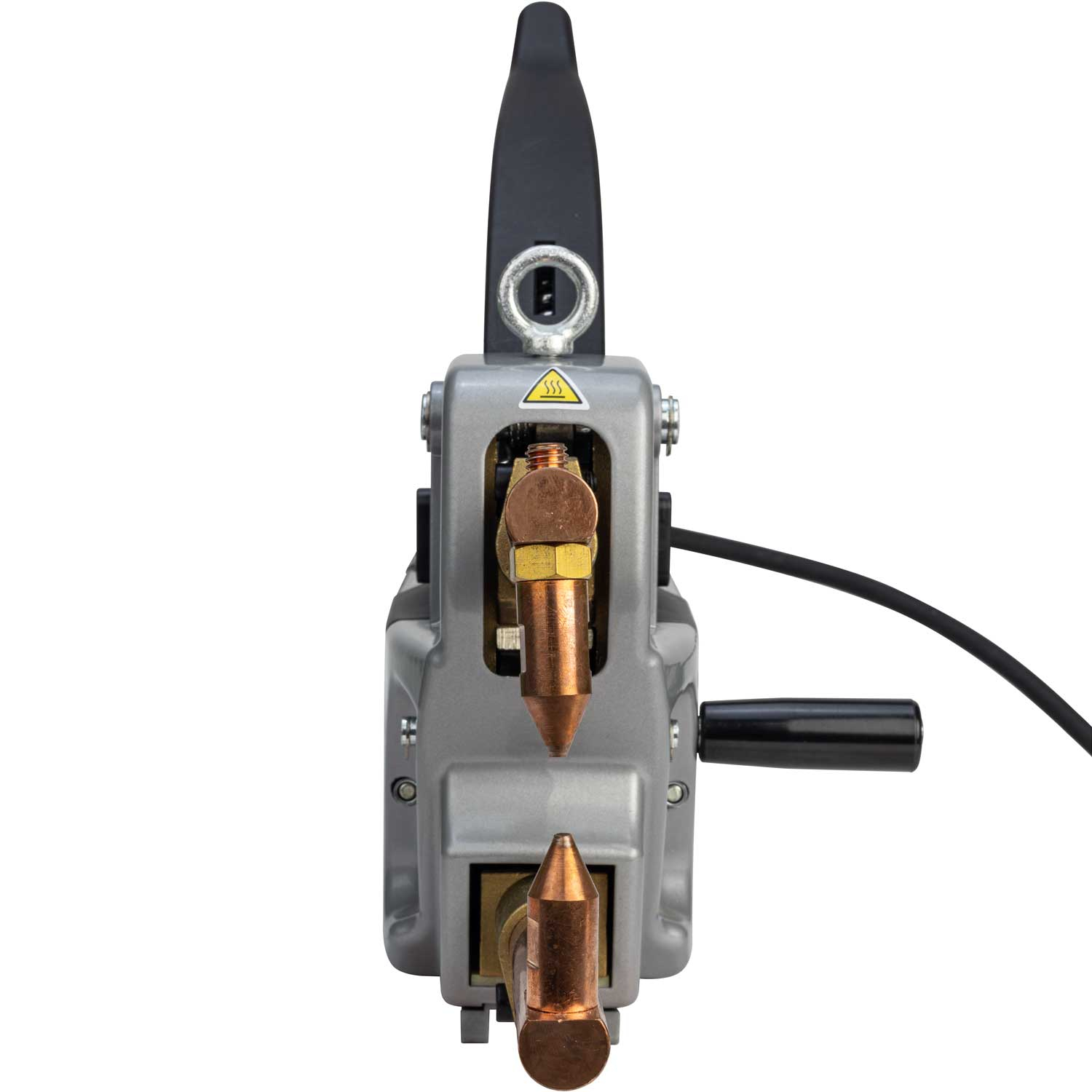

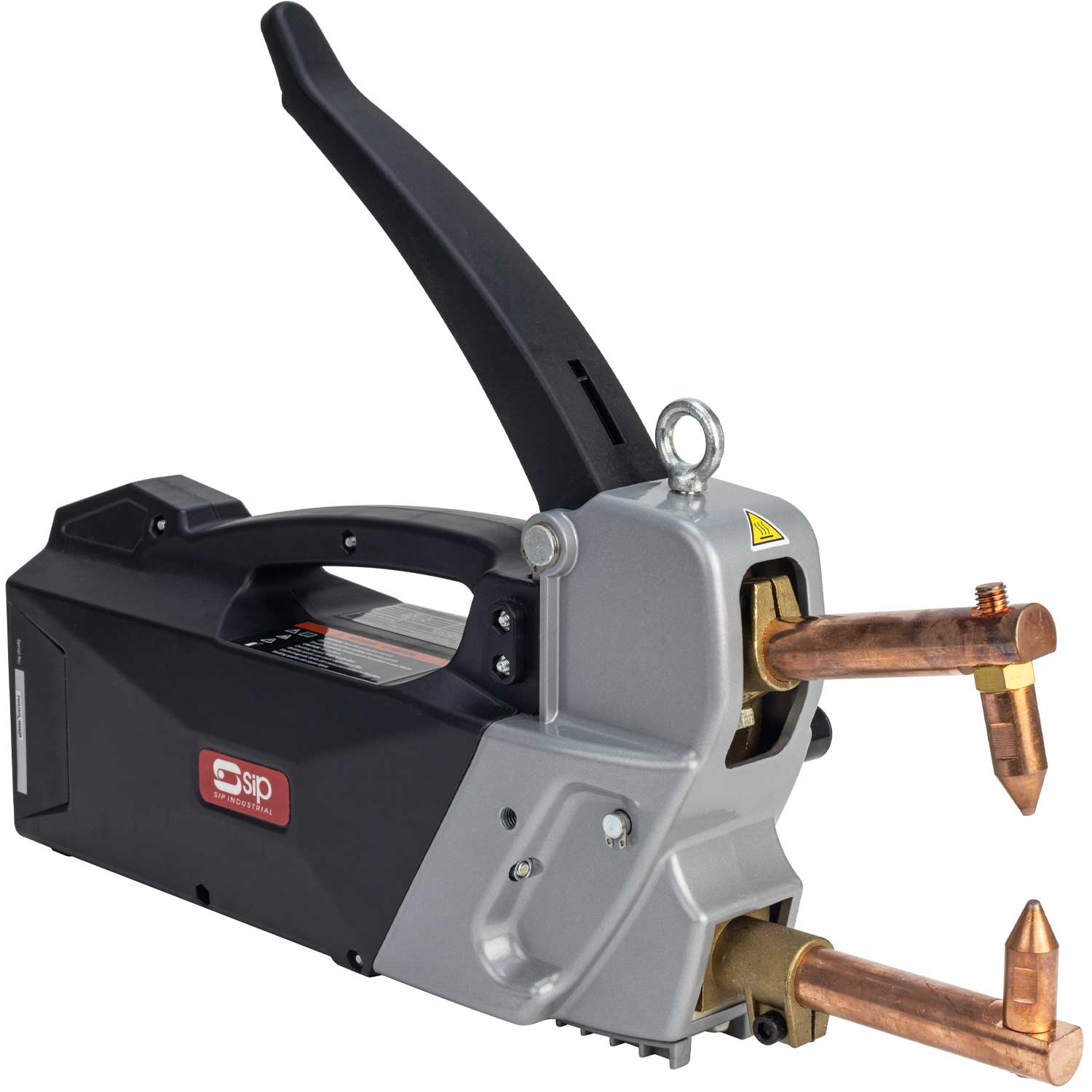

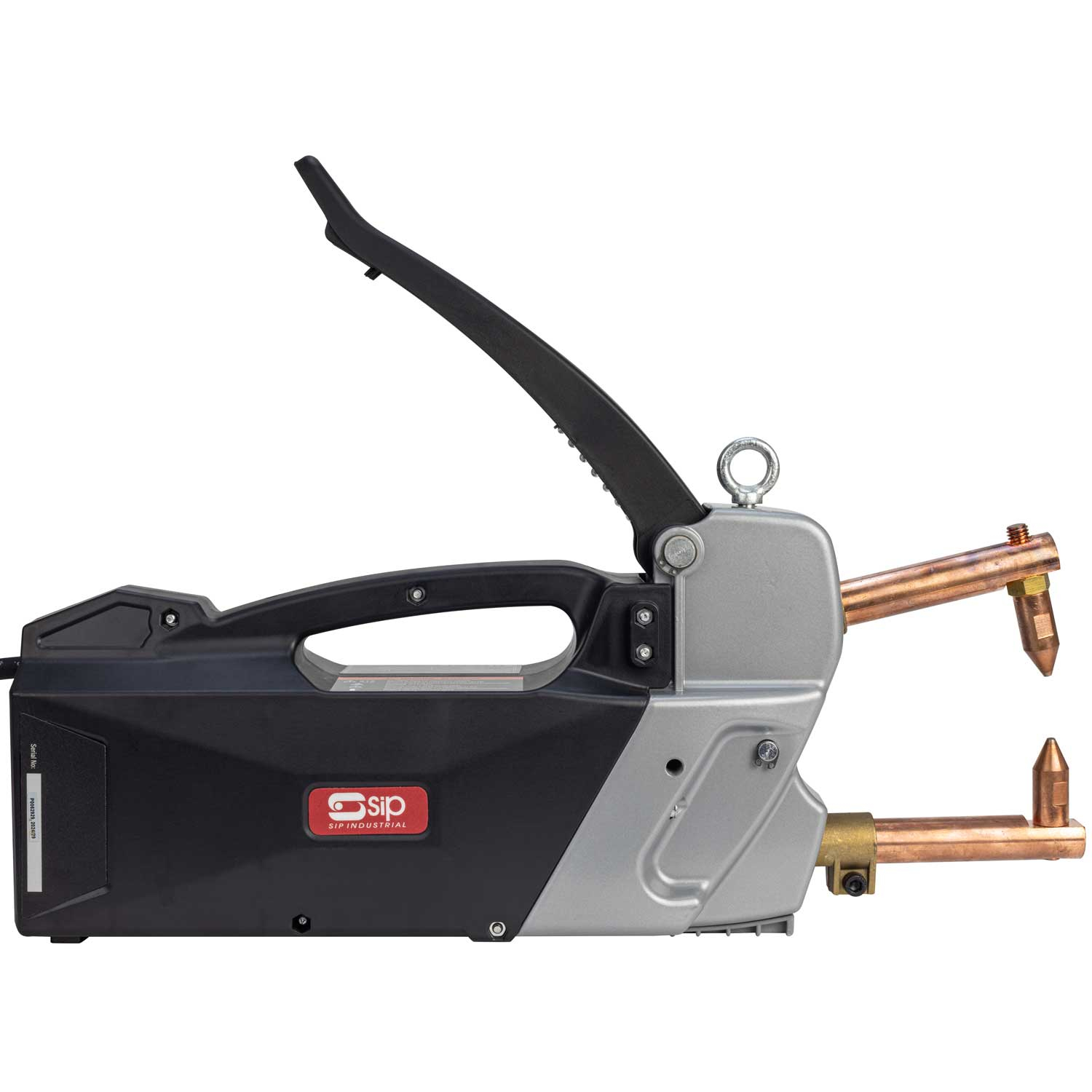

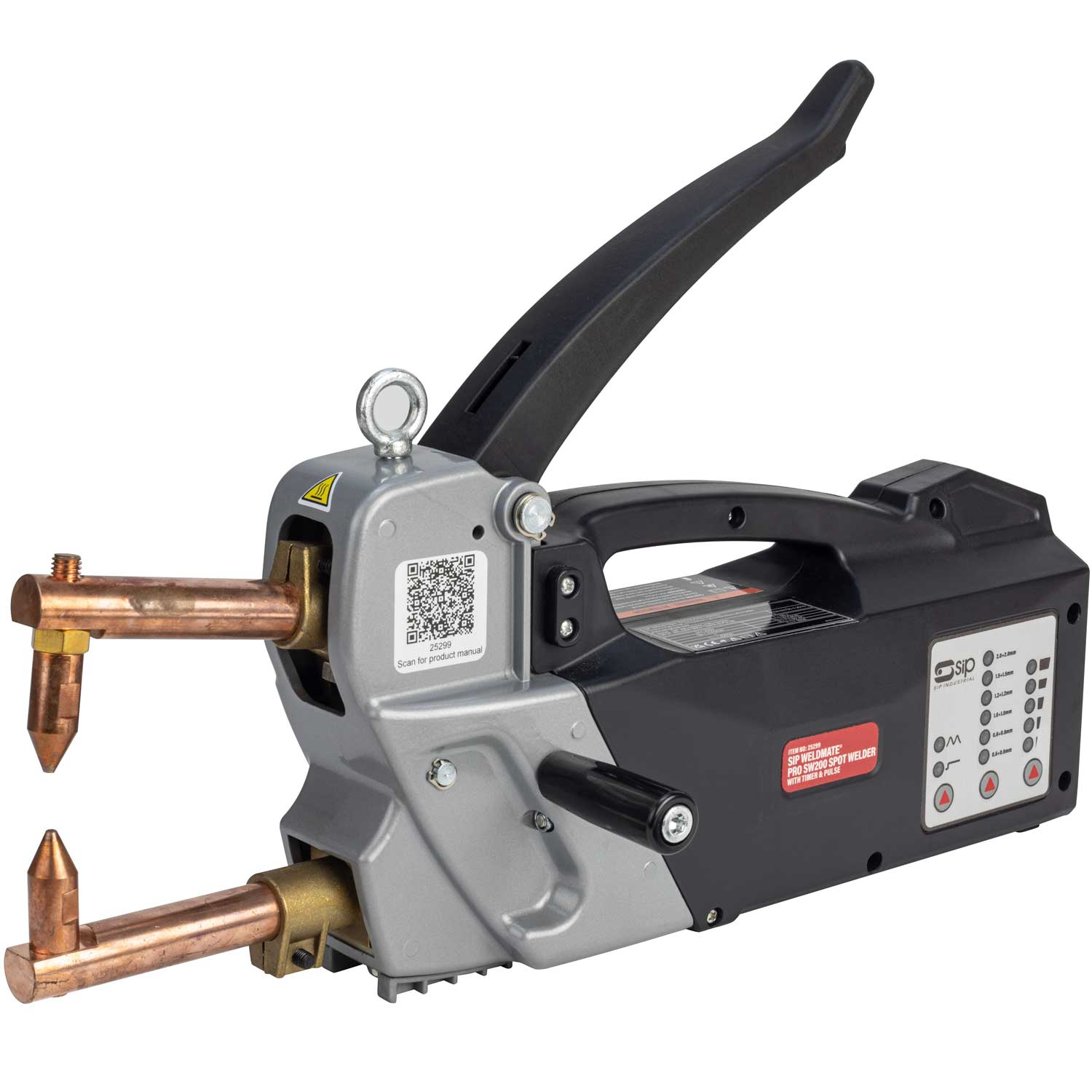

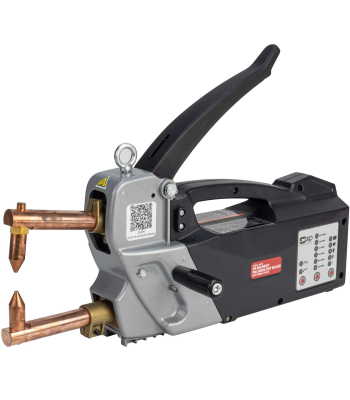

SIP WELDMATE PRO SW200 Spot Welder with Timer & Pulse - Code 25299

The SIP WELDMATE® PRO SW200 Spot Welder with Timer & Pulse is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.

Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 2mm - 2mm and features a microprocessor-controlled timer and pulse functions for consistent welds and enhanced penetration using a variety of material types.

For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.

Applications & uses: Perfect for automotive and garage environments. Ideal for sheet metal welding applications. Suitable for fabrication workshops. Suitable for mild steel, stainless steel and galvanised steel.

What's in the box?: 1x SIP WELDMATE® PRO SW200 Spot Welder with Timer & Pulse, 2x 20mm straight electrodes, 1x side handle with fixing bolt and hex key. User manual available via QR code sticker applied to product.

SIP 2-Year Standard Silver Warranty* |

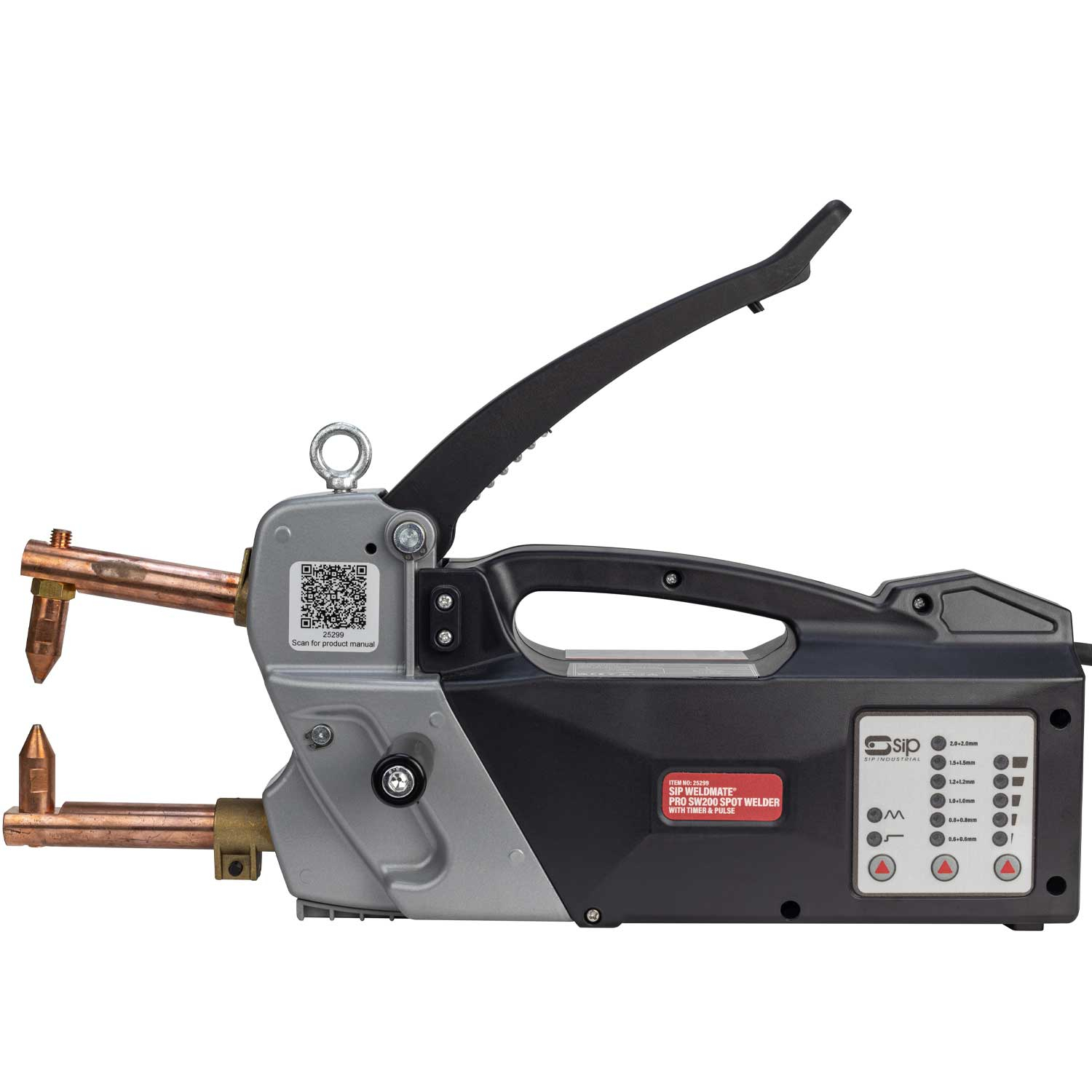

INTUITIVE SOFT TOUCH CONTROL PANEL FEATURES ADJUSTABLE WELDING THICKNESS, TIMER & PULSE FUNCTIONS FOR ROBUST & REPEATABLE WELDING CAPABILITY IN A VARIETY OF APPLICATIONS

• Maximum welding thickness of 2mm - 2mm with sufficient welding current output to achieve 4 welds per minute.
• A microprocessor-controlled timer function allows settings of 80-1800ms for precise and consistent welds.
• Pulse function allows spot welding of coated materials including Zintec, galvanised and nickel-plated. By applying a short burst of additional heat into the material, the welder can penetrate the coating before completing the weld.
• Suitable for mild steel, stainless steel and galvanised steel.
• Offers strong localised welds with minimal heat distortion to the surrounding sheet metal.
• Easy-to-use lever smoothly engages welding electrode tips for accurate welding performance.
• Supplied with a set of replacement 20mm copper/chrome electrodes.

ADDITIONAL ELECTRODES & BODYWORK KITS AVAILABLE FOR GREATER APPLICATION VERSATILITY

• These easy-to-fit accessories are sold separately as individual parts or available as a bodywork kit.
• The 20mm electrode arms offer added dexterity for a variety of welding applications
  • 25413 SIP Spot Welder 120mm Arms with Straight Electrodes (⌀ 20mm)
  • 25412 SIP Spot Welder 120mm Arms with Offset Electrodes (⌀ 20mm)
  • 25414 SIP Spot Welder 350mm Arms with Offset Electrodes (⌀ 20mm)
  • 25410 SIP Spot Welder 350mm Restricted Access Arms with Offset Electrodes (⌀ 20mm)
  • 25411 SIP Spot Welder 120mm Arms with Swan Neck Electrodes (⌀ 20mm)
  • 25425 SIP Spot Welder 5pc Bodywork Kit (⌀ 20mm) (for 25299)

Technical Information
