Product ID: LL100N
Related Products: See all related products
Manufacturer: Spectra
List Price: £450.00 (£540.00 inc VAT)
Web Price: (£324.99 ex VAT) £389.99 (inc VAT)
389.99 2025-01-19Rating: 5/5 based on 1 review(s).

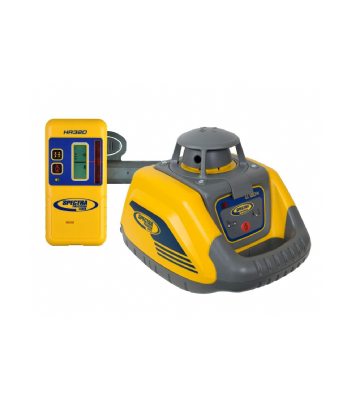

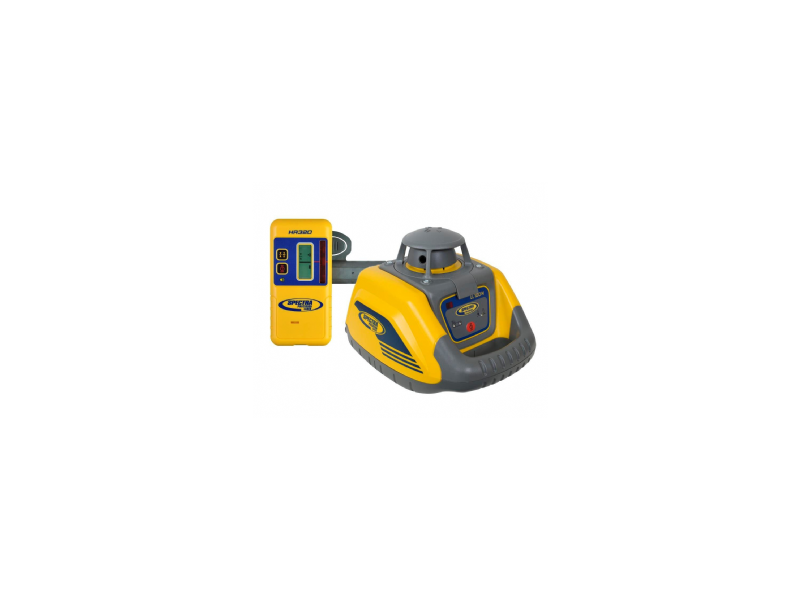

The Spectra Precision LL100N is a fully automatic self-levelling laser level for horizontal levelling operations. Optional Extra Tripod & 5m Staff.

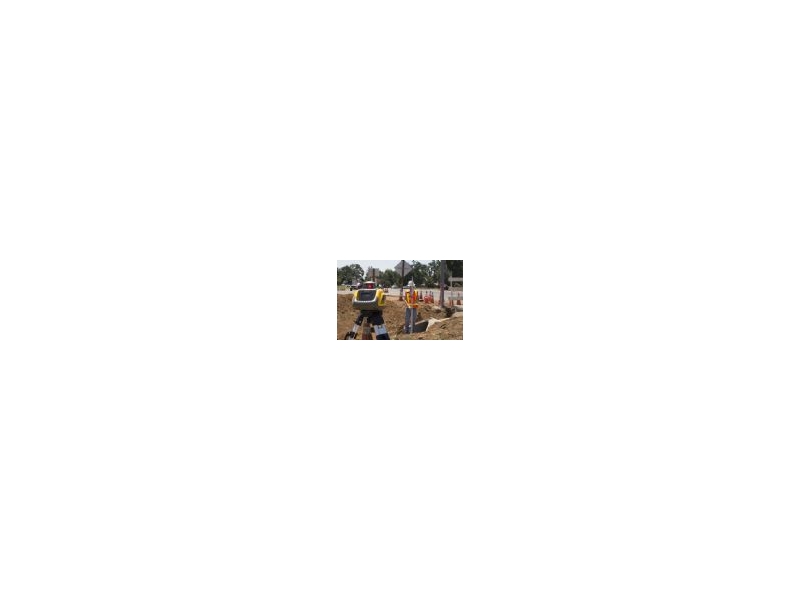

Designed for outdoor use with a laser receiver which locates the laser height.
Simple to use, just switch the instrument on, and it will level itself and run.
The Spectra LL100N can be used with the optional remote control which sets the laser to a slope for applications such as drainage.
LL100N Specification
| Operating Range with HR320 Receiver | 300m Diameter |
| Levelling Accuracy | +/- 3mm per 30m |
| Self-levelling Range | +/- 5 degrees |
| Water Resistant | Yes, to IP54 rating |
| Laser Rotation Speed | 600 RPM |
| Removable Rotor Guard | Yes |
| Levelling Control | Automaic Electronic Self-levelling |
| Slope Control | With Optional Remote Control |
| Major Distrubance Alert | Yes |
| Batteries | 2 x 1.5V Type D |
| Battery Life | 80 Hours |
| Warranty | 1 year |
HR320 Laser Receiver Specification
| Operating Range (Radius) | 200m |
| Laser Receiver Window Height | 50mm |
| Number of channels | 5 |
| Acceptance Angle | 90° |
| On-Grade Sensitivities | Fine 2.0mm, Course 6.0mm |
| Batteries | 2 x 1.5V Type AA |
| Battery Life | 70 Hours |
| Sounder | Low: 80dBA. High 100 dBA |
| Auto shut-off | 30 minutes |
| Dimensions | 163 x 74 x 29mm |
| Lasers Detected | Red and infra-red laser |
Brand: Spectra
Identifier: LL100N
5/5
Product was as advertised and works well. It arrived promptly. Good service.
