Specifications

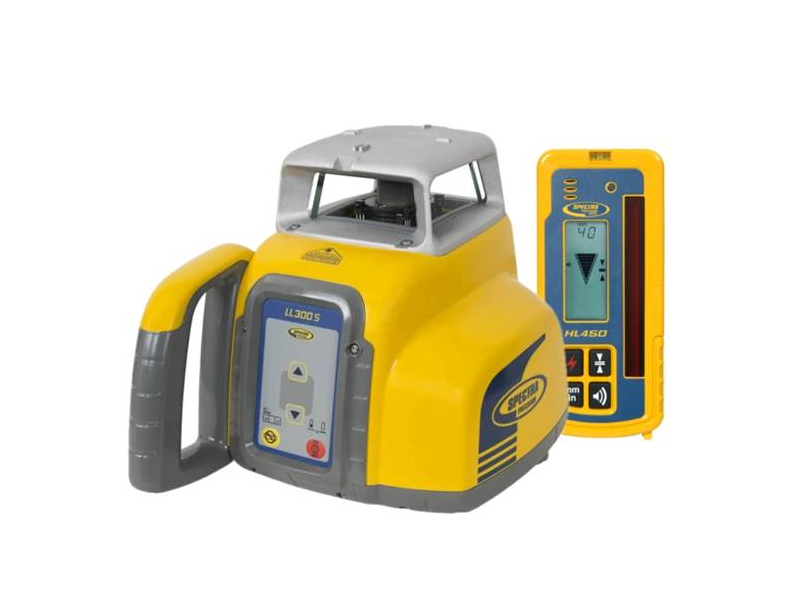

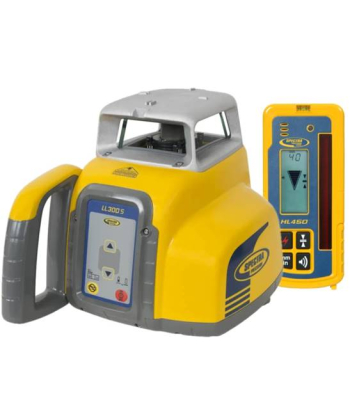

LL300S Laser Specifications

• Laser Source: 650 nm, Class 2, <3,4mW
• Laser Accuracy: ±1.5 mm at 30m, (±1/16 in at 100 ft)
• Laser Operating Range: 800m diameter (with detector)
• Remote Control Operating Range (RC402N): 100m (radio link)
• Self-leveling Range: ±5 degrees
• Compensation Method: Electronic self-leveling
• Drop Height on Concrete Performance: 1m (3ft)
• Single Axis Manual Slope Mode: Yes (with self-levelling mode on the second axis)
• Out-of-level Warning: Rotor stops, red out-of-level HI/MAN-LED flashes
• Power Source: 4 x D-cell NiMH or alkaline batteries
• Battery Life: Rechargeable 47 hours, or Alkaline 60 hours
• Battery Status LED: Flashing red LED
• Rotation Speed: 600rpm
• Tripod Mount (Horizontal and Vertical): 5/8” x 11
• Operating Temperature: -20 °C to 50 °C
• Storage Temperature: -20 °C to 70 °C
• Water and Dust Protection: Yes, IP66
• Size: 27.2L × 19.7W × 20.1H cm
• Weight: 2.7 kg

HL450 Detector Specifications

• Kit includes HL450 Detector & Bracket:
• Digital Readout Units: mm, ft, in, fractions
• Reception Height: 102 mm (pick-up window)
• Three On-grade Sensitivities: - Fine ~1/16 in (1 mm) - Medium ~1/4 in (5 mm) - Calibration Mode ~1/64 in (0.1 mm)
• Battery Life (2 x AA): 70+ hrs
• Automatic Shut-off: 30 minutes
• Operating Temp.: -20°C to 50°C
• Dust & Waterproof: Yes IP67
• Weight without Clamp: 0.37 kg

Technical Specification

Accuracy: +/- 1.5mm @ 30 metres, max. operating diameter 800m (400m either side of the instrument).
An accuracy of +/- 1.5mm @ 30 metres is equivalent to 0.05 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Dual Grade facility: Both X & Y axis can be set to give a maximum fall of up to 1.1m at 10m distance away. (ie. 1 in 9 & 11.1% grade)

nb. The User can single grade from the laser's keypad or for dual-grading applications, the optional radio remote, (RC402N) is required.

Example Usage

Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized job.

Basic slope work such as driveways and ramps

Excavations, digging footings and septic tanks

Optional Extras

The Spectra LL300S Premium Kit also includes the following accessories:

4m Telescopic Levelling Staff (Model: TLS4S)

(Colours / Brand may vary)

• 4m, 5-section, Telescopic Levelling Staff.
• Five robust aluminium sections with abrasion proof scale.
• Closed length height 970mm, extending to maximum height of 4m.
• Automatic locking buttons when extended.
• Millimetre scale on back and E-graduations (1cm) markings on front
• Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.
• Red / Black coded front sections.
• Accepts all Laser detector mounting brackets.
• Removable, rear-mounted circular Bubble Level.
• Carry sleeve.
• Height: 0.97m closed length to extended max 4m.
• Weight 1.15kg.

Surveying Tripod (Model: S-LAT)

(Colours / Brand may vary and may have laser-level.co.uk branding on tripod leg)

• Maximum 1.5m height.
• Robust aluminium tripod.
• Extending legs with quick-release, toggle clamp adjustment.
• Flat top, mounting head.
• Head size 130mm
• 5/8 inch x 11 thread.
• Closed length 0.925m
• Max. Opened height 1.5m approx.
• Weight: 3.4kg
• Carry strap
