Spit ISO Universal Insulation Anchor 95mm (per 200) 057611

PRODUCT DESCRIPTION

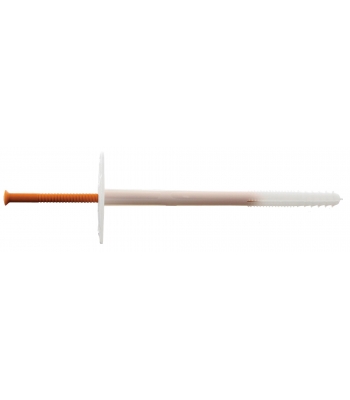

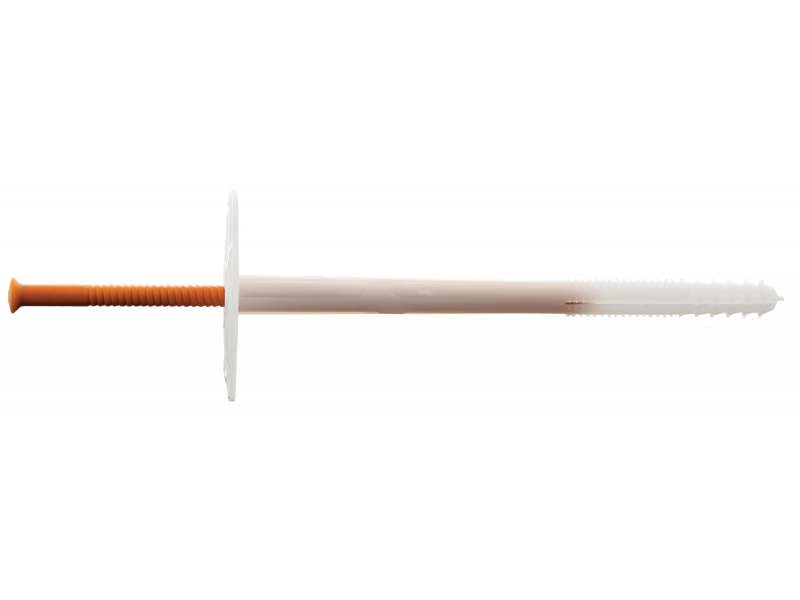

Hammer-in anchor with plastic nail for fixing expanded polyester (eps) & mineral insulation boards in etics system

PRODUCT PROMISE

Expansions hit anchor perfectly suited for EPS insulation

FEATURES AND BENEFITS

High pull-out values: 150 kg into concrete for optimal anchor consumption per m2
Safe ETICS fixing
Optimum thermal transmittance < 0,002 W/K
Low embedment: 25 mm
Expansions hit for quick and easy installation
Pre-assembled anchor for faster installation
Special plate surface for optimum render adhesion
Suitable for thick insulation boards
Rigid, watertight glass fibre nail
Sealing ring prevents passage of moisture through anchor body

Specification

Diameter Anchor	10 mm
Drill Hole Diameter	10 mm
Anchor Length	95 mm
Head Type	Washer head
Head Diameter	60 mm
Min. Thickness Base Material	100 mm
Embedment Depth	30 mm
Min. Embedment Depth	30 mm
Max. Embedment Depth	30 mm
Min. Fixing Thickness	45 mm
Max. Fixing Thickness	65 mm
Min. Edge Distance	100 mm
Min. Fixing Distance	100 mm
Min. Drilling Depth	50 mm
Anchor Thermal Properties	0.001
Anchor Hole Diameter	10 mm
Base Material Colour	PURPLE

Brand: Spit

Identifier: 057611
