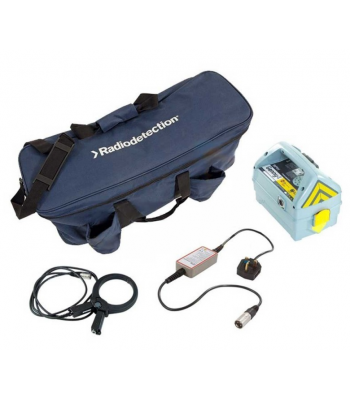

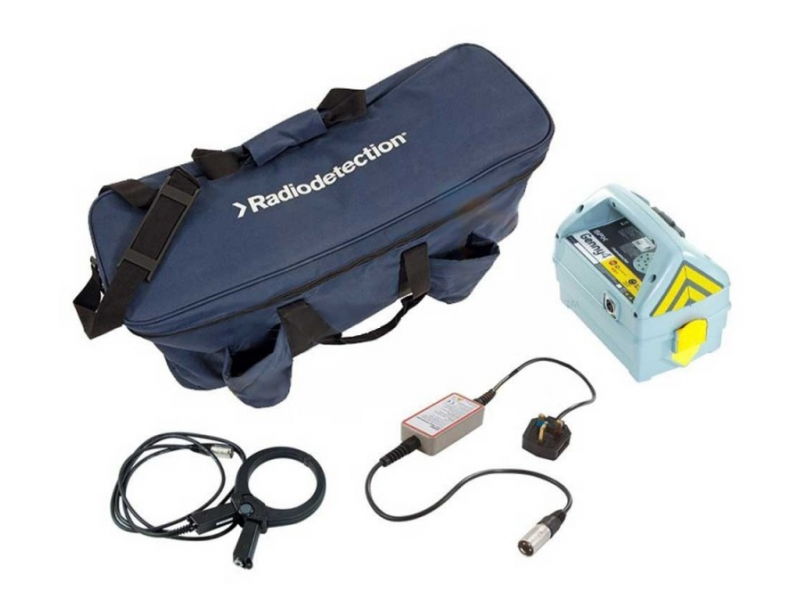

SPX Radiodetection Genny4 Electrician's Accessory Pack - Code 10/ELECPACK4-UK

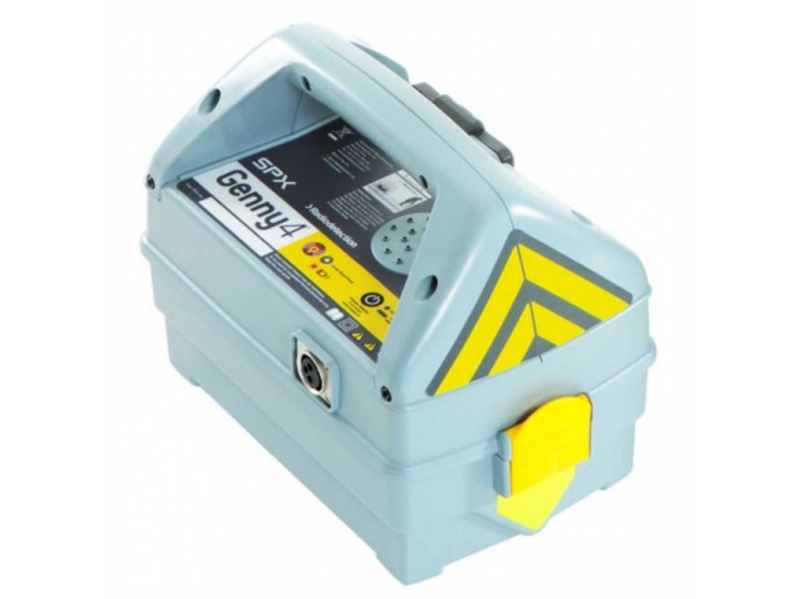

The Radiodetection Genny4 Signal Generator provides simultaneous dual-frequency locate signal output. Alongside the familiar 33kHz locate signal for general purpose locates, the Genny4 transmits a second higher frequency designed to facilitate location of small diameter cables such as telecoms and street lighting, including spurs. For tricky locates, the power boost function enables the locate signal to travel further and deeper, and couple onto utilities more easily.

C.A.T4 and Genny4 have been designed to increase the likelihood of detecting smaller cables such as telephone lines or CATV, particularly service drops from the road or pathway to a property. The Small Diameter Locate frequency transmitted from the Genny4 is designed to ‘jump’ onto these cables.

The C.A.T4 and eC.A.T4 models, the Genny4 Signal Generator, and their accessories are approved for use on the UK’s national rail infrastructure, managed by Network Rail. C.A.T4 and Genny4 are compatible with all C.A.T3 and Genny3 accessories.

Features

• Generation of standard 33kHz signal output.
• Small Diameter Locate function for location of telecoms and street lighting
• Adjustable Signal Boost for location at greater distances and depths.
• Accessory connection socket allows different accessories to be equipped to the unit.
• Built-in loudspeaker and accessory storage tray.
• Portable design with handle for use out in the field.
• Built for use with the CAT4 range of cable avoidance tools.

Specification
