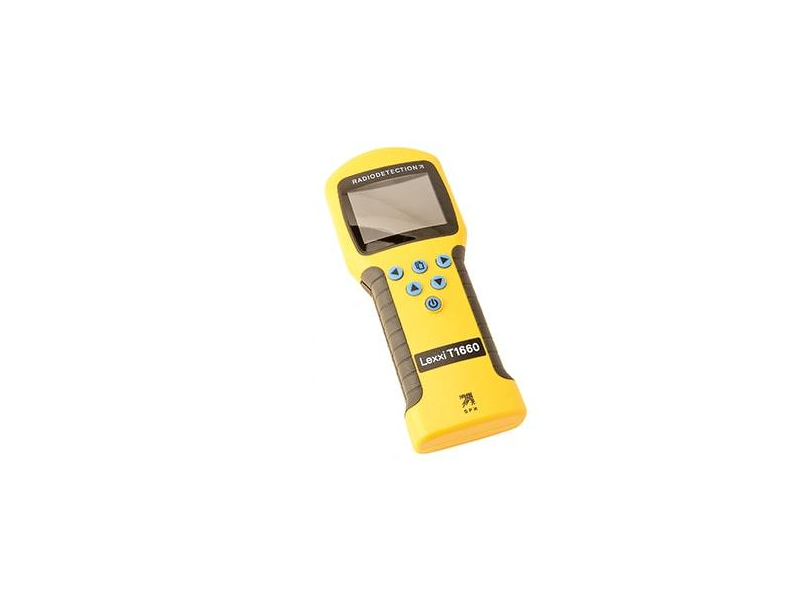

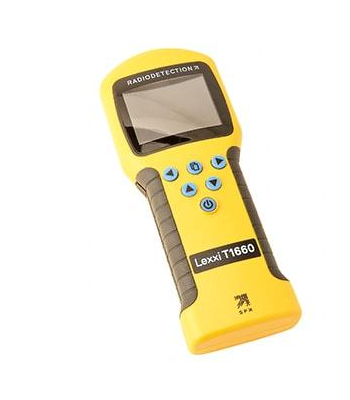

SPX Radiodetection Lexxi T1660 Handheld Cable Fault Locator includes Connection Cables & Carry Bag - Code 10/T1660

Radiodetection’s Lexxi T1660 provides an unrivalled combination of performance, usability and economy. Radiodetection has created Lexxi T1660 by taking the easy-to-hold ergonomics familiar to users of the Riser Bond Model 1550 and Bicotest Lexxi T810 and installing a unique TDR engine and a 3.5” color back-lit display.

The result is a cable tester whose 1% distance accuracy and resolution gives technicians the tool they need to find faults quickly and accurately. Added to this is the Lexxi T1660’s great value that allows more technicians to be equipped.

The Lexxi T1660 is suitable for analysing all metallic cables consisting of at least two metallic elements, one of which can be the armouring or the screen. Cable types include CATV, twisted pair telecom, Ethernet and even LV power cables. The Lexxi T1660 is shipped with a set of 100Ω crocodile clip Twisted Pair connection cables as standard. A range of optional plug-in modules make it adaptable to the requirements of a wide variety of industries and applications, with the Blocking Filter module allowing safe analysis of live 3-phase mains cables. Radiodetection’s Lexxi T1660 offers innovation and economy, enabling a step-change in productivity.

• 1% accuracy
• 1% resolution
• 6km maximum range
• 3.5” 256 x 328 pixel color display

Standard Accessories, included with Lexxi T1660

Connection cables, Twisted Pair, Alligator Clips - 10/T1660-TP-ALLIG

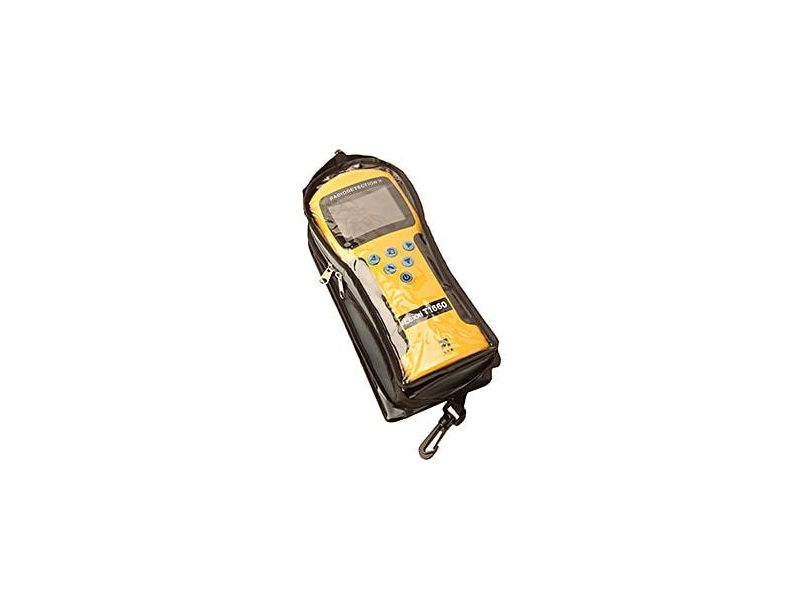

Lexxi T1660 bag, clear cover - 10/T1660-BAG

Optional Plug-In Module Accessories

Mains Blocking Filter, 25Ω, Cat IV - 10/T1660-BLOCK-MOD
50Ω Twisted Pair, Croc Clips - 10/T1660-TP-CROC-MOD-50
100Ω Twisted Pair, Croc Clips - 10/T1660-TP-CROC-MOD-100
75Ω BNC, including BNC-F adapter - 10/T1660-BNC-MOD-75
