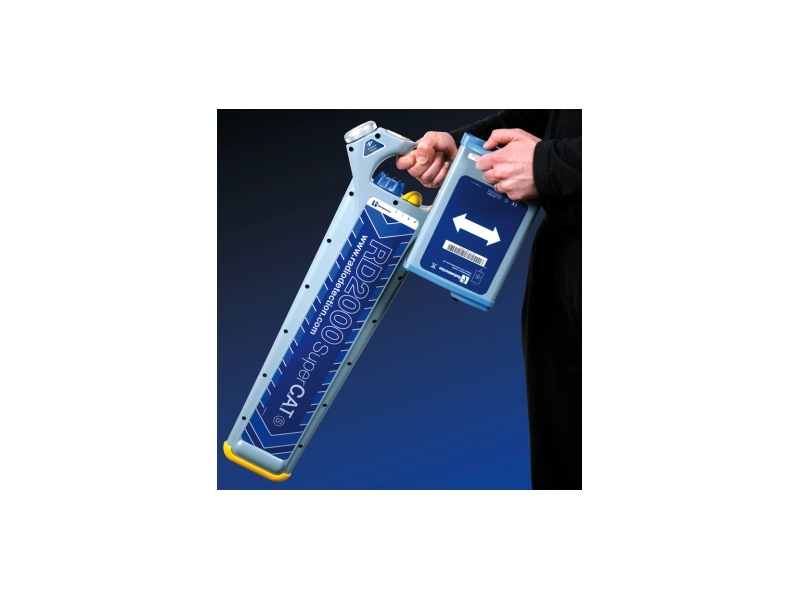

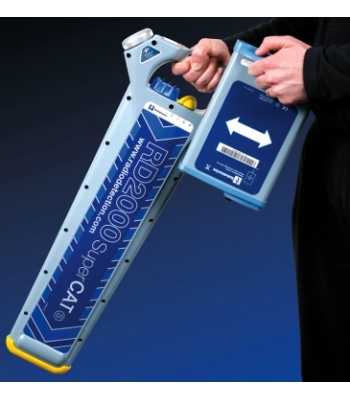

SPX Radiodetection RD2000 SuperC.A.T + KIT01 - Standard Kits

The SuperC.A.T range is available in various different combinations of trasmitter and receiver combinations, in order to suit all applications and budgets.

The SuperC.A.T+ has been developed for high performance location of multiple utilities.

To support the telecoms market, the High Frequency SuperC.A.T TL detects 131kHz or 65 kHz as high frequency locates are known to be more effective when buried assets are well insulated (e.g twisted-pair telecom cables or insulated pipe joints).

Using the SuperC.A.T S with a sonde enables location of pipes such as cast iron, clay, concrete and plastic and finally for metallic pipes with a Cathodic Protection System, the SuperC.A.T CPS is the receiver of choice.

Key Features

  Improved locate quality – Improved precision pinpointing of buried services and exceptionally fast sound and meter response.
  Increased usability in electrically noisy environments
  Multiple active frequencies – The ability to locate the widest of cables and pipes with the addition of two new higher frequencies of 65kHz and 131kHz.
  StrikeAlert – Alerts the user to shallow power cables by flashing an alert icon and making a distinctive sound. We have make it switchable in accordance to customer wishes.
  User backup – User settings are stored each time the unit is switched off whether deliberately or accidently.
  Calibration date ID – To allow the user to know when the SuperC.A.T should be serviced, the last calibration date can be displayed.
  Passive location – Provides a sweep for buried cables and pipes, detecting Radio and Power frequencies.

Standard Kits:
