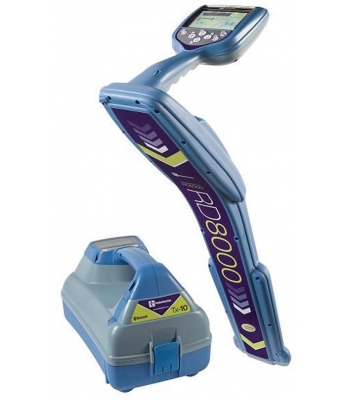

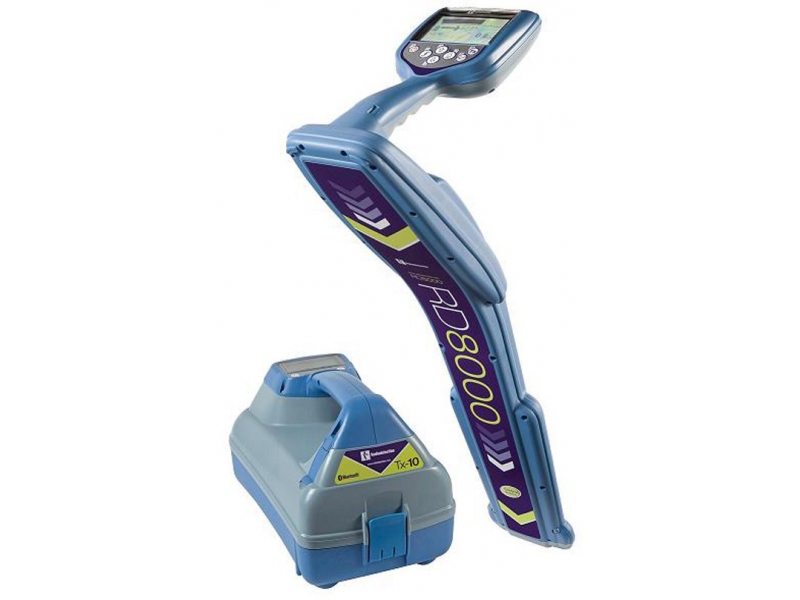

SPX Radiodetector RD8000PXL Cable Locator

The RD8000PDL and PXL are powerful successors to the industry standard RD4000PDL and PXL pipe and cable locators. The RD8000 improves on speed, accuracy and reliability yet remains a cost-effective solution for any application delivering unique user features. Designed with the latest digital software, RD8000 delivers a highly controllable and reliable locate solution to service any industry, anywhere in the world.

Key Features

Ergonomics
• Light weight – 28% lighter than industry standard RD4000
• IP54 Rating – you can operate it in almost any environment
• Transmitter and receiver feature a large, high contrast backlit LCD screen.

Centros™
• Combination of new and innovative algorithms with established software on a high-performance processor core
• Improves the accuracy and repeatability of measurements
• Delivers powerful signal filtering and analysis allowing continued operation even in the most electrically noisy environments.

ILOC™
• ILOC™ is an advanced Bluetooth® link between the RD8000 locator and transmitter
• ILOC allows the operator to control the transmitter remotely
• Less time walking and more time locating.

SurveyCERT™
• Gives the operator the tools to pass survey information to third-party applications for audit, analysis and reporting
• 1000 locate records can be stored and reviewed
• Upload this information to PDA or PC using RD8000 Bluetooth connection.

eCAL™
• A Radiodetection technique that allows the operator to validate the original factory calibration of the RD8000
• eCAL can issue and print validation certificate without needing to return the RD8000 to a service center.

TruDepth™
• Accurate depth readings as only indicates a locate depth when the locator is correctly oriented directly above the pipe/cable.

Rechargeable battery packs for Locators & Transmitters

• Available for Precision Cable & Pipe Locators and the Tx Transmitter range.
• Offer increased flexibility.
• Provide improved cost-of-ownership.
• Deliver excellent run-time and superior cold-weather performance by comparison to standard alkaline batteries.
• Can be charged from empty in just three hours from the supplied mains chargers.
• No need for operators to replace, manage and recycle alkaline battery cells, reducing the associated costs, workload and environmental burden.
• Locator rechargeable battery packs are supplied with a mains charger (90V to 240V, 50/60Hz) as standard.  An automotive charger (12V to 24V DC) is also available for use on the move.
• Transmitter rechargeable packs are available in kits that include the rechargeable battery pack, a mains charger (90V to 240V, 50/60Hz) and an automotive charger (12V to 24V DC).
• Individual chargers and battery packs are also available as separate parts for both locators and transmitters.

Comes with Li-Ion rechargeable battery and mains charger as standard.

Part Number: 10/8KPXLM-UK
