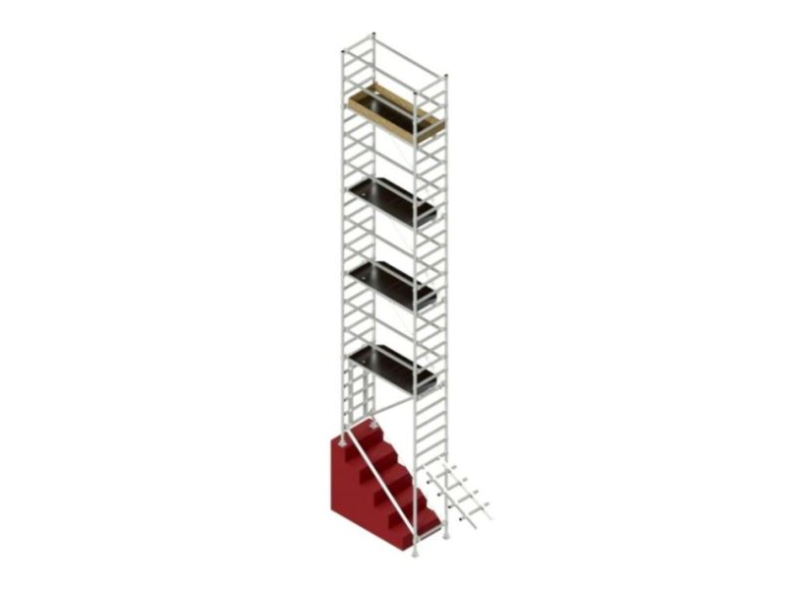

StairDeck Stairway and Narrow Access Tower 3T Build - 5.8m Platform Height

Lightweight alloy access tower specifically designed to be used on stairways and narrow access passages.

  • Conforms to current working legislation for platforms over 2mt. in height
  • STAIRDECK is built to commercial standards and is designed for safe working by professionals and home users alike

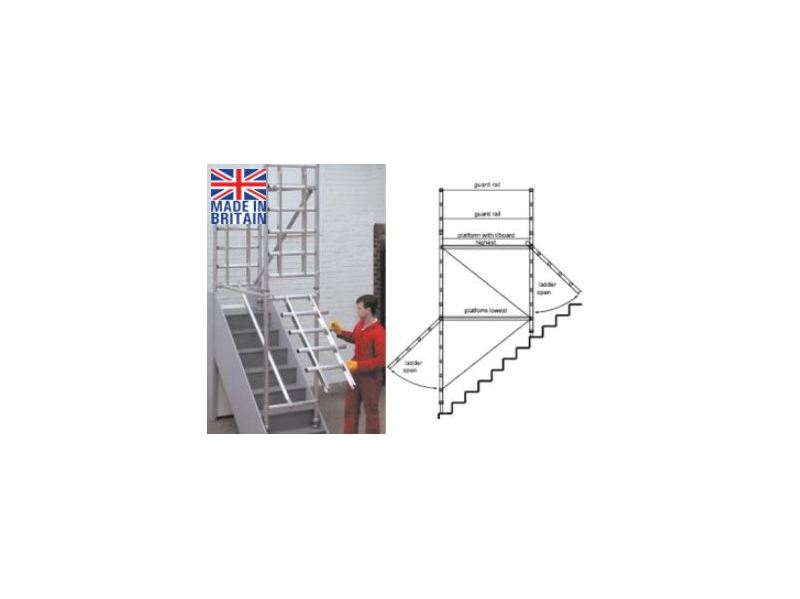

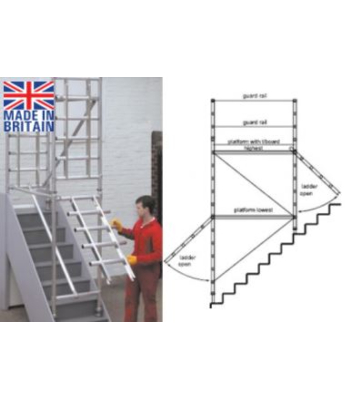

  • The unique lifting section built into STAIR DECK allows easy access to the interior of the tower, enabling the user to climb to the working platform inside the structure, as is recommended for all access towers.
  • The lift-up ladder section is at both ends of the tower, making entrance possible from stairs that are either below or above the tower.
  • Horizontal rungs forming a ladder in each tower are spaced at 250mm. intervals.
  • A small spirit level is attched to the underside of each platform to assist with levelling the tower during erection
  • The stabiliser option is for 2 stairdeck stabilisers. If you require more stabilisers, please call and tell us the application and we will recommend how many stabilisers would be suitable. For 3T versions of this tower please contact us for further details.
Tower Kit Includes
Stairdeck Ladder Frame 2
6 Rung Upper Frame 5
4 Rung Upper Frame 1
3 Rung Upper Frame 1
1.9m Diagonal Brace 5
1.5m Horizontal Brace 7
1.5m Hatchdoor Platform 1
Toeboard Set 1
Adjustable Legs 4
Base Plates 4

Basic Kit (2.8m platform) Specifications For StairDeck Stairway & Narrow Access Tower.
Maximum Height From:
lowest step to rear handrail - 3.8m
Maximum Height From:
highest step to front handrail - 2.8m
Overall width - 0.7m
Overall length - 1.5m

Lowest Platform Height
from highest step - 0.3m
Highest Platform Height
from highest step
(within guard rails) - 1.8m

Total tower kit weight - 100kg.
Maximum loading per stair - 50kg.

Pasma

Sitebox Ltd is a Pasma Registered Company

Brand: Interlink Alloy Systems

Identifier: SDT 58PH

Product Document Download(s)

  StairDeck 3T Erection Guide


StairDeck Stairway and Narrow Access Tower 3T Build - 5.8m Platform Height
