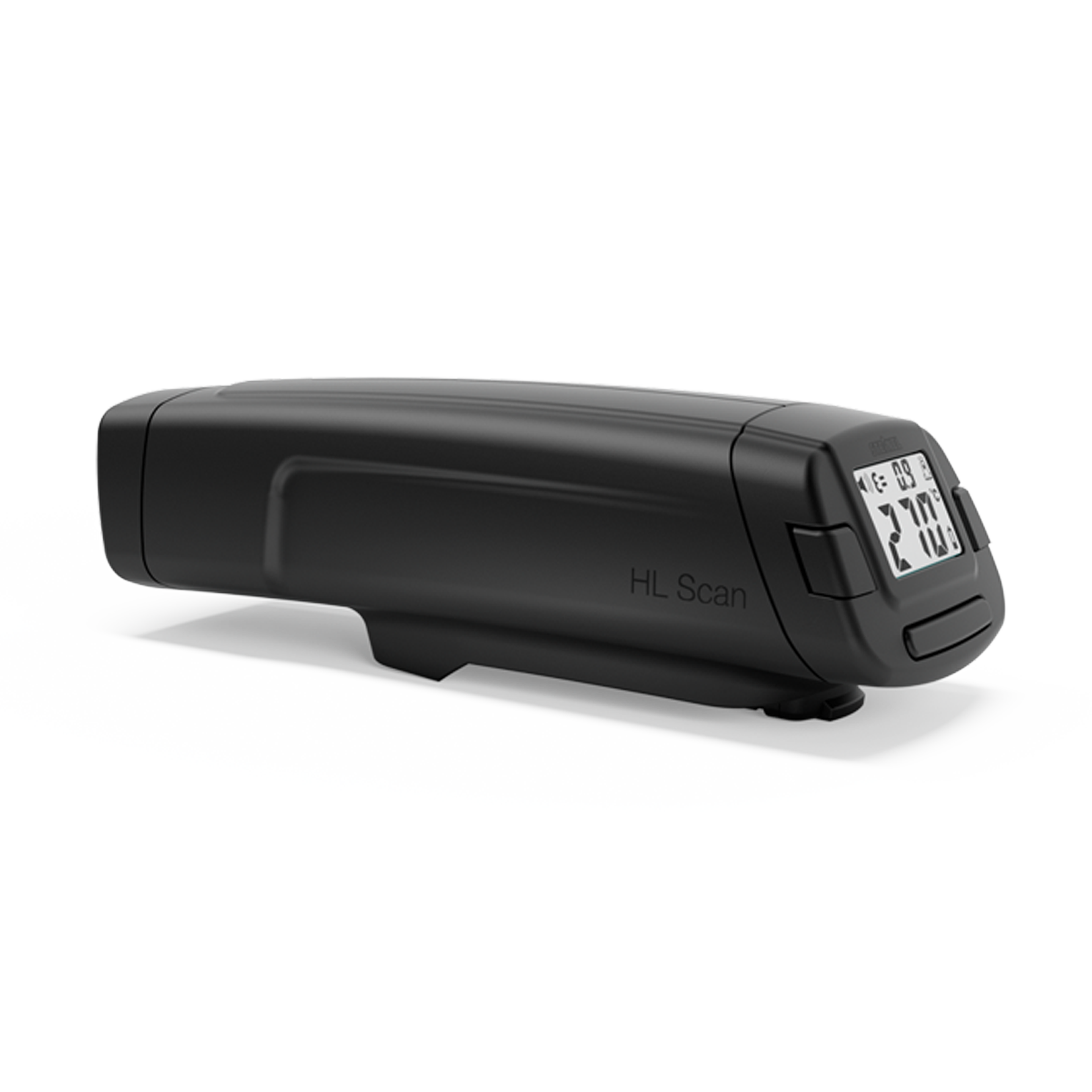

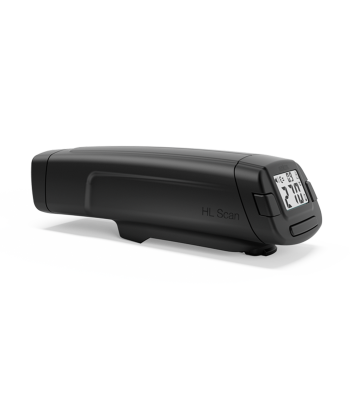

Steinel Temperature Detection Device Hl Scan - Code 014919

Insurance cover for temperature-sensitive workpieces. Temperature scanner HL Scan monitors workpiece temperature by a beam of LED light. An acoustic and visual signal warns the user when temperature exceeds or falls below the permissible limit. For the HL 1920 E, HL 2020 E as well as the Professional HG 2120 E and HG 2320 E tools.

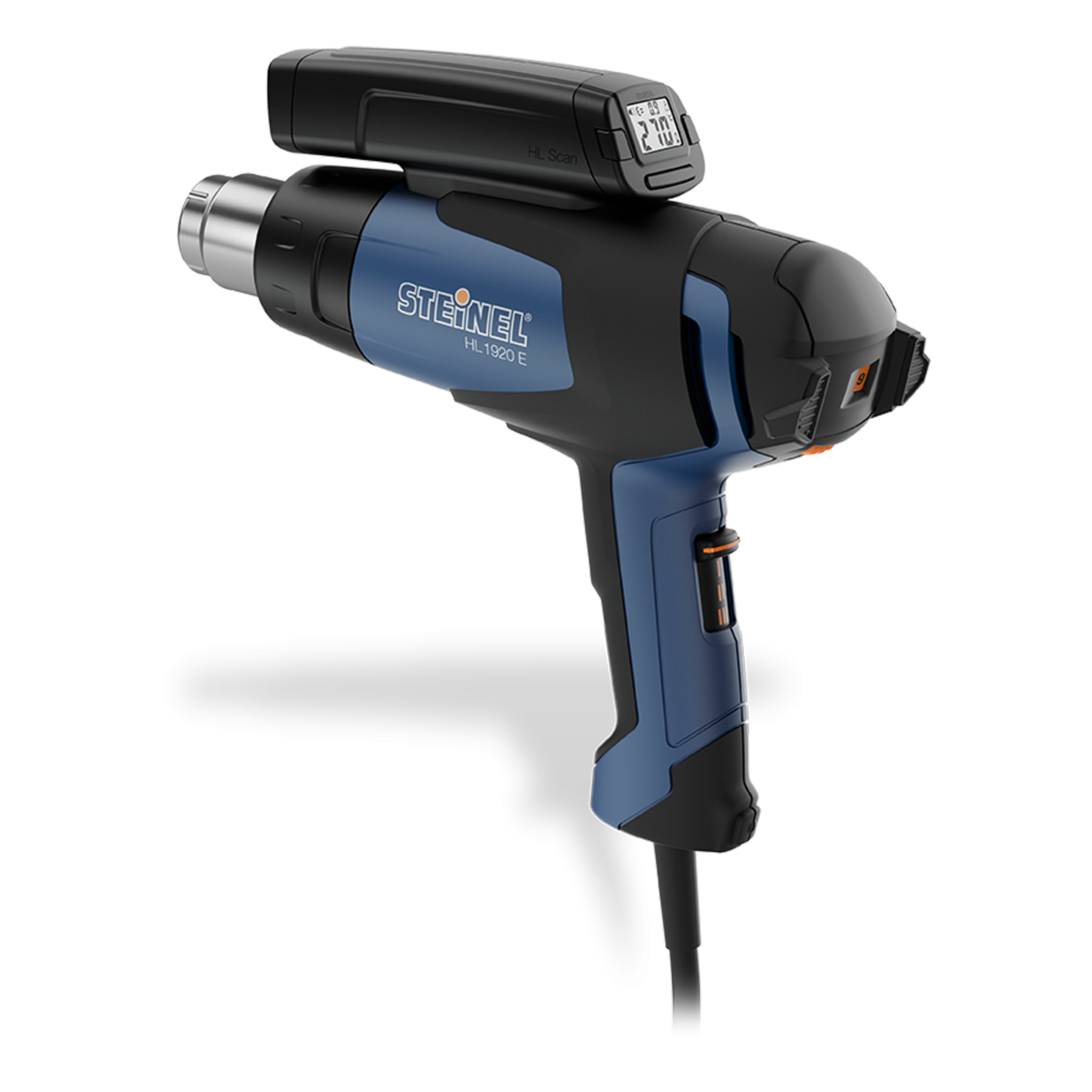

Full control of temperature and never again a risk of causing damage. HL Scan measures the temperature at the workpiece surface while working on it with the hot air tool. An acoustic signal sounds as soon as heat either exceeds or falls below the ideal temperature. The display also shows whether workpiece surface is too hot or too cold. Red means "too hot", green means "ideal temperature" and blue means "too cold". The HL Scan can be fitted to hot air tools HL 1920 E, 2020 E, HG 2120 E and HG 2320 E. The warning tolerance range can be selected to suit individual needs. If chosen, the visual and acoustic warning can be deactivated.

Dimensions (L x W x H): 147 x 51 x 44 mm

Power supply, detail: Batteries (included)

Mains power supply: 9 V

PU1, net weight: 0,143 kg

Manufacturer's Warranty: 3 years

Temperature measurement range: 0-300C, adjustment in 10C steps

Temperature scan: via Sensor

Optimum distance from workpiece: 15 cm

Work-area marking: with LED light beam

Emission level: adjustable (0.85 / 0.90 / 0.95)

PU1, gross weight: 0,263 kg

PU1, piece: 1

PU1, Length: 6,5 cm

PU1, Width: 5 cm

PU1, Height: 15,3 cm

PU1, Volume: 497,250
