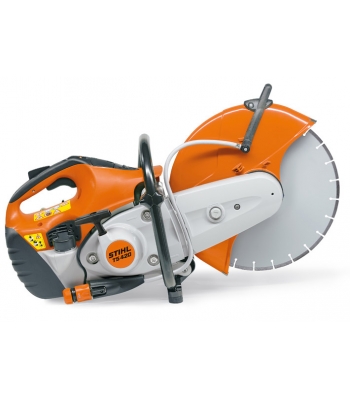

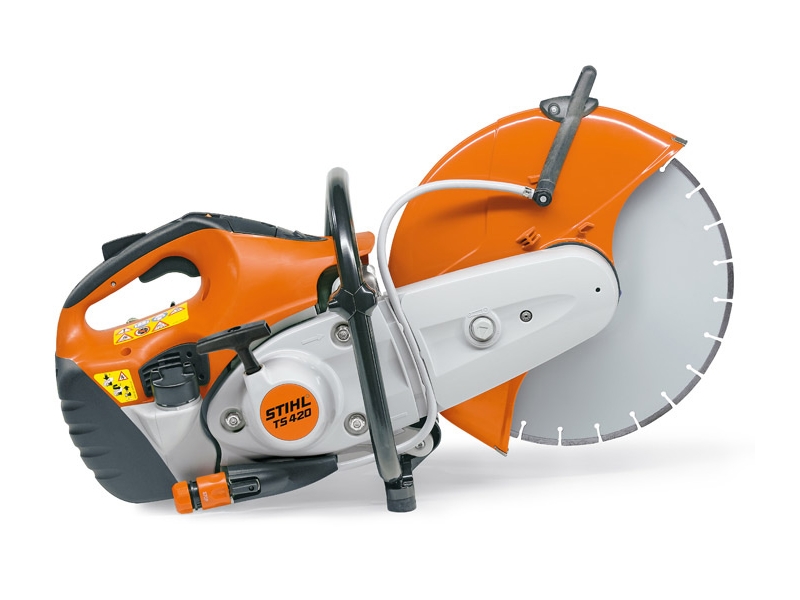

Stihl TS 420 Compact and robust 3.2-kW cut-off saw (350mm cutting wheel)

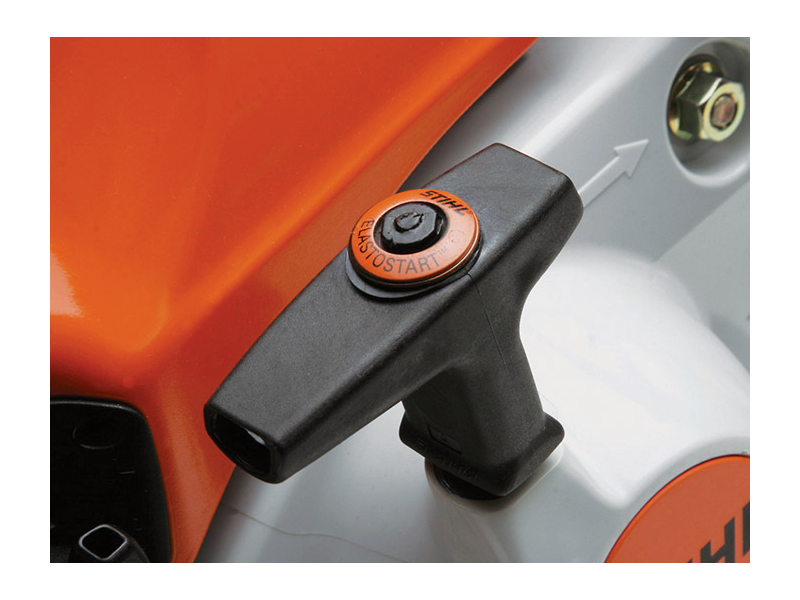

Compact and robust, the STIHL TS 420. Long-life filter system with cyclone pre-separation makes on site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics. For use with 350mm cutting wheel. ElastoStart, primer pump and decompression valve. Bayonet filler cap for tool free opening. Can be hand held or used with the FW 20 cart. Supplied with abrasive cutting wheel.

• Reduced-emission engine technology
• Manual fuel pump (Purger)
• Water supply
• Pre-separation air filtration system
• Anti-vibration system
• Ergonomic grip position
• Semi automatic drive belt tensioning

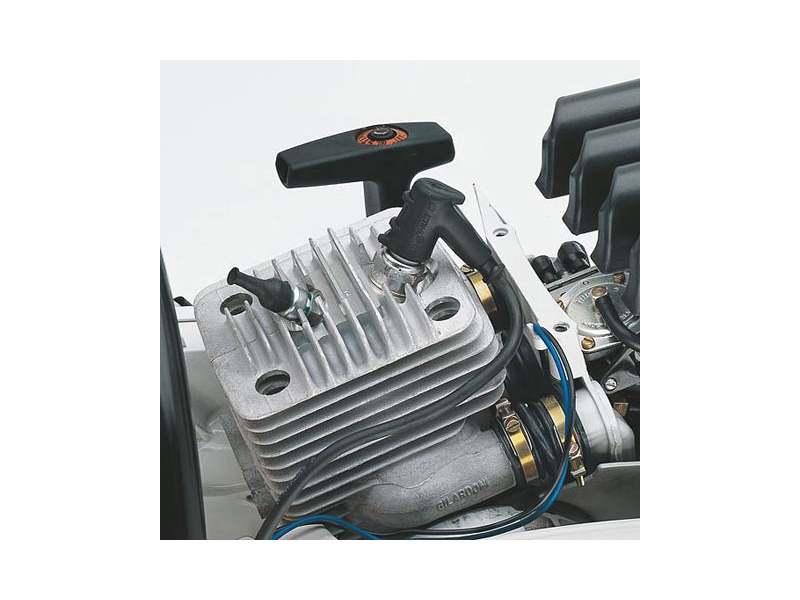

2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.

A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.

Water is supplied to the cutting wheel through the standard water connection with sprinkler system to suppress the dust produced during cutting. It is supplied to the device in such a way so as not to interfere with your work.

STIHL long-life air filtration systems with pre-separation achieve perceptibly longer filter life compared with conventional filter systems. Air drawn in is swirled. The larger, heavier particles are ejected. The pre-cleaned air is routed to the air filter via the pre-separator duct.

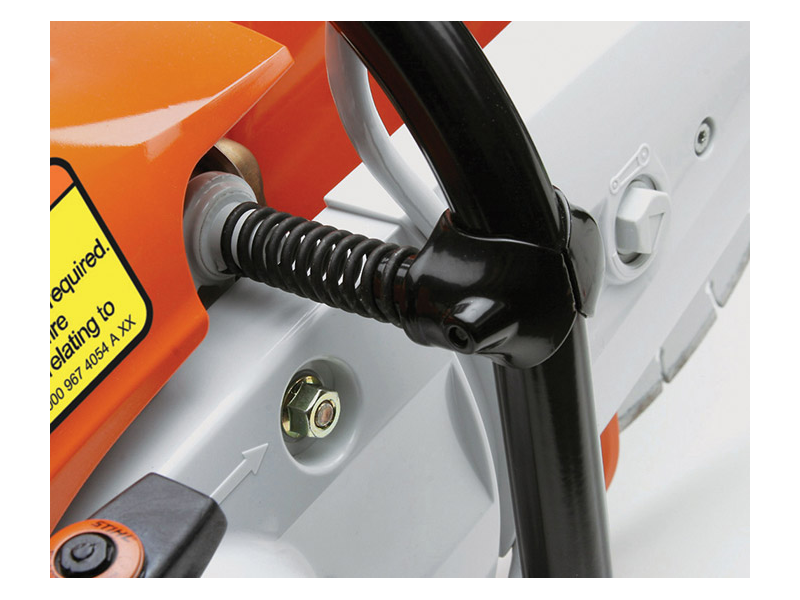

Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine's engine are dampened which significantly reduces vibrations at the handles.

The modern, ergonomic design allows each user to work with an optimal grip position. The loop handle facilitates excellent cutting comfort in any working position.

Light, consistent re-tensioning increases the service life of the belts and shaft bearings.

PLEASE NOTE

• This product is available for collection in store only.
• You can purchase online as normal but we will then be in contact for you to arrange collection.
• This product will have to be started up, tested and inspected prior to your collection.
• If you require any other information regarding this please contact us prior to purchase.

Technical data

Displacement cm³	66.7
Power output kW/bhp	3.2/4.4
Weight kg 1)	9.6
Sound pressure level dB(A) 2)	98.0
Sound power level dB(A) 2)	109.0
Vibration levels left/right m/s² 3)	3.9/3.9
Cutting wheel mm/in	350 / 14
Maximum cutting depth mm	125
Total length cm	72.5
