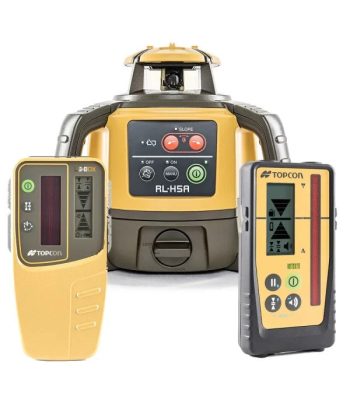

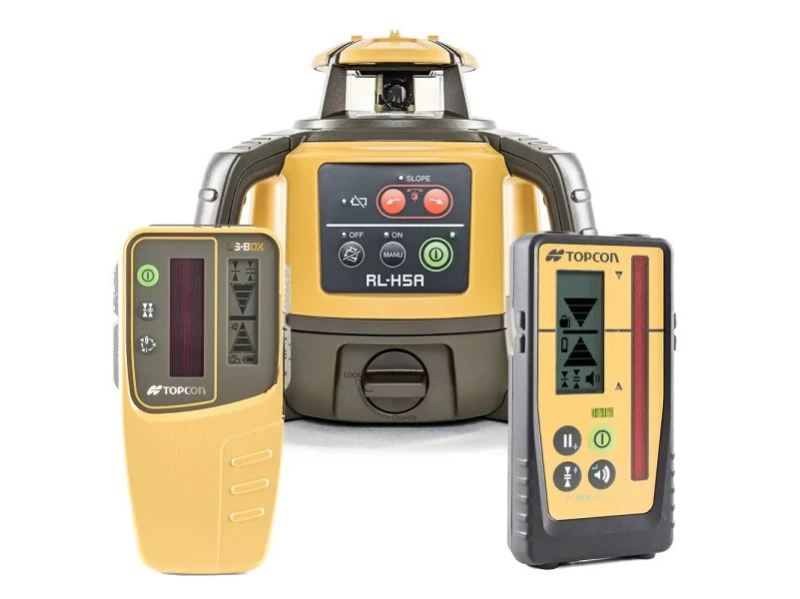

Topcon RL-H5A Red Beam Rotating Laser with LS100-D Detector or LS-80X Detector

Long-range high accuracy laser With great distance and high-accuracy, the RL-H5 Series is simple to use for checking elevations.

Easy to use With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it relevels itself automatically. The self-leveling motors are accurate to ±10 arc seconds.

Long range operation Need to shoot elevations up to 400 m from your laser? No problem — this instrument instrument has the power and range to cover a 800 m diameter job site.

Long battery life The RL-H5A gives you the option of up to 60 hours of continuous usage with the rechargeable battery pack or 100 hours with (4) D cell batteries.

All weather dependability With the IP66 rating, the RL-H5A is “job site tough” and can withstand dust, a sudden shower and even torrential rainfall.

• Long-range operation (800 m)
• Smart long-range receiver
• Simple, intuitive manual slope capability
• ±10 Arc second horizontal accuracy
• ±5 Degrees self-leveling range
• Up to 100 hours battery life

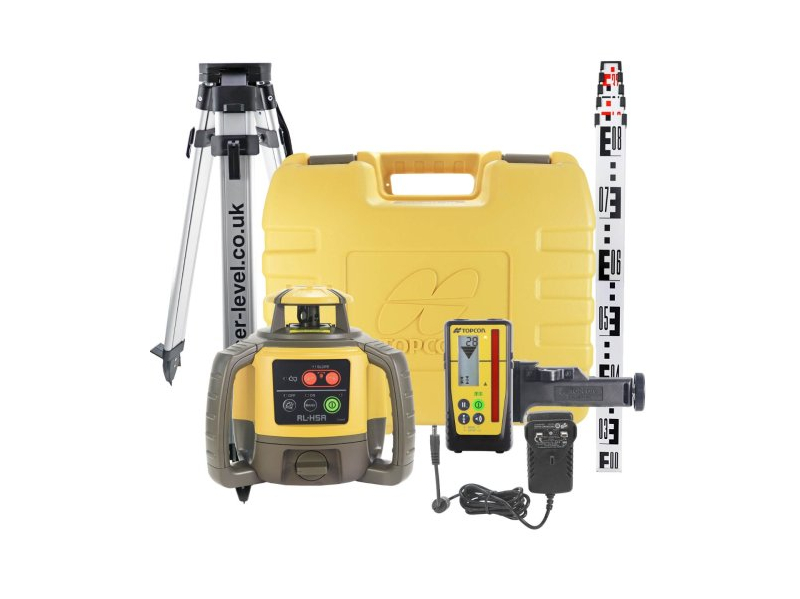

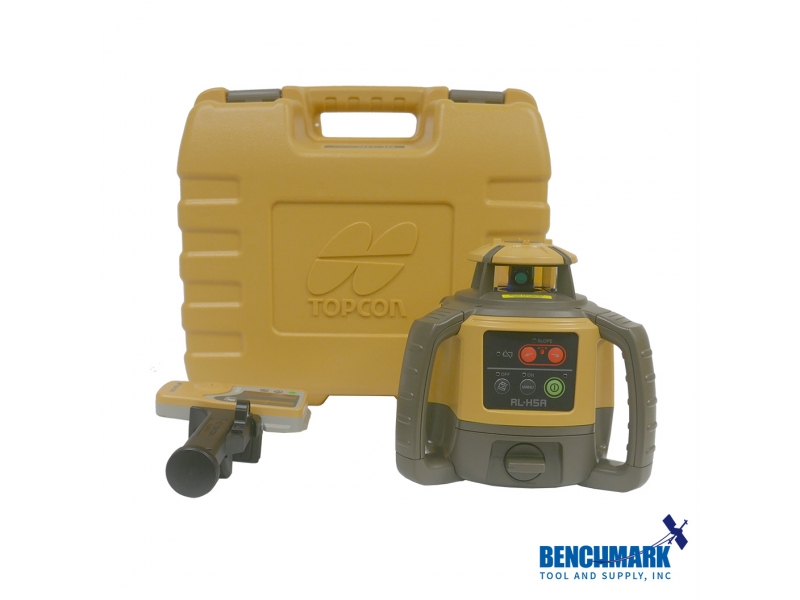

Kit Components

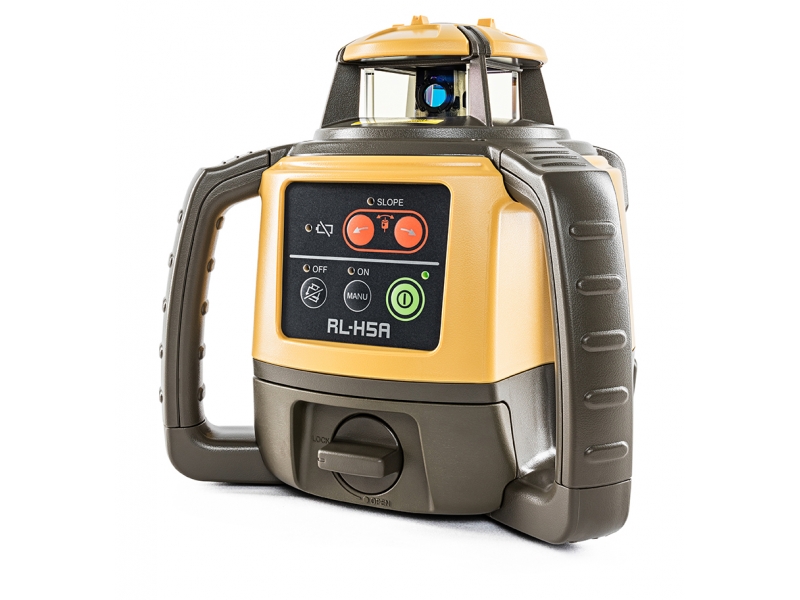

• RL-H5A laser

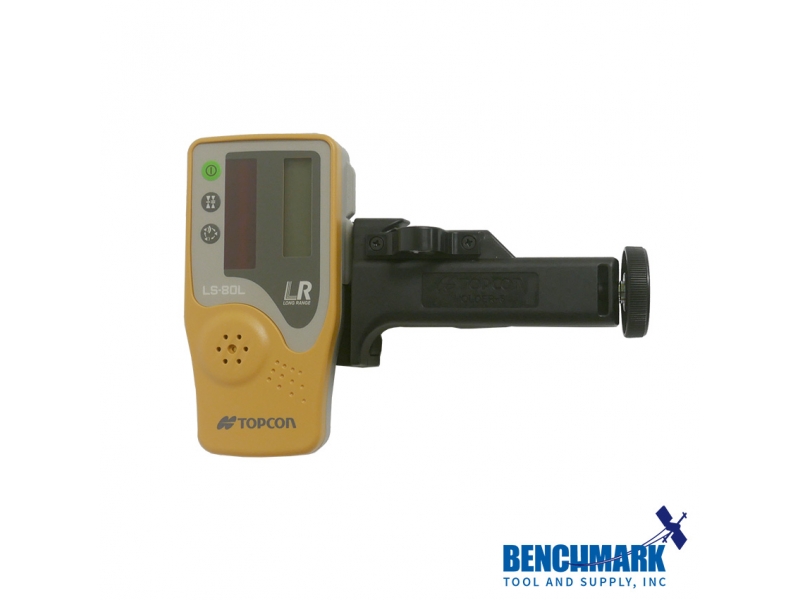

• LS-80L or LS-100D sensor
• Sensor holder
• Batteries - AA
• Chargers
• Carry case
• Tripod & Staff is an optional extra (see options)

Five year guarantee The RL-H5A laser comes with a Five Year Guarantee. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Specifications

• Accuracy H: ±10 arc seconds
• Self-Leveling Range Horizontal ±5 degrees
• Working Area 800 m
• Rotation Speed 600 rpm
• Dust/Water Rating IP66
• Operating Time Alkaline: 100 hours Ni-MH: 60 hours
• Operating Temp. -20ºC to 50ºC
• Size (H x W x L) 205 x 211 x 172 mm
