Product ID: TPI_505L
Related Products: See all related products
Manufacturer: TPI Europe
Price: (£174.80 ex VAT) £209.76 (inc VAT)
209.76 2025-01-21also measures surface speeds of belts and wheels.

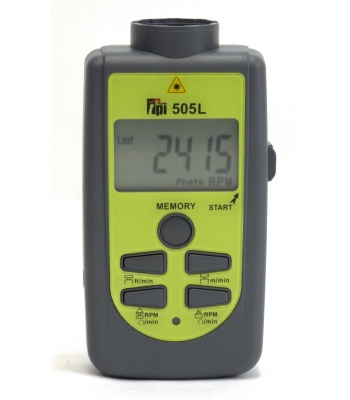

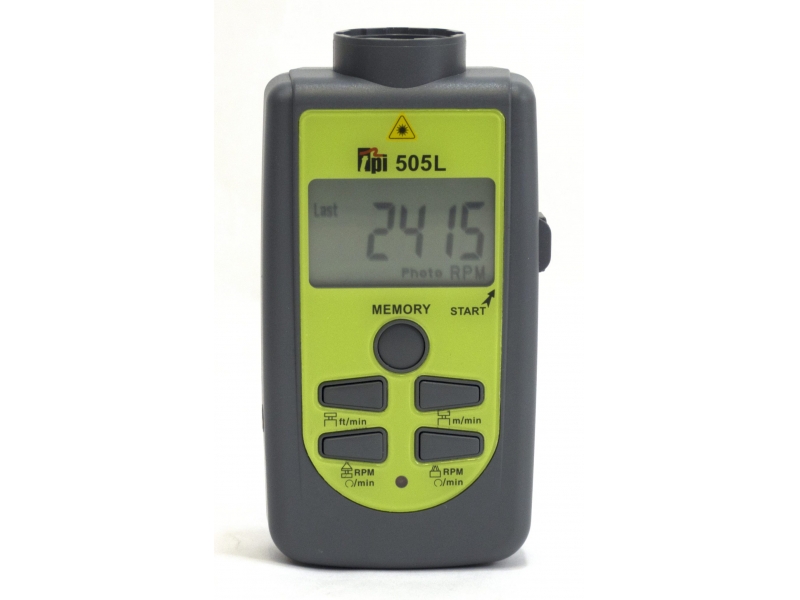

The 505L is a combination photo and contact tachometer that also measures surface speeds of belts and wheels.
With Photo Tach, Contact Tach and Surface Speed Operations.
Field Testing the TPI 505L Photo Tachometer
It’s easy to test your 505L to make sure it is operating properly. First, point the 505L at the palm of your hand and press the on button. You should see light from the output lens. Second, point the 505L at a fluorescent light and press the on button. The reading should be 7200 RPM +/- 5 RPM.
| Model 505L Specifications | ||
|---|---|---|
| Photo Tachometer | Range: 6 - 30,000 RPM Accuracy: ± 0.1% of FS + 1 digit | |
| Contact Tachometer | Range: 6 - 20,000 RPM Accuracy: ± 0.1% of FS + 1 digit | |
| Surface Speed | 0.9 - 3,046 m/min 2.0 - 9,990 ft/min Accuracy: ± 0.1% of FS + 1 digit ± 0.1% of FS + 1 digit | |
| Display Type | 5 Digit LCD | |
| Operating Temperature | 32° to 122°F (0° to 50°C) | |
| Operating Humidity | 80% Max. R.H | |
| Power Supply | AA Alkaline Batteries (2 each) | |
| Maximum Distance from Target (photo mode) | 25 Feet | |
| Detection Type | Laser reflection | |
| Laser Output | Class II 635~670nm | |
| Signal Output | +5V pulsed | |
| Tripod Connection | 1/4 inch | |
Brand: TPI Europe
Identifier: 505L
