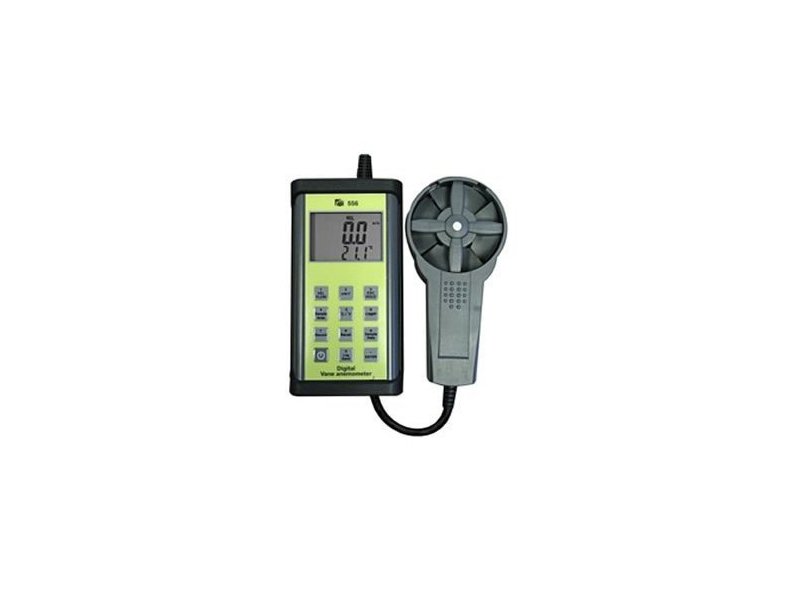

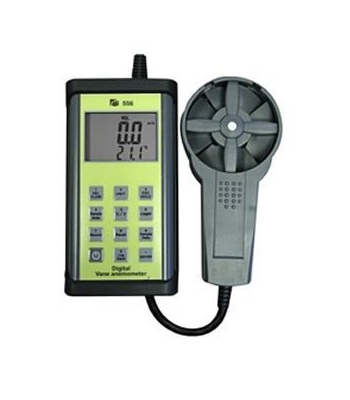

TPI Europe 575C1 Vane and Hotwire Velocity Meter

Combination Vane & hot wire anemometer and temperature. The 575 Digital Air Velocity Meter is a state of the art, easy to use instrument designed to provide temperature and air velocity readings.

  • Increased versatility, uses both hot wire and vane type probes
  • Measure air velocity and temperature simultaneously
  • Record, minimum, maximum and average
  • Data hold
  • Auto power off (10 min.)
  • Low battery display
  • Multiple units of measure: (m/s, k/h, mile/h, knots, ft./min)
  • Download data to a computer using the RS-232 port and optional A500 cable
  • 39” cable length

Description

The TPI 575 Vane/Hotwire Air Velocity Meter is a state of the art, easy to use instrument designed to provide temperature and air velocity readings. The instrument is ruggedly constructed and comes with a 3 Year Guarantee.

The TPI 575 Vane/Hotwire Air Velocity Meter comes complete with the following items as standard:

  • TPI 575 Instrument
  • Hotwire Probe Head
  • Vane Probe Head
  • Rubber Boot
  • Soft Carrying Case
  • Batteries
  • Instruction Manual

The TPI 575 Digital Air Velocity Meter has the following options available:

Serial Computer Interface RS232

Specifications

 Model 575C1 Specifications
 Air Velocity (Low friction ball conventional twist wheel)  80 to 4900 ft/min 0.4 to 25 m/s 40 to 3900 ft/min 0.2 to 20 m/s
 Units of Measure  m/s, km/s, ft/min, mile/hr, knots/hr
 Air Velocity Accuracy  ±(2% of rdg + 3 digits) vane >±(5% of rdg + 3 digits) hot wire
 Temperature (Precision thermistor)  -5°F to 175°F -20°C to 80°C
 Temperature Accuracy  ±(1% of rdg + 1°F + 3 digits)
 Units of Measure  °C / °F
 CFM Calculation  Manual using formula
 RS-232 Output  Yes
 Min/Max Record  Yes
 Operating Temperature (Base Unit)  32°F to 122°F
 Operating Humidity (Base Unit)  <95% non-condensing
 Battery Type  9V
 Battery Life  30 hours typical
 Dimension W x L x H  2.9” x 5.7” x 1.1”
 Weight  0.3lb

Applications

  • Air velocity measurements in heating, ventilation and air conditioning systems
  • Where low and high feet per minute readings are critical you must use a hotwire below 80 ft. per minute

Brand: TPI Europe

Identifier: 575
