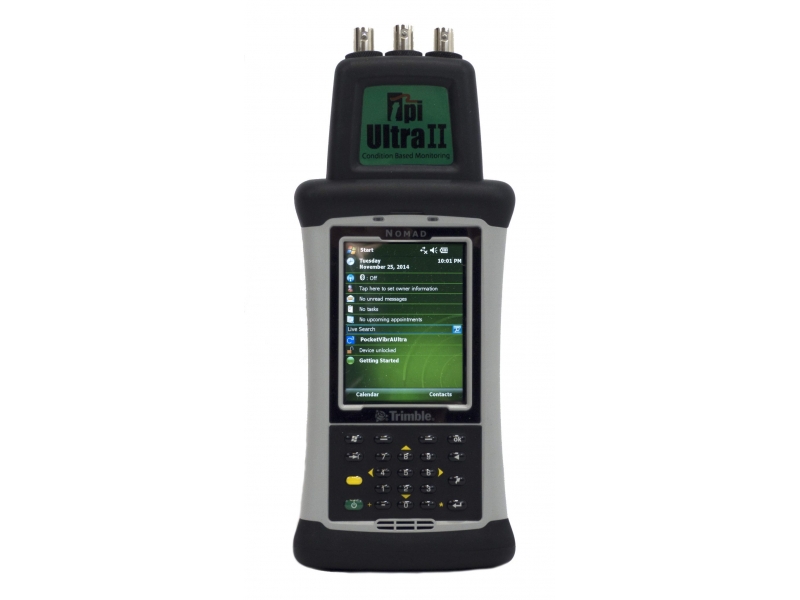

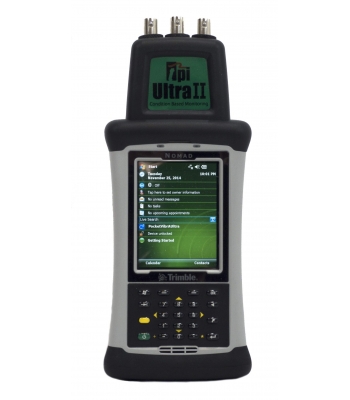

TPI Europe 9041 Ultra II Machine Condition Vibration Monitoring Analyzer

The TPI Model 9041 Ultra II represents the very latest in easy to use high specification maintenance tools, offering extremely high levels of functionality and capability at a very affordable price!

As a high spec condition based monitoring (CBM) data collector and Dynamic 2 plane rotor balancer designed for plant and asset inspections, the Ultra II does it all.

• Automatically detects out of balance, misalignment, looseness and bearing defects
• Predictive analysis capabilities that accurately calculate time frame to failure
• Condition based monitoring analyses bearing wear and gear degradation
• Built-in single plane balancing enables correction of the most common cause of vibration. (Dual plane balancing with additional accelerometer)
• Additional features include Inspection, Lube and remote/server database
• User selectable defined envelope filters and demodulation functionality
• True simultaneous 3 channel capture
• High resolution (0.2Hz) frequency spectra from 2Hz to 10kHz
• Rugged fully waterproof construction meets IP68 and MIL-STD-810F requirements
• Includes C-Trend powerful and easy to use asset management and fault diagnosis software

Accessories

C-Trend Software gives you greater ease of use and flexibility.

• Store, analyze and report on all your vibration, lube and process parameters (e.g. oil pressures, lube volume, temperature, run hours, etc.) in one place.
• All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.
• Data can be accessed anywhere on any machine, with optional networking software. Plant history is everything and C-Trend turns it into useful information with the click of a mouse!

C-Trend II Software

Model 9041 Ultra II C-Trend II Software Functionality

Condition Based Maintenance data collector:

• Displays sites, assets and measurements in a “tree” structure to give easy navigation of routes and capture of readings using touch screen and numeric keypad.
• Analyses and displays ISO vibration levels, bearing wear, unbalance, misalignment, looseness etc.
• Color coded with alarm status (red, amber & green).
• Fully zoom-able frequency spectrum and time waveforms
• All data automatically downloaded to C-Trend (PC trending analysis and reporting software included as standard)
• Optional auto identification of measurement points using RFID tags with easy to use set up wizards

Single plane and two plane dynamic balancer:

• Single and two plane software included, you need an additional accelerometer A9012 for two plane balancer
• Balances to user defined grades using simple to use step by step balancing wizard
• Live vector display shows out of balance and phase angle during balancing runs (ideal for checking stability)
• Built-in tool kit for trial weight calculation, weight splitter, drill depth (for weight removal), coast down etc.
• Downloads all balance data and graphs to PC full color report generator wizard

Inspection system:

• User defined inspections can be run to capture data and trend process variables (e.g. temperature, pressure, run hours etc.) using simple wizards
• Automatic reporting and generation of email alerts for any parameter
