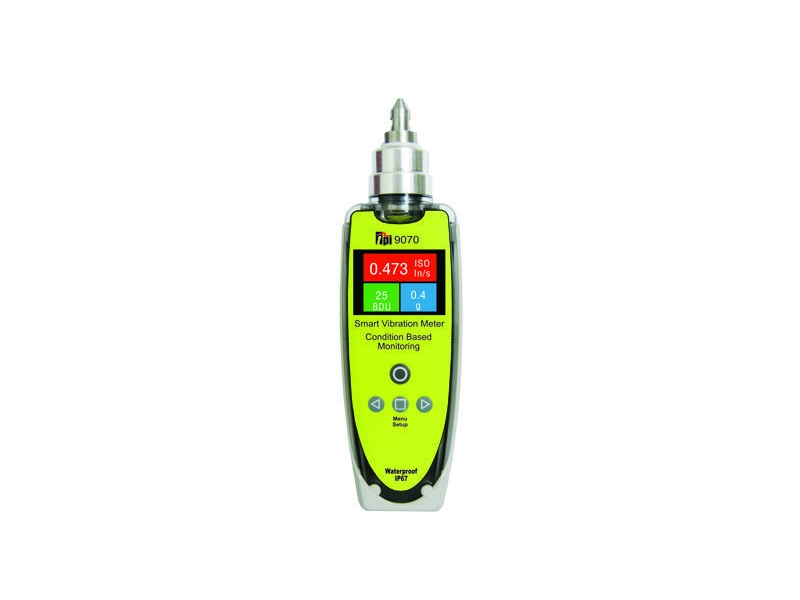

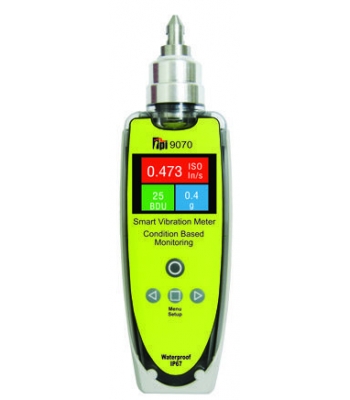

TPI Europe 9070 Vibration Analyzer - Low Cost Hand Held Maintenance Tool

TPI Model 9070 Smart Vibration Analyzer. Vibration analysis at the touch of a button. Analyze and Interpret readings; incredible performance at an unbelievably low price.

Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BDU).

• ISO Built-in Alarms
• Easily identify bearing problems with BDU Reading
• 800 line FFT (spectrum)
• Ruggedized IP67 case
• 3-year Limited Warranty

The 9070 is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals. The meter automatically per-forms vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness.

• Full Color OLED Display
• Easily identify problems with built in band filters:
  1X (unbalance)
  2X (misalignment)
  3X (looseness)
• Built-in accelerometer with stinger. Optional long stinger and magnetic mount available

Description

TPI Model 9070 Smart Vibration Analyzer Product Description

The TPI 9070 is a simple, easy to use, low cost vibration meter that records, analyse and displays vibration signals at the push of a button.

Overall machine and bearing conditions:
vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BDU).

Easy vibration analysis:
clear picture of machine problems detected with built in band filters:
1X (unbalance)
2X (misalignment)
3X (looseness)

Identify complex issues:
800-line spectrum with zoom and cursor.

Readings are easily saved and recalled with all alarm levels and settings stored in non-volatile flash memory. Run speed and machine type are entered with the simple to use Setup Wizard.

Specifications

Applications

Markets:

• Commercial & Industrlal HVAC
• Food Processing
• Manufacturing
• Mining
• Packaging
• Petrochemical
• Pulp and Paper
• Power Plants
• Utilities
• Automotive
