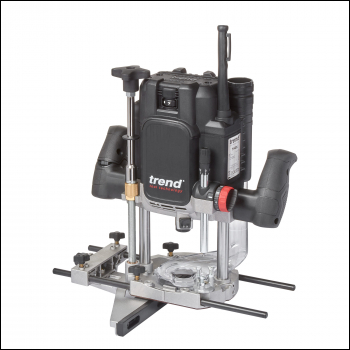

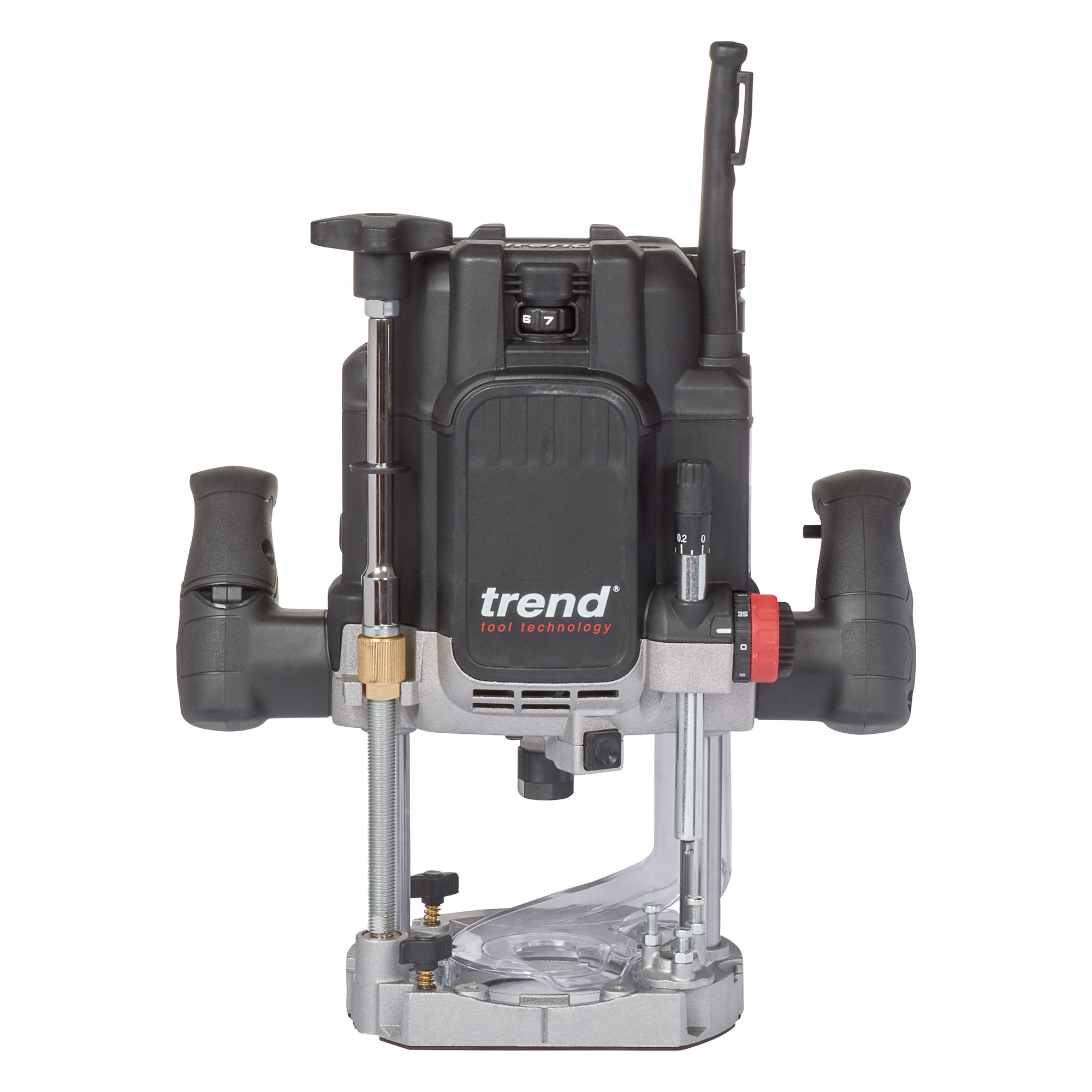

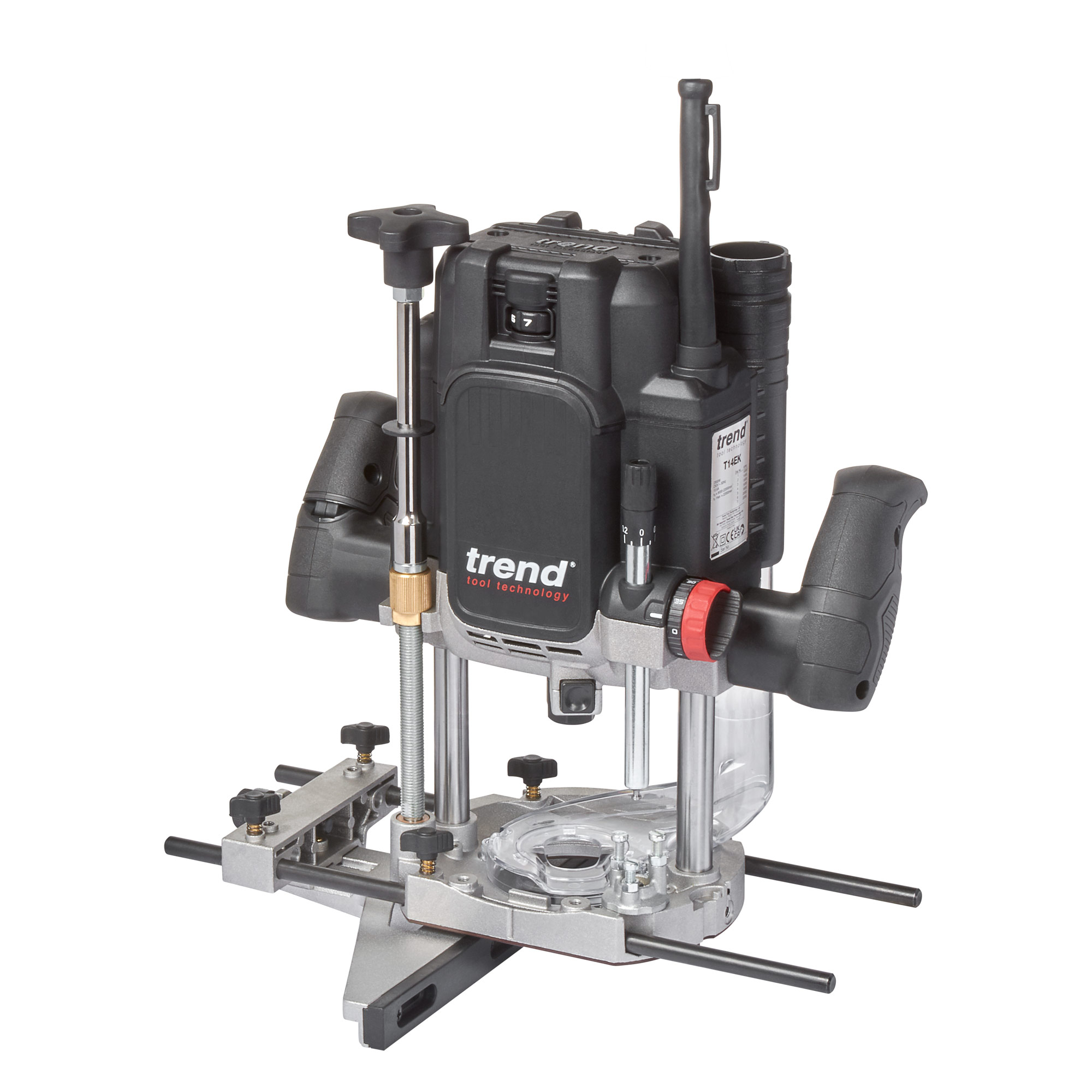

Trend 2300w 12mm Dual-mode Plunge Router 230v Eu - Code T14EK/EURO

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Estimated Delivery Time 2 Working Days)

Nationwide Delivery
Order now for delivery on
Fri 3rd Jan 2025

Quote Ref: @105481

Product ID: T14EKEURO

Barcode: 5027654076316

Related Products: See all related products

Manufacturer: Trend

Warranty: 36 months

All Trend products are guaranteed for 12 months (unless guarantee card or product packaging advises otherwise) from the original purchase date against any manufacturing defects leading to premature failure. We guarantee to replace all defective parts free of charge or at its discretion to replace the product free of charge.

Click here for when the guarantee will not be valid

Trend Professional Power Tools meet the highest quality standards. We offer you the opportunity to extend your warranty to three years from date of purchase free of charge. All you have to do is register your tool online within four weeks of purchase.

Click here for Extended Warranty Information

Price: 522.26 ex VAT) £626.71 (inc VAT)

626.71 2025-01-21
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!

Trend 2300w 12mm Dual-mode Plunge Router 230v Eu - Code T14EK/EURO

High-performance plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts. Perfect for hand-held and Router Table use.

Powerful 2300W Motor with Constant Speed Control delivers consistently high power, torque and speed, and features soft-start to prevent kick-back.

80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock fitting, worktop joints and timber profiling.

Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible tables, jigs and accessories.

Anti-Restart Protection prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is interrupted or lost and restored.

Router Table Safety Switch bypasses the Anti-Restart Protection feature and replaces the need for a typical NVR (No Volt Release) switch.

2-in-1 Plunge & Router Table Height Adjuster can be used from above AND below the router, in both table and hand-held mode. Each 360 turn gives 1.5mm adjustment.

Precision Centring System features a unique guide bush centring pin and adaptor plate that ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.

Auto-Lock Plunge Lever allows users to quickly, accurately and safely reposition the plunge position without releasing the handles.

Router Table Cam-Lock Quick-Release Mounts make mounting and unmounting the router quick and easy (optional accessory).

Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers, when used with a Router Table.

7-Level Variable Speed Control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications.

Top-Mount Cyclone Extraction with enhanced dust adapter efficiently clears debris to give users 360 visibility and prevent extraction hoses from snagging.

Ergonomic Inclined Handles support a natural wrist position, reduce strain, and increase control when routing with arms outstretched.

Quick-Set Depth Post with rack & pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment.

Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment.

Integrated Power Trigger bult into the inclined handle for precise and safe control of the routers on/off function.

Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.

Automatic LED Work Lights allow users to accurately position the cutter in low-light situations, prior to engaging the material and making costly errors.

Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action.

Anti-Scratch Base Plate made from replaceable, smooth Phenolic materials for a low-friction routing experience.

Integrated Router Rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents.

*3 year warranty Online registration required

Specifications

  • Duty Rating=Heavy/Professional/Trade
  • Motor Power=2300 W
  • AC Voltage=230 V
  • Plug Type=EU Euro 2 pin
  • Supplied Collet Size=12 mm
  • Plunge Stroke (Max)=80 mm
  • No Load Speed=9,000-20,000 rpm
  • Supplied Guide Bush=30 mm
  • Fence Rod Length=360 mm
  • Fence Rod Centres=100 mm
  • Fence Rod Diameter=10 mm
  • Base Aperture Diameter=75 mm
  • Cutter Diameter (Max)=50 mm
  • Dust Spout Internal Diameter=35 mm
  • Sound Pressure (Lpa)=95.1 dB(A)1
  • Acoustic Pressure (Lwa)=106.1 dB(A)2
  • Hand/Arm Vibration=<2.1 m/s2
  • Weight (Net)=6.5 kg
  • Power Cable Length=3.5 m
  • Router Table Compatible=Yes
  • End of Life=See below for Environmental Policy link
  • For UK & IRL sale only

General Information

Nett Weight (kg): 6500

Gross Weight (kg): 11368

Barcode SKU: 5027654076316

Includes: 1 x 12mm Collet|1 x Fine Height Adjuster|1 x 30mm Guide Bush|1 x Inner Plate|1 x Line up Pin|1 x 35mm Clip-in Dust Spout|1 x Line up pin|1 x Side-fence with Micro Adjuster|1 x Router Table Safety Switch Box|1 x Storage Case

Warranty Period: 36 months

Intrastat Code: 8467298500

Packaged Size: 315x435x310mm

Brand: Trend

Identifier: T14EK/EURO
