Trend 700mm Professional Multi-material Worktop Jig - Code KWJ700/PRO

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Estimated Delivery Time 2 Working Days)

Nationwide Delivery
Order now for delivery on
Wed 24th Jul 2024

Quote Ref: @126892

Product ID: KWJ700PRO

Barcode: 5027654089668

Related Products: See all related products

Manufacturer: Trend

Warranty: 12 months

All Trend products are guaranteed for 12 months (unless guarantee card or product packaging advises otherwise) from the original purchase date against any manufacturing defects leading to premature failure. We guarantee to replace all defective parts free of charge or at its discretion to replace the product free of charge.

Click here for when the guarantee will not be valid

Trend Professional Power Tools meet the highest quality standards. We offer you the opportunity to extend your warranty to three years from date of purchase free of charge. All you have to do is register your tool online within four weeks of purchase.

Click here for Extended Warranty Information

Price: 137.50 ex VAT) £165.00 (inc VAT)

165.00 2024-08-21
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!

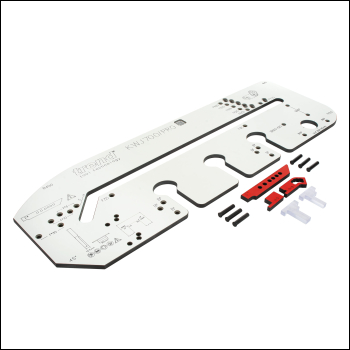

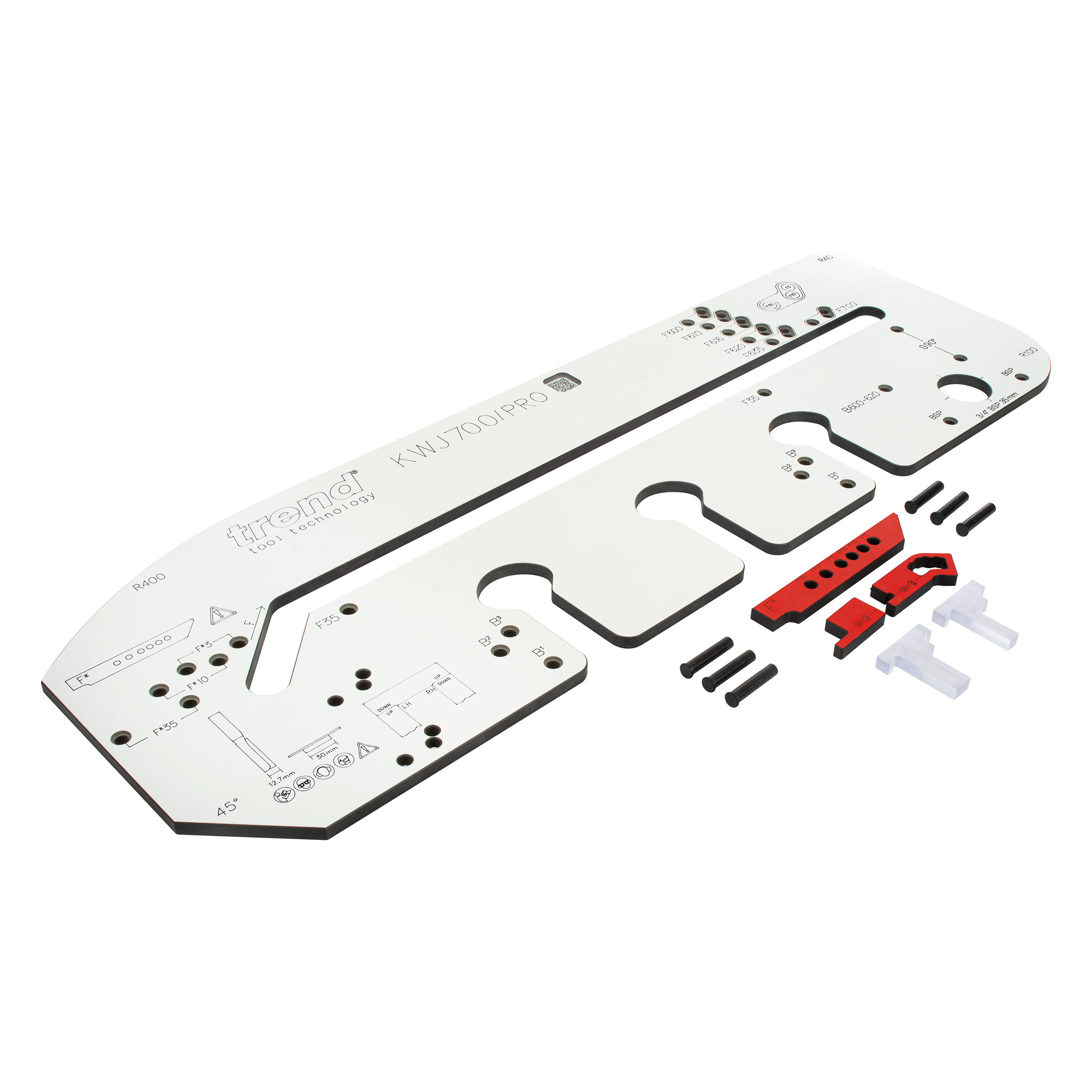

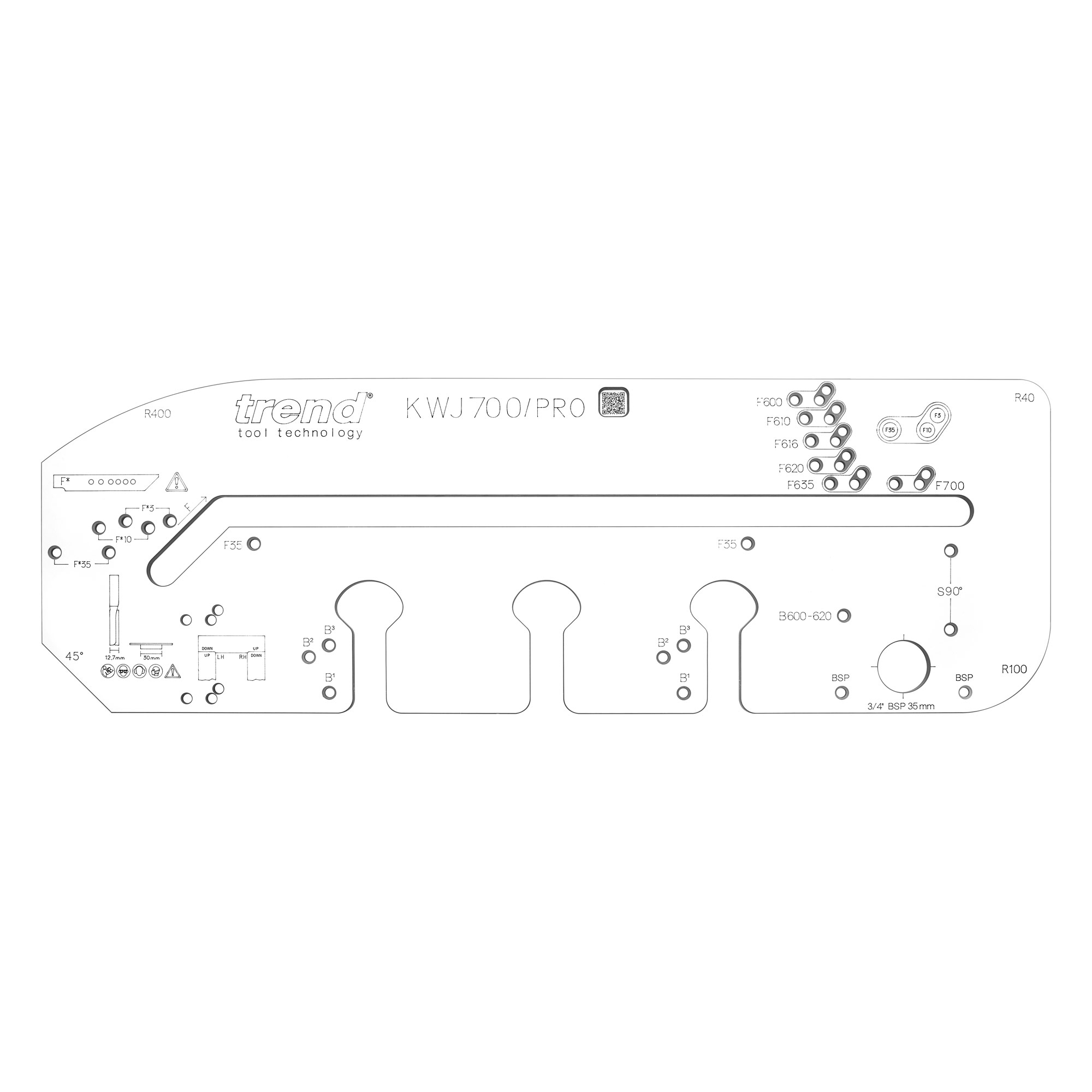

Trend 700mm Professional Multi-material Worktop Jig - Code KWJ700/PRO

"A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3mm, 10mm and 35mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops.

Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.

Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.

Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.

Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ÔSlimlineÕ connection bolts.

Indexed Backsets for 600, 610, 616, 620, 635, and 700mm worktops for standard 90¼ installations.

400mm Radius for breakfast bar and peninsula trimming.

R100mm, R40mm and 45¡ Corners for edge finishing.

90¡ Straight Cuts for accurate skimming and trimming.

35mm Hinge / ?Ó BSP Recess for surface-mount monobloc tap and concealed hinge installation.

CNC-Machined Compact Grade HPL provides precision, strength and durability

8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset.

8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45¡ corner finishing.

*Patent Pending. See www.trend-uk.com/patent for information."

Specifications

  • Length=1010 mm
  • Width=340 mm
  • Thickness=12 mm
  • Weight=5.5 kg
  • Insets=3/10/35 mm
  • Backsets=600/610/616/620/635/700 mm
  • Bolt Recesses=3
  • Bolt Recess Centres=175 mm
  • Corner Radius=40/100 mm
  • Peninsular Radius=400 mm
  • Requires:
  • Guide Bush=30 mm
  • Router Cutter=12.7mm dia. x 50 mm length
  • Plunge Router=1/2inch
  • F-Clamps=min. 80 mm throat x 2

General Information

Nett Weight (kg): 5463

Gross Weight (kg): 6059

Barcode SKU: 5027654089668

Warranty Period: 12 months

Intrastat Code: 8466202000

Packaged Size: Dimensions not currently available

Brand: Trend

Identifier: KWJ700/PRO
