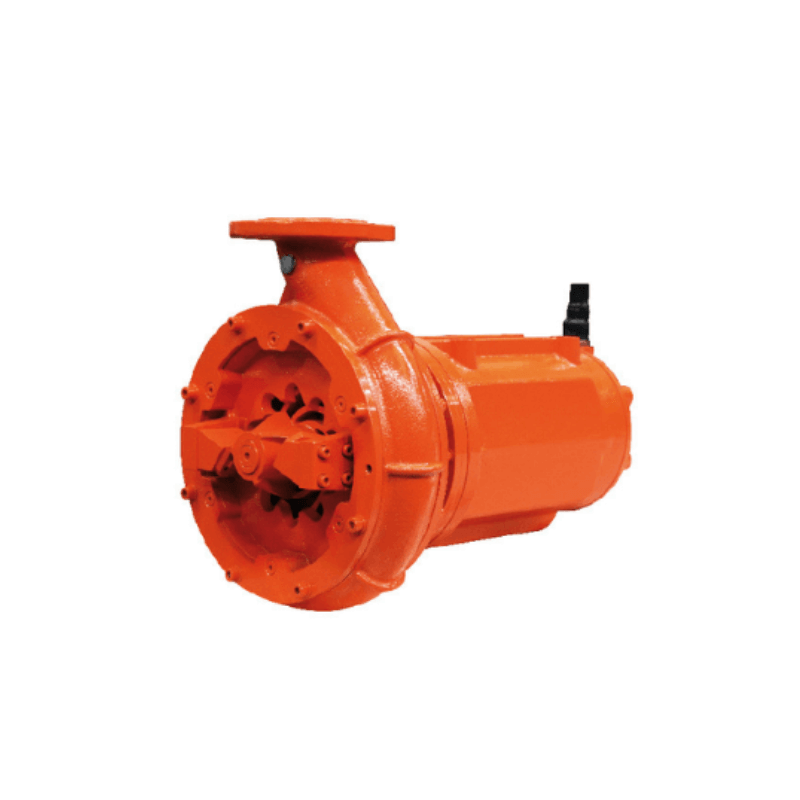

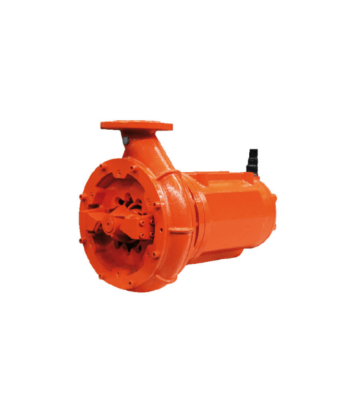

TT Pumps Cri-Man PTS 65-150 Series - Submersible Chopper pump

The PTS range of heavy-duty chopper pumps has been designed for farming and biogas applications with a 12% total solids handling capacity. When used within slurry handling applications the PTS resolves the issue of heavy and fibrous solids, such as straw and sawdust, from causing blockages in standard pumps.

The heavy-duty cutting system consists of a serrated suction cover, cutting blades and an open multi-channel impeller that further reduces the risk of blockages.

Cri-Man's PTS range is available with a standard motor or a fully ATEX-approved design. T-T can also provide specialist coatings for additional resistance in abrasive applications and for high and low pH levels.

Specifications

Type	Code	Curve	Output		Discharge		Maximum		kg	ATEX / Standard
Type	Code	Curve	Amps	kW	mm	inch	Head m	Capacity l/sec	kg	ATEX / Standard
PTS 7.5-65 400V/3Ph	PCR/PTS7.5-65/3	A	15.3	7.5	65	2½	22.3	33	125	Standard
PTS 9-65 400V/3Ph	PCR/PTS9-65/3	B	19.2	9.0	65	2½	24.8	35	130	Standard
PTSEX 2.2-80N 400V/3Ph	PCR/PTSEX2.2-80N-1	D	5.3	2.2	80	3	10.7	28	74	-
PTS 11-65 400V/3Ph	PCR/PTS11-65/3	C	22.4	11.0	65	2½	28.8	36	191	Standard
PTS 2.2-80N 400V/3Ph	PCR/PTS2.2-80N	D	4.9	2.2	80	3	10.7	28	74	Standard
PTS 3-80N 400V/3Ph	PCR/PTS3-80N	E	6.4	3.0	80	3	12.9	27	77	Standard
PTS 4-80N 400V/3Ph	PCR/PTS4-80N	F	9.1	4.0	80	3	14.7	30	78	Standard
PTS 15-80N 400V/3Ph	PCR/PTS15-80N	G	31.2	15.0	80	3	38.9	32	168.5	Standard
PTS 18.5-80N 400V/3Ph	PCR/PTS18.5-80N	H	36.5	18.5	80	3	45.5	39	183	Standard
PTS 4-100 400V/3Ph	PCR/PTS4-100/3	I	9.1	4.0	100	4	9.8	38	88	Standard
PTS 5.5-100 400V/3Ph	PCR/PTS5.5-100/3	J	11.4	5.5	100	4	12	42	122	Standard
PTS 2.2-80 400V/3Ph	PCR/PTS2.2-80/3	-	-	-	-	-	-	-	76.5	-
PTS 7.5-100 400V/3Ph	PCR/PTS7.5-100/3	K	15.3	7.5	100	4	14.7	45	128	Standard
PTS 9-100 400V/3Ph	PCR/PTS9-100/3	L	19.2	9.0	100	4	16.1	48	133	Standard
PTS 11-150 400V/3Ph	PCR/PTS11-150/3	M	22.4	11.0	150	6	12.9	105	213	Standard
PTS 15-150 400V/3Ph	PCR/PTS15-150/3	N	30	15.0	150	6	15.5	111	226	Standard
PTS 18.5-150 400V/3Ph	PCR/PTS18.5-150/3	O	36	18.5	150	6	18	129	229	Standard
PTSEX 7.5-65 400V/3Ph	PCR/PTSEX7.5-65/3	A	15.8	7.5	65	2½	22.3	33	125	ATEX
PTSEX 9-65 400V/3Ph	PCR/PTSEX9-65/3	B	19	9.0	65	2½	24.8	35	130	ATEX
PTSEX 11-65 400V/3Ph	PCR/PTSEX11-65/3	C	23.5	11.0	65	2½	28.8	36	191	ATEX
PTSEX 2.2-80N 400V/3Ph	PCR/PTSEX2.2-80N	D	5.3	2.2	80	3	10.7	28	74	ATEX
PTSEX 3-80N 400V/3Ph	PCR/PTSEX3-80N	E	6.4	3.0	80	3	12.9	27	77	ATEX
PTSEX 4-80N 400V/3Ph	PCR/PTSEX4-80N	F	9.1	4.0	80	3	14.7	30	78	ATEX
PTSEX 15-80N 400V/3Ph	PCR/PTSEX15-80N	G	31.2	15.0	80	3	38.9	32	168.5	ATEX
PTSEX 18.5-80N 400V/3Ph	PCR/PTSEX18.5-80N	H	36.5	18.5	80	3	45.5	39	183	ATEX
PTSEX 4-100 400V/3Ph	PCR/PTSEX4-100/3	I	9.1	4.0	100	4	9.8	38	88	ATEX
PTSEX 5.5-100 400V/3Ph	PCR/PTSEX5.5-100/3	J	12.5	5.5	100	4	12	42	122	ATEX
PTSEX 7.5-100 400V/3Ph	PCR/PTSEX7.5-100/3	K	15.8	7.5	100	4	14.7	45	128	ATEX
PTSEX 9-100 400V/3Ph	PCR/PTSEX9-100/3	L	19	9.0	100	4	16.1	48	133	ATEX
PTSEX 11-150 400V/3Ph	PCR/PTSEX11-150/3	M	23.5	11.0	150	6	12.9	105	213	ATEX
PTSEX 15-150 400V/3Ph	PCR/PTSEX15-150/3	N	30	15.0	150	6	15.5	111	226	ATEX
PTSEX 18.5-150 400V/3Ph	PCR/PTSEX18.5-150/3	O	36	18.5	150	6	18	129	229	ATEX

Brand: TT Pumps

Identifier: PCR/PTS7.5-65/3
