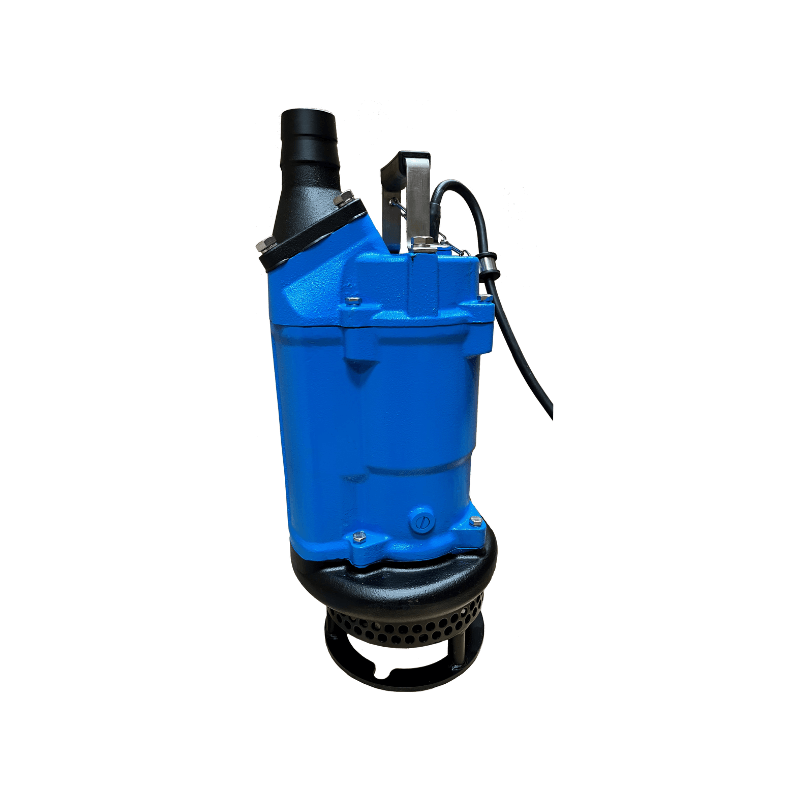

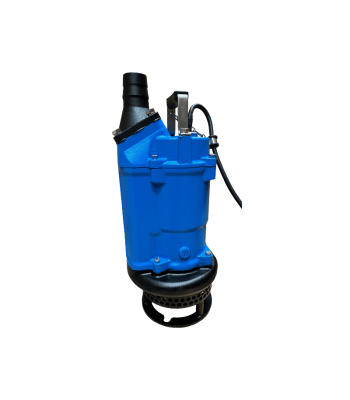

TT Pumps KTA - Submersible Slurry Pump

The KTA Range of submersible slurry pumps are available with 2 or 4-pole motors for an increased lifetime and easy maintenance.

A high chrome impeller combined with an agitator allows for pumping heavy slurry, while its slim design and top discharge enable installation in tight spaces, such as bentonite mixed water in foundation works or muddy/sandy water in civil engineering works.

FEATURES

  • Maximum capacity: up to 108.3l/sec
  • Maximum head: up to 42m
  • Agitator
  • Discharge: 50mm (2") to 200mm (8")
  • Power: 1.5kW to 37kW
  • Power supply: three-phase 400V ±10%, 50Hz
  • Insulation class: F
  • Protection class: IP68
  • Cable length: 15m
  • Maximum water temperature: up to 40°C
  • Maximum water depth: 25m
  • Double mechanical seal

Applications

  • Pumping heavy liquids

Benefits

  • British design
  • Lightweight
  • Heavy-duty design

Specifications

Type Code Curve Output Discharge Maximum Free
Passage
mm
Cable*
m
kg Complete With
Amps kW mm inch Head
m
Capacity
l/sec
KTA 50 1.5 TTP/KTA50-1.5 A 3.5 1.5 50 2 20 8.3 10 15 37 2-Pole Motor
KTA 50 2.2 TTP/KTA50-2.2 B 5.0 2.2 50 2 25 8.3 10 15 40 2-Pole Motor
- PO/KTA80-460 - - - - - - - - - 108.5 -
KTA 80 3.7 TTP/KTA80-3.7 C 7.7 3.7 80 3 30 16.6 10 15 69 2-Pole Motor
KTA 100 3.7 TTP/KTA100-3.7 D 7.7 3.7 100 4 18 25 10 15 69 2-Pole Motor
KTA 80 4 TTP/KTA80-4 E 10.2 4.0 80 3 14.8 27.5 30 15 108.5 4-Pole Motor
KTA 100 6 TTP/KTA100-6 F 13.8 6.0 100 4 16.9 40 30 15 141 4-Pole Motor
KTA 150 9 TTP/KTA150-9 G 19.5 9.0 150 6 21.5 53.3 30 15 171 4-Pole Motor
KTA 200 15 TTP/KTA200-15 H 30.1 15.0 200 8 22 103.3 30 15 260 4-Pole Motor
KTA 200 22 TTP/KTA200-22 I 42 22.0 200 8 32 100 30 15 408 4-Pole Motor
KTA 200 30 TTP/KTA200-30 J 57.6 30.0 200 8 37 108.3 30 15 510 4-Pole Motor
KTA 200 37 TTP/KTA200-37 K 69.8 37.0 200 8 42 108.3 30 15 535 4-Pole Motor

Brand: TT Pumps

Identifier: TTP/KTA50-1.5
