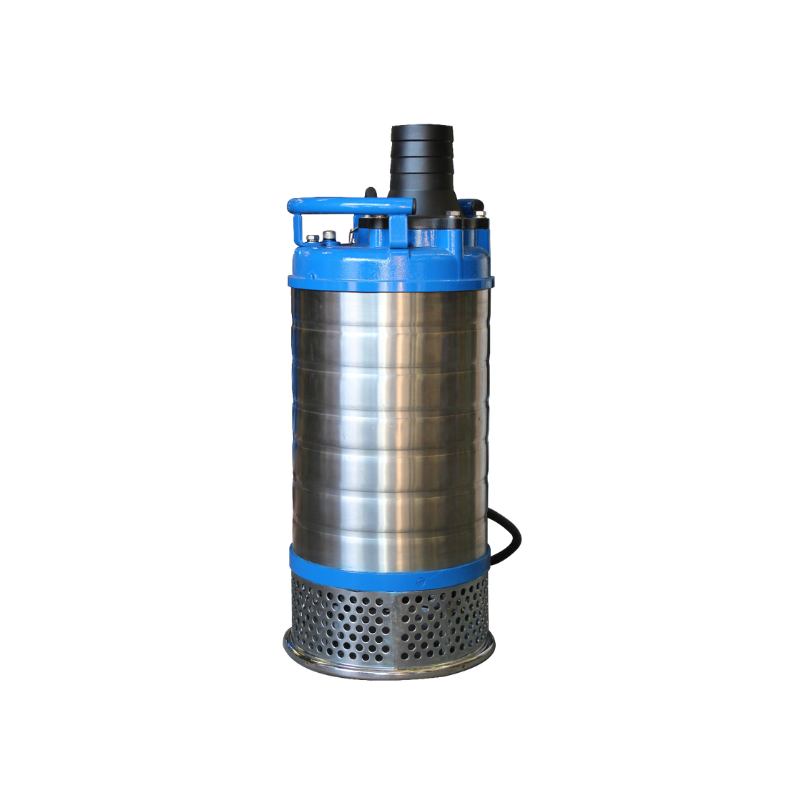

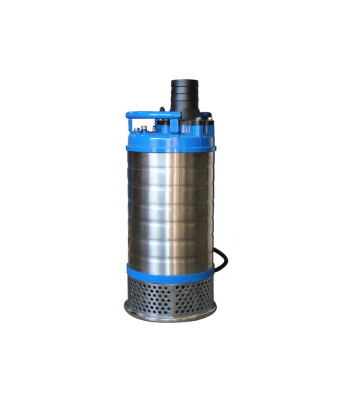

1158.00 2024-12-21The KTS, from our Kino Titan Range of contractors pumps, is a compact, high-performance submersible drainage pump with exceptional durability for handling abrasive liquids, widely used in general construction and civil engineering.
These pumps are designed for continuous operation, and feature a stainless steel outer casing and cast iron inner casing, utilising a dynamically balanced high chrome steel impeller and double mechanical seal.
The KTS Range incorporates effective motor cooling due to the discharge channel cast as part of the motor housing and hermetically sealed motor with built-in thermal protection.
| Type | Code | Curve | Output | Discharge | Maximum | Free Passage mm | Cable* m | kg | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Amps | kW | mm | inch | Head m |
Capacity l/sec |
||||||
| KTSM 50 1.5 | TTP/KTS50-1.5M | A | 10 | 1.5 | 50 | 2 | 21 | 8.3 | 8.5 | 15 | 37 |
| KTSM 80 1.5 | TTP/KTS80-1.5M | B | 10 | 1.5 | 80 | 3 | 14 | 11.6 | 8.5 | 15 | 37 |
| KTS 50 1.5 | TTP/KTS50-1.5 | A | 3.5 | 1.5 | 50 | 2 | 21 | 8.3 | 8.5 | 15 | 37 |
| KTS 80 1.5 | TTP/KTS80-1.5 | B | 3.5 | 1.5 | 80 | 3 | 14 | 11.6 | 8.5 | 15 | 37 |
| KTS 50 2.2 | TTP/KTS50-2.2 | C | 5.0 | 2.2 | 50 | 2 | 25 | 8.8 | 8.5 | 15 | 40 |
| KTS 80 2.2 | TTP/KTS80-2.2 | D | 5.0 | 2.2 | 80 | 3 | 18.5 | 15.2 | 8.5 | 15 | 40 |
| KTS 50 3.7 | TTP/KTS50-3.7 | E | 7.7 | 3.7 | 50 | 2 | 32 | 10 | 8.5 | 15 | 58 |
| KTS 80 3.7 | TTP/KTS80-3.7 | F | 7.7 | 3.7 | 80 | 3 | 32 | 16.6 | 8.5 | 15 | 58 |
| KTS 100 3.7 | TTP/KTS100-3.7 | G | 7.7 | 3.7 | 100 | 4 | 18 | 26.3 | 8.5 | 15 | 59 |
| KTS 80 5.5 | TTP/KTS80-5.5 | H | 11.4 | 5.5 | 80 | 3 | 35 | 20 | 8.5 | 15 | 66 |
| KTS 100 5.5 | TTP/KTS100-5.5 | I | 11.4 | 5.5 | 100 | 4 | 23 | 29.1 | 8.5 | 15 | 67 |
| KTS 100 7.5 | TTP/KTS100-7.5 | J | 15 | 7.5 | 100 | 4 | 41 | 24.4 | 11.5 | 15 | 108 |
| KTS 150 7.5 | TTP/KTS150-7.5 | K | 15 | 7.5 | 150 | 6 | 32 | 36.1 | 19.5 | 15 | 110 |
| KTS 100 11 | TTP/KTS100-11 | L | 22 | 11.0 | 100 | 4 | 48.5 | 24 | 11.5 | 15 | 123 |
| KTS 150 11 | TTP/KTS150-11 | M | 22 | 11.0 | 150 | 6 | 34 | 41.6 | 19.5 | 15 | 125 |
| KTS 100 15 | TTP/KTS100-15 | N | 29.5 | 15.0 | 100 | 4 | 57 | 24 | 19.5 | 15 | 145 |
| KTS 150 15 | TTP/KTS150-15 | O | 29.5 | 15.0 | 150 | 6 | 40 | 46.6 | 19.5 | 15 | 146 |
