Manufacturer: TT Pumps
Warranty: Click here for info
List Price: £1,312.50 (£1,575.00 inc VAT)
Web Price: (£1,043.75 ex VAT) £1,252.50 (inc VAT)

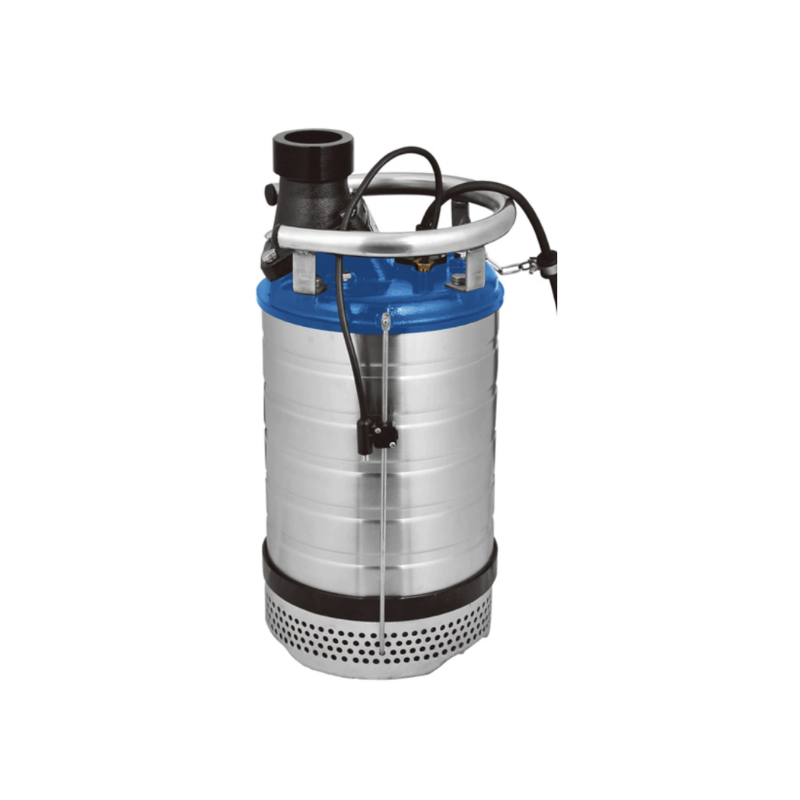

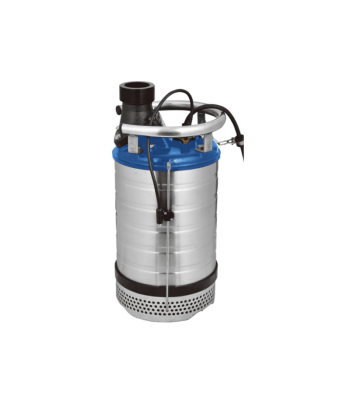

1252.50 2024-12-21The KTSE range of submersible drainage pumps comes complete with an adjustable built-in level control probe that automatically starts and stops the pump operation to maximise efficiency and reduce power consumption.
The design has improved motor cooling due to the discharge channel being part of the motor housing, allowing the range to pump at low levels for long periods.
| Type | Code | Curve | Output | Discharge | Maximum | Free Passage mm | Cable* m | kg | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Amps | kW | mm | inch | Head m | Capacity l/sec | ||||||
| KTSE 50 1.5 | TTP/KTSE50-1.5 | A | 3.5 | 1.5 | 50 | 2 | 21 | 8.3 | 8.5 | 15 | 39 |
| KTSE 80 1.5 | TTP/KTSE80-1.5 | B | 3.5 | 1.5 | 80 | 3 | 14 | 11.6 | 8.5 | 15 | 39 |
| KTSE 50 2.2 | TTP/KTSE50-2.2 | C | 5.0 | 2.2 | 50 | 2 | 25 | 8.8 | 8.5 | 15 | 42 |
| KTSE 80 2.2 | TTP/KTSE80-2.2 | D | 5.0 | 2.2 | 80 | 3 | 18.5 | 15.2 | 8.5 | 15 | 46 |
| KTSE 50 3.7 | TTP/KTSE50-3.7 | E | 7.7 | 3.7 | 50 | 2 | 32 | 10 | 8.5 | 15 | 42 |
| KTSE 80 3.7 | TTP/KTSE80-3.7 | F | 7.7 | 3.7 | 80 | 3 | 29 | 16.6 | 8.5 | 15 | 66 |
| KTSE 100 3.7 | TTP/KTSE100-3.7 | G | 7.7 | 3.7 | 100 | 4 | 18 | 26.3 | 8.5 | 15 | 61 |
| KTSE 80 5.5 | TTP/KTSE80-5.5 | H | 11.4 | 5.5 | 80 | 3 | 35 | 20 | 8.5 | 15 | 74 |
| KTSE 100 5.5 | TTP/KTSE100-5.5 | I | 11.4 | 5.5 | 100 | 4 | 23 | 29.1 | 8.5 | 15 | 75 |
| KTSE 100 7.5 | TTP/KTSE100-7.5 | J | 15 | 7.5 | 100 | 4 | 41 | 24.4 | 11.5 | 15 | 129 |
| KTSE 150 7.5 | TTP/KTSE150-7.5 | K | 15 | 7.5 | 150 | 6 | 32 | 36.1 | 19.5 | 15 | 142 |
| KTSE 100 11 | TTP/KTSE100-11 | L | 22 | 11.0 | 100 | 4 | 48.5 | 24 | 11.5 | 15 | 129 |
| KTSE 611 | TTP/KTSE150-11 | M | 22 | 11.0 | 150 | 6 | 34 | 41.6 | 19.5 | 15 | 157 |
| KTSE 100 15 | TTP/KTSE100-15 | N | 29.5 | 15.0 | 100 | 4 | 57 | 24 | 19.5 | 15 | 145 |
| KTSE 150 15 | TTP/KTSE150-15 | O | 29.5 | 15.0 | 150 | 6 | 40 | 46.6 | 19.5 | 15 | 146 |
Brand: TT Pumps
Identifier: TTP/KTSE50-1.5
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 1 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing sales@sitebox.ltd.uk. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
The KTC Range of submersible dewatering pumps has water-cooled motors to ensure a long life in both continuous and intermittent operation, providing high efficiency and energy savi... read on
Standard 1 year warranty on all TT Pump products.
