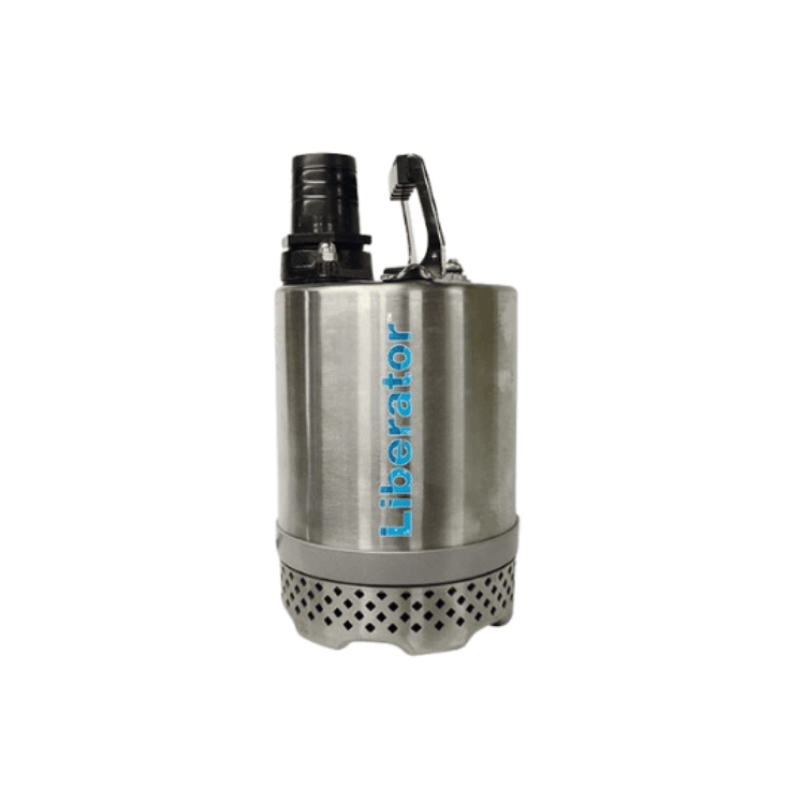

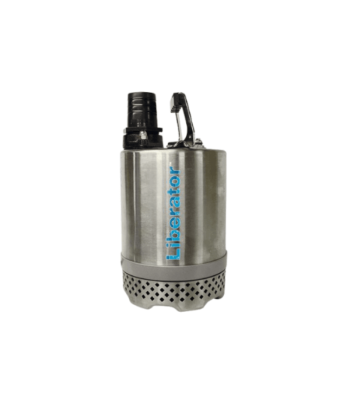

TT Pumps Liberator - Submersible Drainage Pump

Liberator® Range of 2" submersible drainage pumps are compact, light and powerful and are suitable for ground water and water containing sand and silt. The pump is used for small water features, in cellars and basements and many further applications.

FEATURES

  • 400 volt, 230 volt and 100v contractors pump
  • Compact, lightweight design, Stainless steel outer casing
  • Urethane impeller
  • Autoreset thermal protector
  • Double mechanical seal
  • 7mm solids handling
  • 0.4 - 1.5kW output
  • 50mm discharge
  • Interchangeable major components between Trencher, Liberator and PuddlePal, keeping costs down for the end user (based on motor size).

APPLICATIONS

  • Small water features
  • Cellars and basements
  • Nuisance water
  • Civil construction
  • Quarries and mining
  • Hire fleets
  • Emergencies
  • De-watering

Benefits

  • British design
  • Lightweight and easy to handle
  • Great investment for hire fleets
Type Code Curve Output Discharge Maximum Free Passage
mm
Cable*
m
kg
Amps kW mm inch Head
m
Capacity
l/sec
Liberator400 110V TTP/LIB400/110V A 6.0 0.4 50 2 11 3.8 7 10 13.5
Liberator400 230V TTP/LIB400/230VZ A 3.0 0.4 50 2 11 3.8 7 10 13
Liberator400 230V TTP/LIB400/230V A 3.0 0.4 50 2 11 3.8 7 10 13.5
Liberator750 110V TTP/LIB750/110V B 11.0 0.75 50 2 15.8 5 7 10 16.2
Liberator 1500 110V TTP/LIB1500/110V C 24 1.5 50 2 20 7.8 7 10 24.2
Liberator 1500 230V TTP/LIB1500/230V C 12.0 1.5 50 2 20 7.8 7 10 23.7
Liberator 1500 400V TTP/LIB1500/400V C 3.5 1.5 50 2 20 7.8 7 10 23.8
Liberator400 110V TTP/LIB400/110VF A 6.0 0.4 50 2 11 3.8 7 10 13
Liberator400 110VZ TTP/LIB400/110VZ A 6.0 0.4 50 2 11 3.8 7 10 13
Liberator400 230V TTP/LIB400/230VF A 3.0 0.4 50 2 11 3.8 7 10 13
Liberator750 110V TTP/LIB750/110VF B 11.0 0.75 50 2 15.8 5 7 10 16
Liberator750 110V TTP/LIB750/110VZ B 11.0 0.75 50 2 15.8 5 7 10 16
Liberator750 230V TTP/LIB750/230V B 5.4 0.75 50 2 15.8 5 7 10 16
Liberator750 230V TTP/LIB750/230VF B 5.4 0.75 50 2 15.8 5 7 10 16
Liberator400 400V/3Ph TTP/LIB400/400V A 0.9 0.4 50 2 11 3.8 7 10 13
Liberator400 110VA/1Ph*** PH/LIB400/110VA A 0.4 0.4 50 2 - - 7 10 13.3
Liberator750 230VZ TTP/LIB750/230VZ B 5.4 0.75 50 2 15.8 5 7 10 16
Liberator400 230V PH/LIB400/230VA A 3.0 0.4 50 2 - - 7 10 13
3 Discharge Option For Liberator 1500 PHS/80MMKIT - - - - - - - - - 0.1
Liberator750 400V TTP/LIB750/400V B 1.9 0.75 50 2 15.8 5 7 10 16.3
Float Switch Support Arm PHS/SUPP-SWITCH - - - - - - - - - -
