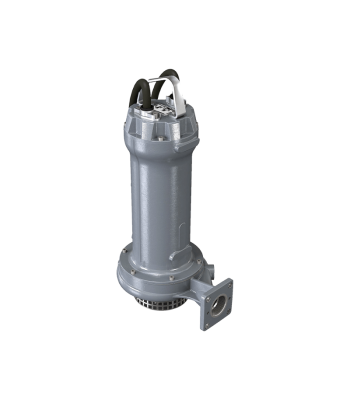

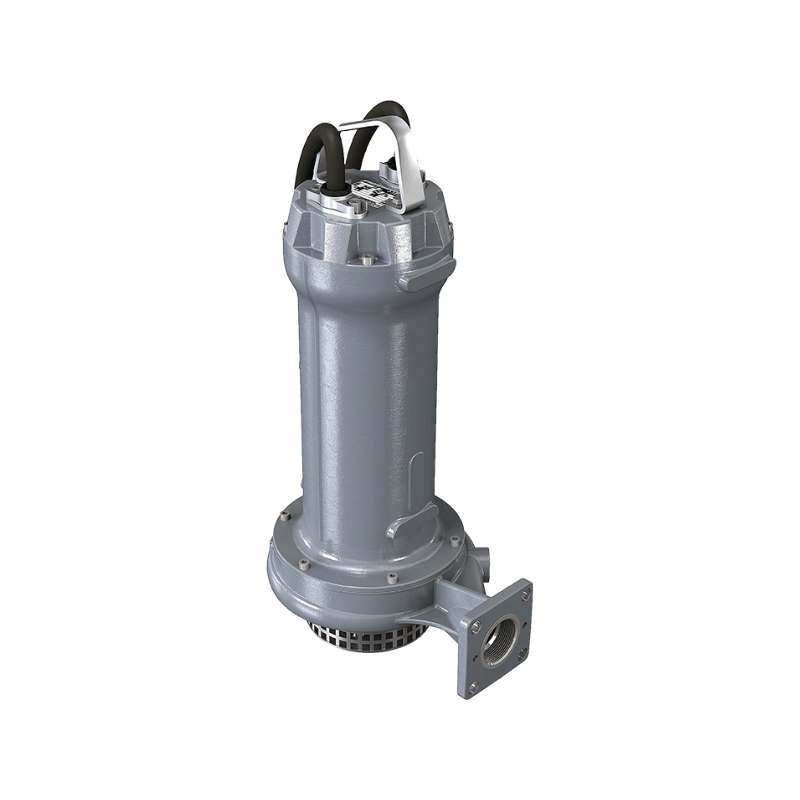

TT Pumps Zenit APG Range - High head submersible pump

Zenit's APG submersible range of large, cast iron construction drainage pumps feature open twin-channel impellers, double mechanical seals within an oil bath and an oil-filled motor.

Specifications

Type	Code	Curve	Output		Discharge		Maximum		Free Passage mm	Cable* m	kg	ATEX / Standard
Type	Code	Curve	Amps	kW	mm	inch	Head m	Capacity l/sec	Free Passage mm	Cable* m	kg	ATEX / Standard
APG 250/2/G40H 400V/3Ph	PZ/1758.001	A	3.7	1.8	40	1½	26	7.2	10	10	32	Standard
APG 300/2/G50H 400V/3Ph	PZ/1464.002	B	4.6	2.2	50	2	29	7.6	8	10	43.2	Standard
APG 400/2/G50H 400V/3Ph	PZ/1473.002	C	6.4	3.0	50	2	32	6.6	8	10	46	Standard
APG 550/2/G50H 400V/3Ph	PZ/1525.002	D	7.7	4.0	50	2	38	8.9	8	10	57.6	Standard
APG 750/2/G50H 400V/3Ph	PZ/1508.002	E	10.8	5.5	50	2	46	10.6	10	10	60.3	Standard
APG 1000/2/G50H 400V/3Ph	PZ/1509.002	F	13.7	7.5	50	2	53	10.5	10	10	68.2	Standard
APG 150/2/G40H B3AT EX	PZ/1774.200	-	2.4	1.1	40	1½	18.2	6	7	10	31.5	ATEX
APG 200/2/G40H B3AT EX	PZ/1773.200	-	3.2	1.5	40	1½	23	6	7	10	32	ATEX

Brand: TT Pumps

Identifier: PZ/1758.001
