No Stock
Quote Ref: @128809
Product ID: dgg_range
Manufacturer: TT Pumps
Warranty: Click here for info
List Price: £1,684.00 (£2,020.80 inc VAT)
Web Price: (£1,353.80 ex VAT) £1,624.56 (inc VAT)

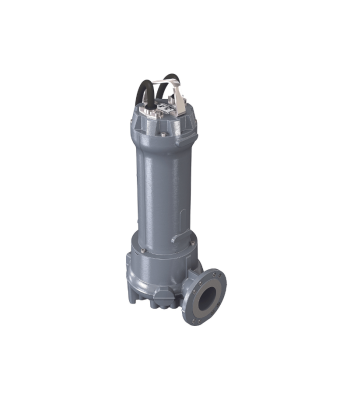

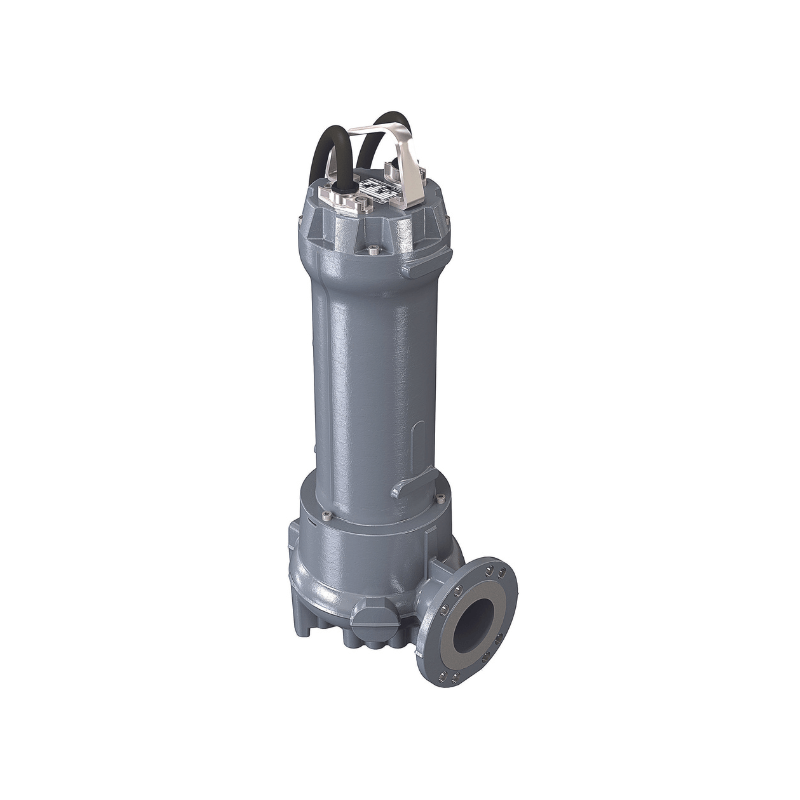

1624.56 2024-12-24With a set back vortex impeller, Zenit's DGG Range of submersible sewage pump is ideal for unstrained soiled biological wastewater and sewerage in civil lifting applications. Ideal for wastewater treatment plants, sewer systems, industrial and agricultural applications
Constructed from cast iron for longevity, Zenit's DGG range of submersible sewage pumps is designed to last.
Read more about the Grey Range.
| Type | Code | Curve | Output | Discharge | Maximum | Free Passage mm | Cable* m | kg | ATEX / Standard | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Amps | kW | mm | inch | Head m | Capacity l/sec | |||||||
| DGG 250/2/G65V B0AT 400V/3Ph | PZ/1755.001 | A | 3.7 | 1.8 | 65 | 2½ | 12.6 | 12.9 | 65 | 10 | 35 | Standard |
| DGG 300/2/G65V A0ET 400V/3ph | PZ/1438.002 | A | 4.6 | 2.2 | 65 | 2½ | 14.1 | 10 | 65 | 10 | 44.2 | Standard |
| DGG 250/2/65 B0AT 400V/3ph | PZ/1756.001 | A | 3.7 | 1.8 | 65 | 2½ | 12.6 | 14.5 | 65 | 10 | 37 | Standard |
| DGG 300/2/65 C0ET 400V/3ph | PZ/1440.002 | A | 4.6 | 2.2 | 65 | 2½ | 14 | 15.7 | 65 | 10 | 46.2 | Standard |
| DGG 400/2/65 D0ET 400V/3ph | PZ/1441.002 | A | 6.4 | 3.0 | 65 | 2½ | 17.3 | 17.7 | 65 | 10 | 50 | Standard |
| DGG 550/2/65 A0FT 400V/3ph | PZ/1517.002 | A | 7.7 | 4.0 | 65 | 2½ | 18.8 | 20.8 | 65 | 10 | 71.2 | Standard |
| DGG 750/2/65 A0FT 400V/3ph | PZ/1510.002 | A | 10.8 | 5.5 | 65 | 2½ | 21.5 | 23.8 | 65 | 10 | 73.9 | Standard |
| DGG 1000/2/65 A0FT 400V/3ph | PZ/1511.002 | A | 13.7 | 7.5 | 65 | 2½ | 24.5 | 26.9 | 65 | 10 | 81.8 | Standard |
| DGG 200/4/65 F0ET5 400V/3ph | PZ/1452.002 | A | 3.4 | 1.5 | 65 | 2½ | 9.9 | 16.5 | 65 | 10 | 55.2 | Standard |
| DGG 250/4/65 F0ET5 400V/3ph | PZ/1446.002 | A | 4.3 | 1.8 | 65 | 2½ | 10.9 | 18.0 | 65 | 10 | 58.1 | Standard |
| DGG 300/4/65 F0ET5 400V/3ph | PZ/1447.002 | A | 5.2 | 2.2 | 65 | 2½ | 12.3 | 19.3 | 65 | 10 | 58.2 | Standard |
| DGG 400/4/65 G0ET5 400V/3ph | PZ/1460.002 | A | 6.72 | 3.0 | 65 | 2½ | 12.3 | 23.1 | 65 | 10 | 59.8 | Standard |
| DGG 250/2/80 F0AT5 400V/3ph | PZ/1757.001 | A | 3.7 | 1.8 | 80 | 3 | 7.3 | 17.2 | 80 | 10 | 35 | Standard |
| DGG 300/2/80 G0ET5 400V/3ph | PZ/1443.002 | A | 4.6 | 2.2 | 80 | 3 | 8.5 | 13.5 | 80 | 10 | 44.2 | Standard |
| DGG 400/2/80 H0ET5 400V/3ph | PZ/1444.002 | A | 6.3 | 3.0 | 80 | 3 | 12.3 | 16.8 | 80 | 10 | 47 | Standard |
| DGG 550/2/80 N0FT5 400V/3ph | PZ/1518.002 | A | 7.7 | 4.0 | 80 | 3 | 16.3 | 23.1 | 80 | 10 | 71.6 | Standard |
| DGG 750/2/80 A0FT 400V/3ph | PZ/1512.002 | A | 10.8 | 5.5 | 80 | 3 | 16.4 | 28.0 | 80 | 10 | 74.3 | Standard |
| DGG 1000/2/80 A0FT 400V/3ph | PZ/1513.002 | A | 13.7 | 7.5 | 80 | 3 | 20.8 | 36.5 | 80 | 10 | 82.2 | Standard |
| DGG 150/4/80 L0AT5 400V/3PH | PZ/1765.001 | A | 3.0 | 1.1 | 80 | 3 | 5.5 | 18 | 60 | 10 | 39 | Standard |
| DGG 200/4/80 E0ET5 400V/3ph | PZ/1453.002 | A | 3.4 | 1.5 | 80 | 3 | 9.5 | 18 | 80 | 10 | 55.2 | Standard |
| DGG 250/4/80 E0ET5 400V/3ph | PZ/1450.002 | A | 4.3 | 1.8 | 80 | 3 | 10.2 | 25.2 | 80 | 10 | 58.1 | Standard |
| DGG 300/4/80 E0ET5 400V/3ph | PZ/1451.002 | A | 5.2 | 2.2 | 80 | 3 | 11.0 | 23.1 | 80 | 10 | 58.2 | Standard |
| DGG 400/4/80 M0ET5 400V/3ph | PZ/1461.002 | A | 6.7 | 3.0 | 80 | 3 | 10.9 | 27.6 | 80 | 10 | 59.8 | Standard |
| DGG 550/4/80 D0FT5 400V/3ph | PZ/1519.002 | A | 8.4 | 4.0 | 80 | 3 | 13.8 | 30.0 | 60 | 10 | 97 | Standard |
| DGG 750/4/80 D0FT5 400V/3ph | PZ/1520.002 | A | 11.9 | 5.5 | 80 | 3 | 16.6 | 40.5 | 60 | 10 | 97.2 | Standard |
| DGG 200/4/100 E0ET5 400V/3ph | PZ/1470.002 | A | 3.4 | 1.5 | 100 | 4 | 7.7 | 17 | 100 | 10 | 58.2 | Standard |
| DGG 250/4/100 E0ET5 400V/3ph | PZ/1454.002 | A | 4.3 | 1.8 | 100 | 4 | 8.5 | 26.4 | 100 | 10 | 61.1 | Standard |
| DGG 300/4/100 E0ET5 400V/3ph | PZ/1455.002 | A | 5.2 | 2.2 | 100 | 4 | 9.5 | 24.8 | 100 | 10 | 61.2 | Standard |
| DGG 400/4/100 D0ET5 400V/3ph | PZ/1456.002 | A | 6.7 | 3.0 | 100 | 4 | 10.1 | 37.1 | 100 | 10 | 62.8 | Standard |
| DGG 550/4/100 G0FT5 400V/3ph | PZ/1514.002 | A | 8.4 | 4.0 | 100 | 4 | 11.5 | 44.2 | 80 | 10 | 83 | Standard |
| DGG 750/4/100 G0FT5 400V/3ph | PZ/1515.002 | A | 11.9 | 5.5 | 100 | 4 | 13.0 | 52.1 | 80 | 10 | 83.2 | Standard |
| DGG 1200/4/100 B0HT 400V/3ph | PZ/1651.001 | A | 17 | 9.0 | 100 | 4 | 19.8 | 61.3 | 100 | 10 | 177.2 | Standard |
| DGG 1500/4/100 B0HT 400V/3ph | PZ/1652.001 | A | 20.5 | 11.0 | 100 | 4 | 22.1 | 66.2 | 100 | 10 | 177.2 | Standard |
| DGG 2000/4/100 B0HT 400V/3ph | PZ/1653.001 | A | 30.8 | 15.0 | 100 | 4 | 23.3 | 70.9 | 100 | 10 | 189.2 | Standard |
| DGG 1200/4/150 A0HT 400V/3ph | PZ/1654.001 | A | 17 | 9.0 | 150 | 6 | 10.9 | 91.6 | 125 | 10 | 212 | Standard |
| DGG 1500/4/150 A0HT 400V/3ph | PZ/1655.001 | A | 20.5 | 11.0 | 150 | 6 | 12.7 | 95.8 | 125 | 10 | 212 | Standard |
| DGG 2000/4/150 A0HT 400V/3ph | PZ/1656.001 | A | 30.8 | 15.0 | 150 | 6 | 15.5 | 105.6 | 125 | 10 | 224 | Standard |
| DGG 75/2/G40V B3AM EX | PZ/1777.200 | - | 4.2 | 0.55 | 40 | 1½ | 8.6 | 5 | 35 | 10 | 26 | ATEX |
| DGG 75/2/G40V B3AT EX | PZ/1776.200 | - | 1.4 | 0.55 | 40 | 1½ | 8.6 | 5 | 35 | 10 | 26 | ATEX |
| DGG 100/2/G40V B3AM EX | PZ/1779.200 | - | 4.8 | 0.75 | 40 | 1½ | 11 | 5 | 35 | 10 | 27 | ATEX |
| DGG 100/2/G40V B3AT EX | PZ/1778.200 | - | 1.7 | 0.75 | 40 | 1½ | 11 | 5 | 35 | 10 | 27 | ATEX |
| DGG 150/2/G40V C3AM EX | PZ/1781.200 | - | 6.6 | 1.1 | 40 | 1½ | 14.1 | 7 | 35 | 10 | 28.5 | ATEX |
| DGG 75/2/G50H A3AM EX | PZ/1785.200 | - | 4.2 | 0.55 | 50 | 2 | 7.2 | 6 | 50 | 10 | 27 | ATEX |
| DGG 150/2/G40V C3AT EX | PZ/1780.200 | - | 2.4 | 1.1 | 40 | 1½ | 14.1 | 7 | 35 | 10 | 28.5 | ATEX |
| DGG 75/2/G50H A3AT EX | PZ/1784.200 | - | 1.4 | 0.55 | 50 | 2 | 7.2 | 6 | 50 | 10 | 27 | ATEX |
| DGG 100/2/G50H A3AM EX | PZ/1787.200 | - | 4.8 | 0.75 | 50 | 2 | 9.6 | 7 | 50 | 10 | 28 | ATEX |
| DGG 100/2/G50H A3AT EX | PZ/1786.200 | - | 1.7 | 0.75 | 50 | 2 | 9.8 | 7 | 50 | 10 | 28 | ATEX |
