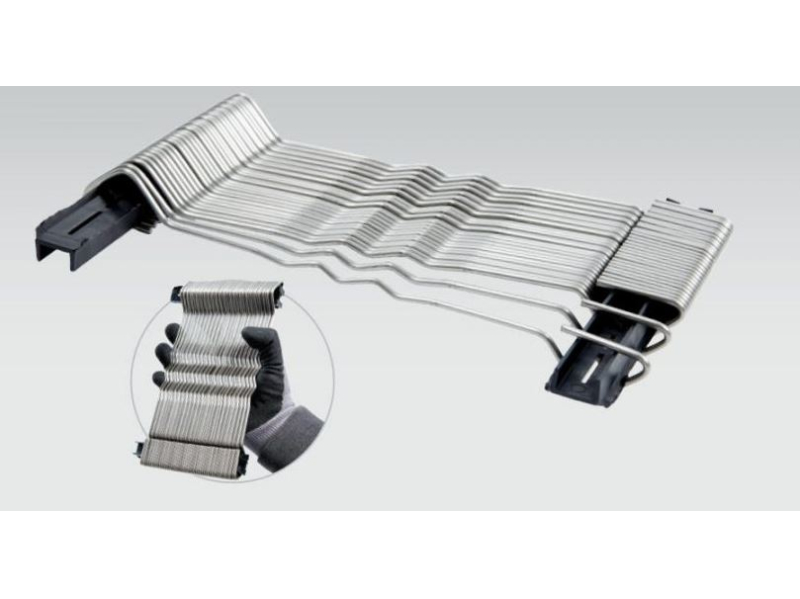

VISTA VE4 Light Duty Housing Ties per 250 (Available in different sizes) - Code VE4-STST

SIZES

• 200mm
• 225mm
• 250mm
• 275mm

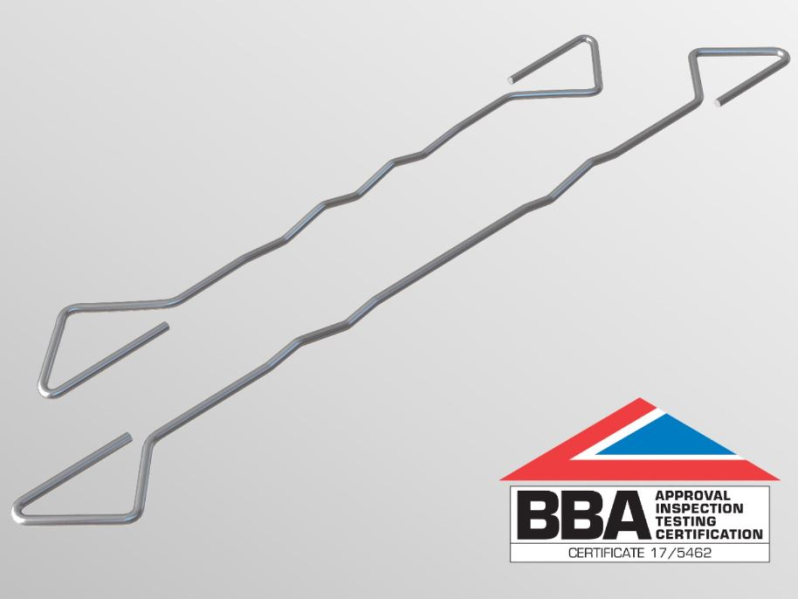

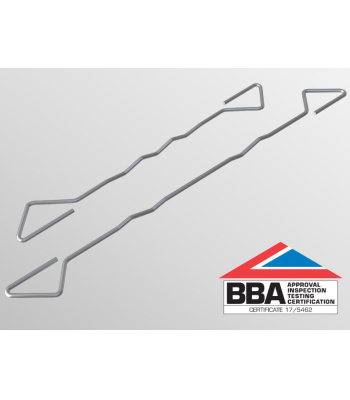

• BBA Approved light duty housing ties (Agrément Certificate: 17/5462).

• Application - A light duty wall tie used in box-form domestic dwellings that have inner and outer leaves of a similar thickness. They are suitable for buildings with a maximum height if 10m and for flat sites where the basic wind speed is up to 27m/s and altitude is not greater than 150m above sea level.
• Design - Multidrip feature to prevent moisture travelling across the cavity, it can be installed either way up. The 275 tie features two offset drips to ensure a drip always sits in the clear cavity.
• Material - Manufactured from grade 304 stainless steel.
• Behaviour in relation to fire - Non combustible (as defined in the national Building Regulations).
• Durability - Excellent corrosion resistance and a service life of not less than 60 years.
• Thermal performance - In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity.
• Compliance - Tested as Type A (sound) and as Type 4 (strength) to BS EN 845-1.
• Specification – Available for specification on the NBS Source platform.
