Product ID: WARRIOR_145VA12
Related Products: See all related products
Manufacturer: Warrior Winches
List Price: £579.60 (£695.52 inc VAT)
Web Price: (£532.29 ex VAT) £638.75 (inc VAT)

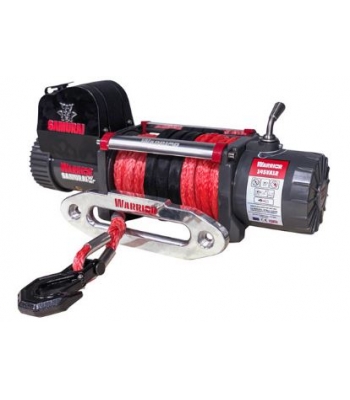

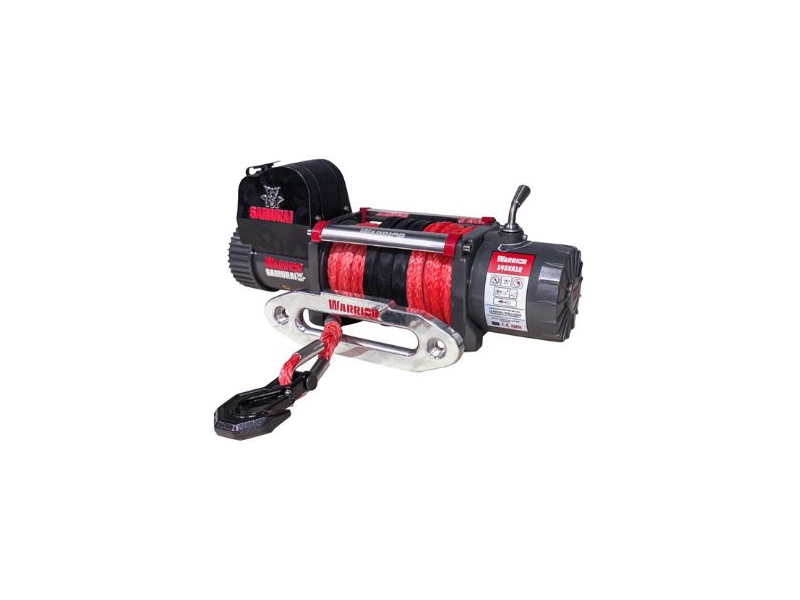

638.75 2024-08-02Superb high specification winch. Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing. Comes with aluminium fairlead and stainless steel and fittings as standard. The 12V version comes complete with Heavy Duty integrated wireless remote.
Rated Line Pull | 14500 lbs (6577kg) |
---|---|
Motor | 12v: 7.2hp / 5.4kw |
Gearing | 253:1 |
Braking Action | External Brake |
Drum Size - Dia x L | 63 x 223mm(2.48 x 8.77 in) |
Cable - Dia x L | 11mm x 25m(0.43 in x 82 ft) |
Dimensions | 593 x 160 x 248mm(23.3 x 6.3 x 9.8 in) |
Weight kg | 36 kg (79.3 lbs) |
Certification | CE Certified |
Layer of Rope/Cable | Line Pull: lbs(kgs) |
---|---|
1 | 14500 (6577) |
2 | 11519 (5224) |
3 | 9556 (4334) |
4 | 8163 (3702) |
Line Pulllbs (kgs) | Line Speed 12vft/min (m/min) | Line Speed 24vft/min (m/min) | Amp Draw12v | Amp Draw24v |
---|---|---|---|---|
0 | 31.16(9.5) | 39.3 (12.0) | 60 | 50 |
6000 (2728) | 12.46 (3.8) | 13.8 (4.2) | 200 | 140 |
10000 (4545) | 5.57 (1.7) | 8.2 (2.5) | 310 | 190 |
12000 (5443) | 4.92 (1.5) | 5.9 (1.8) | 380 | 230 |
14500 (6577) | 3.28 (1.0) | 4.26 (1.3) | 430 | 260 |
Brand: Warrior Winches
Identifier: WARRIOR 145VA12
