Quote Ref: @94042
Product ID: 120VA12_120VA24
Manufacturer: Warrior Winches
Price: (£505.50 ex VAT) £606.60 (inc VAT)

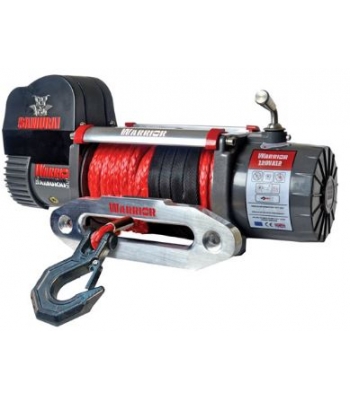

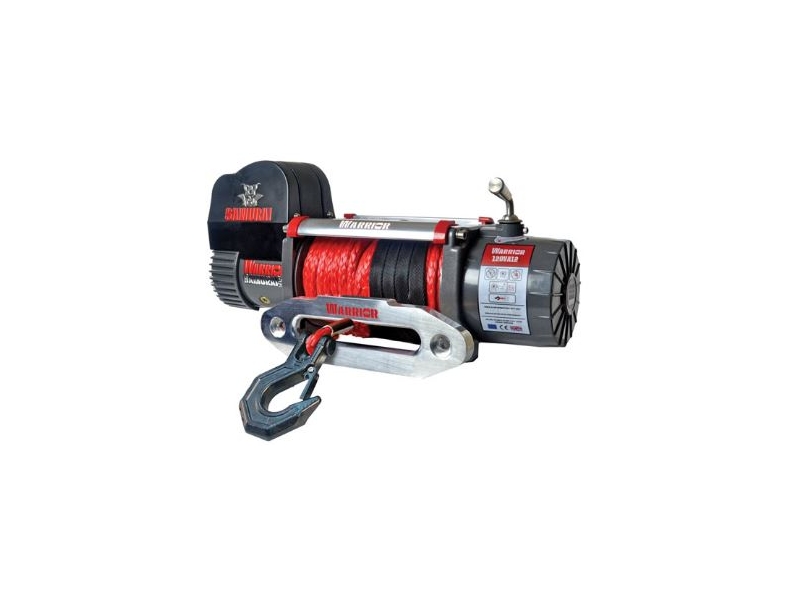

606.60 2024-12-20Our premium “Next Generation” Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum, perfect for Armortek Ropes.
Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with Aluminium Hawse Fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.
| Rated Line Pull | 12000 lbs (5443 kg) |
|---|---|
| Motor | 12v : 6.7hp / 5.0kw 24v : 8.0hp / 6.0kw* 24v now discontinued |
| Gearing | 253:1 |
| Braking Action | External Brake |
| Drum Size - Dia x L | 63 x 223mm(2.48 x 8.78 in) |
| Cable - Dia x L | 11mm x 25m(0.43 in x 82 ft) |
| Dimensions | 559 x 160 x 248mm(22 x 6.3 x 9.8 in) |
| Mounting Pattern | 254 x 114 mm(10 x 4.5 in) |
| Weight kg | 32 kg (71 lbs) |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 12000 (5443) | 15.1 (4.6) |
| 2 | 9563 (4338) | 34.1 (10.4) |
| 3 | 7907 (3586) | 57.7 (17.6) |
| 4 | 6755 (3064) | 83.7 (25.5) |
| Line Pulllbs (kgs) | Line Speed 12vft/min (m/min) | Line Speed 24vft/min (m/min) | Amp Draw12v | Amp Draw24v |
|---|---|---|---|---|
| 0 | 29.5 (9.0) | 37.7 (11.5) | 50 | 45 |
| 6000 (2721) | 10.5 (3.2) | 12.1 (3.7) | 240 | 140 |
| 8000 (3629) | 8.2 (2.5) | 9.8 (3.0) | 280 | 180 |
| 10000 (4535) | 5.9 (1.8) | 7.2 (2.2) | 320 | 220 |
| 12000 (5443) | 4.6 (1.4) | 5.2 (1.6) | 380 | 250 |
Old codes: 120SA12/120SA24
*24v (120VA24) now discontinued
Brand: Warrior Winches
Identifier: 120VA12 120VA24
