Available (Estimated Delivery Time 5-7 Working Days)
Quote Ref: @107217
Product ID: WINCH_60ENS
Related Products: See all related products
Manufacturer: Warrior Winches
Price: (£1,047.49 ex VAT) £1,256.99 (inc VAT)

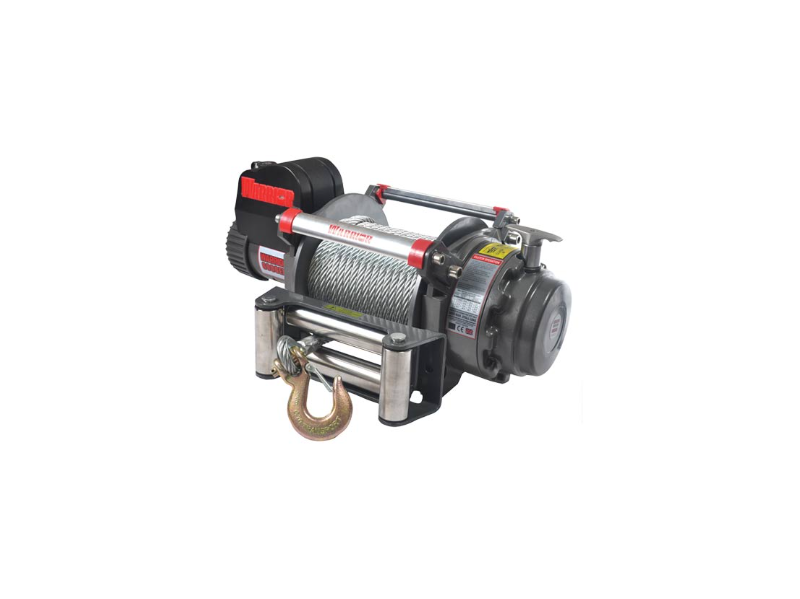

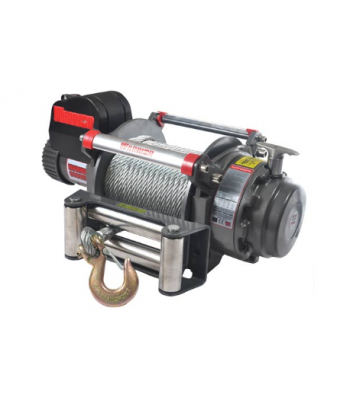

1256.99 2024-08-02The EN Series winches have been developed for the professional operator. The winches have been designed to ensure that as part of an installation solution they can meet the requirements of EN 14492:1. Additional features include 10: 1 drum/rope ratio, 2:1 rope ratio, double rope fixing. As well as these special features the winches come complete with all the standard Warrior features such as high quality motors, full sealing and stainless steel fairleads and fittings.
| Rated Line Pull | 13227 lbs (6000 kg) |
|---|---|
| Motor | 12v : 7hp / 4.9kw - 24v : 7.9h |
| Gearing | 430:1 |
| Braking Action | Auto in the drum |
| Drum Size - Dia x L | 114 x 209mm(4.49 x 8.23 in) |
| Cable - Dia x L | 12mm x 26.5m(0.47 in x 87 ft) |
| Dimensions | 610 x 216 x 254mm(24.02 x 8.5 x 10 in) |
| Mounting Pattern | 254 x 114.3 mm(10 x 4.5 in) |
| Weight kg | 73.5 kg (162 lbs) |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 13228 (6000) |
| 2 | 11111 (5040) |
| 3 | 9579 (4345) |
| 4 | 8417 (3818) |
| Line Pulllbs (kgs) | Line Speed 12vft/min (m/min) | Line Speed 24vft/min (m/min) | Amp Draw12v | Amp Draw24v |
|---|---|---|---|---|
| 0 | 18.0 (5.5) | 19.4 (5.9) | 90 | 40 |
| 4409 (2000) | 8.9 (2.7) | 9.2 (2.8) | 200 | 90 |
| 8818 (4000) | 6.2 (1.9) | 6.9 (2.1) | 295 | 150 |
| 13228 (6000) | 4.6 (1.4) | 5.2 (1.6) | 400 | 210 |
Brand: Warrior Winches
Identifier: WINCH_60ENS
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 7 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing sales@sitebox.ltd.uk. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
Features PROFESSIONAL DESIGN – Built for the professional operator meeting the requirements of EN 14492:1. ROPE:DRUM – Wire rope to drum ratio of 10:1 wit... read on
| Option | Price Difference | |
|---|---|---|
| 12V Electric Winch | none | |
| 24V Electric Winch | +£45.00 |
