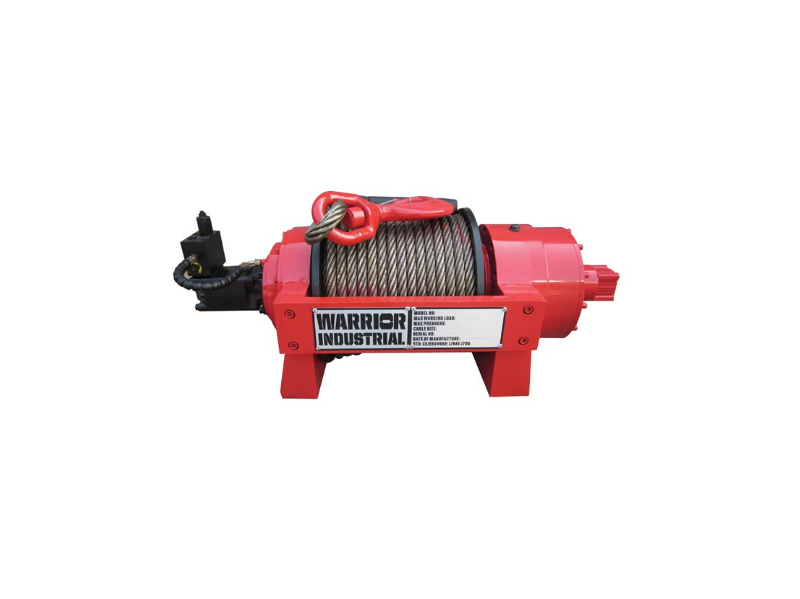

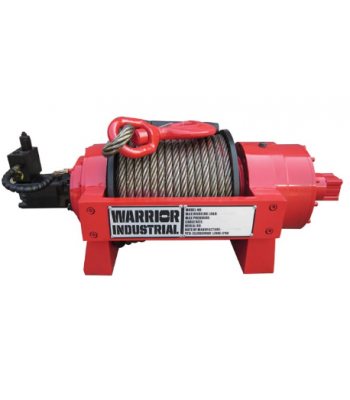

WARRIOR WINCH - JP 10 TONNE Industrial Hydraulic Winch

The complete Package. A superb heavy duty winch supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

Outstanding Features
  • Rugged High Torque Motor
  • 2 Stage Planetary Gearing
  • Complete with Balance Valve
  • Air Operated Freespool
  • Rugged and compact for Long Life
  • Heavy Duty Steel Cast Frame
  • Rope and Tensioner as Standard
SPECIFICATIONS
Rated Line Pull 22000 lbs (10000 kg)
Gearing 39:1
Braking Action Auto Hydraulic
Drum Size - Dia x L 138 x 316mm(5.43 x 12.44 in)
Cable - Dia x L 15mm x 48m(0.59 in x 157 ft)
Dimensions 830 x 390 x 320mm(32.6 x 15.3 x 12.6 in)
Mounting Pattern 431 x 64 / 192 mm(16.9 x 2.5/7.5 in)
Weight kg 188 kg (414.4 lbs)
Clutch Air Clutch
Certification CE Certified

Layer of Rope/CableLine Pull: lbs(kgs)
1 22046 (10000)
2 16889 (7661)
3 14615 (6630)
4 12881 (5843)

Line Pulllbs (kgs)Line Speedft/min (m/min)FlowL/min (G/min)PressureMpa
0 5.9 (1.8) 15 25
4000 (1814) 11.7(3.6) 30 42
8000 (3629) 19.6 (6.0) 50 85
15000 (6804) 23.6 (7.2) 60 140
22046 (10000) 29.7 (9.0) 75 175


Accessories Included

Balance Valve

Hook - 22 Ton

Steel Cable 22mm x 58m

Tensioner

Brand: Warrior Winches

Identifier: WINCH_10JP01H

Product Document Download(s)

  Product Manual

  Technical Diagram
