Zarges Fixed Roof Ladder - Roof Hatch with Hoops - Galvanised or Aluminium

Zarges fixed access ladders offer an inexpensive, modular solution to permanent roof access installations and can be configured to suit any situation from stock modules for fast, easy on-site assembly.

Available in either natural aluminium or galvanised steel (choose from options above), they are supplied with or without fall protection back hoops and with a range of entry and top exit options to suit all possible situations. See related products,

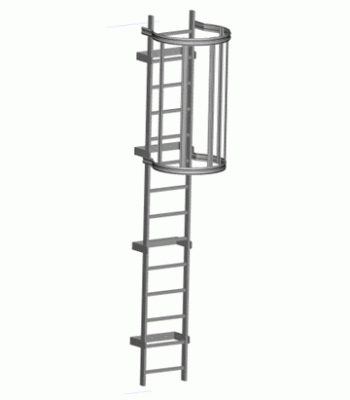

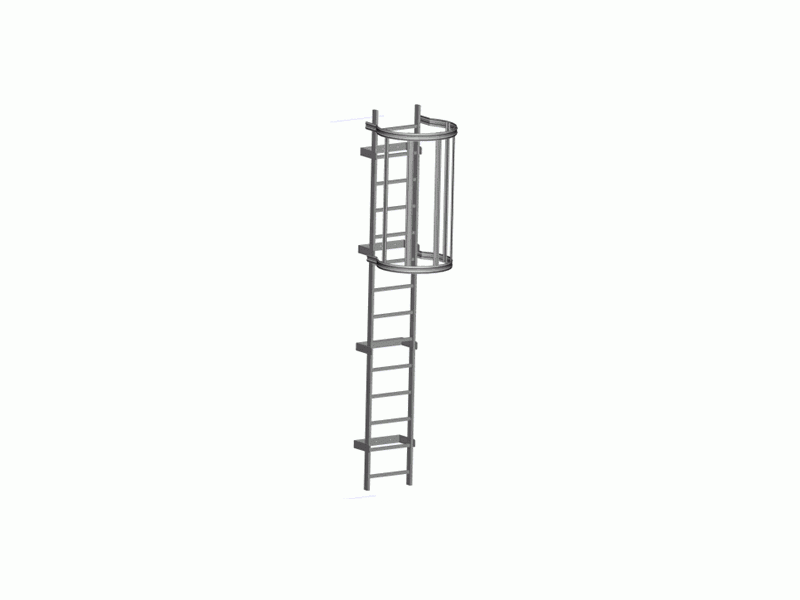

This is a fixed access ladder with safety cage and is designed for fixing vertically internally to provide permanent maintenance or escape access to and from a roof access hatch. It is supplied with strong fixing brackets for mounting the ladder 200mm off the wall (available up to 600mm on request). Please note fixing bolts are not supplied as these will be specified by your installer.

Designed and manufactured to conform to the latest European standard for fixed access ladders DIN EN1090, these ladders represent the ultimate in quality German design and manufacture and as such carry the European CE mark. Supplied in easy to manage pieces, with jointing blocks allowing sections to be bolted together and cut to size on site as required.

Features

• Sturdy vertical ladder supplied with wall mounting brackets

• Supplied with safety hoop cage to upper part of the ladder
• Ladder available in Aluminium or Galvanised Steel

• Ladder width 520mm

• Rung spacing 280mm

• Square rungs 30mm x 30mm

• Stile dimensions  60mm x 25mm

• Supplied with standard 200mm deep mounting brackets

• Deeper mounting brackets (up to 600mm) available on request

• Expandable modular system options include safety hoops, stile extensions, safety gates etc.
• Hoop diameter 700mm

See options to choose required height. These heights are "Up To" heights and should be cut to size on site.
