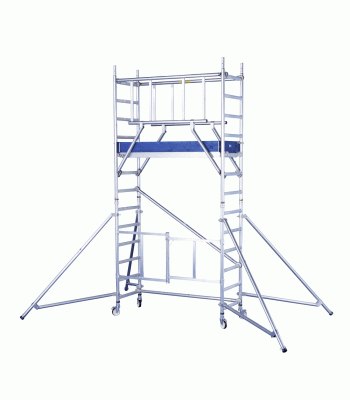

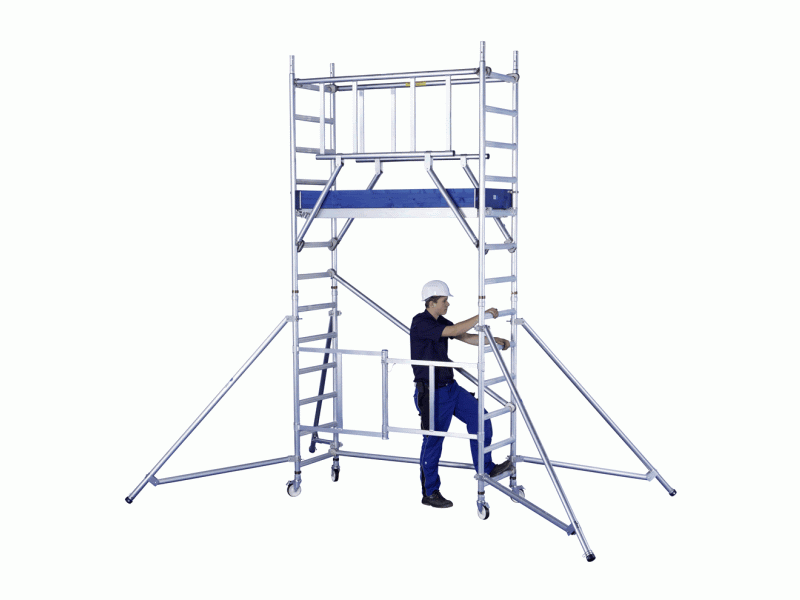

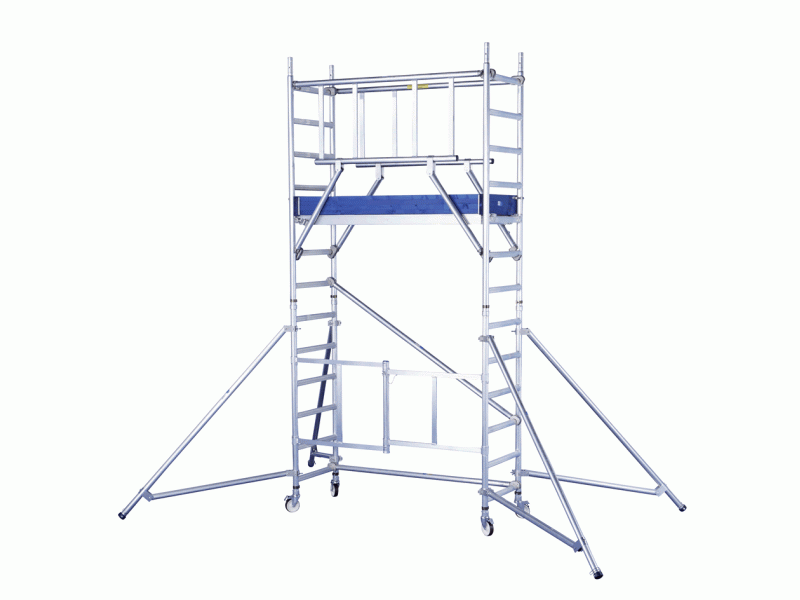

Zarges Reachmaster AGR Scaffold Tower 5.8m Platform Height - Code 5600014 (Advanced Guardrail)

ReachmasterTM AGR is the robust and easy to use mobile scaffold tower, which thanks to its innovative advanced guard rail system, offers leadership in on-site safety and performance.

AGR (advanced guard rails) replace individual braces with a complete integrated guard rail that can be fitted from the ground or platform below, replacing the need to assemble whilst sitting on an exposed platform. Not only is this safer, protecting the user from potential falls, but is quicker as there are fewer parts to handle.

Specification

  • Scaffolding size, approx.: 1.80m x 0.72m
  • Folding base frame is ideal for rapid erection and dismantling
  • Minimum space required for transport and storage (folding frame only 1900mm x 960mm x 360mm when closed)
  • Certified to EN 1004 Class 3 (can be loaded up to 200kg/m2)
  • Safe working load: 202kg
  • Advanced Guard Rails for added safety and quicker assembly
  • Robust - Ø50mm frames and braces
  • Working Height, approx (m) - 7.85
  • Platform Height (m) - 5.8
  • Weight (kg) - 140.9
  • Order no. 5600014

Alternative Sizes (see above to select size)

Code Working Height Platform Height Weight
5600011 4.5m 2.5m 88.9kg
5600012 5.70m 3.7m 96.1kg
5600013 6.55m 4.5m 108.9kg
5600014 7.85m 5.8m 140.9kg
5600015 8.70m 6.70m 157.50kg

Points of Interest

  1. Folding base frame - Folding frame can be easily transported and stored due to compact closed dimensions (1900mm x 960mm x 360mm). Is easy to erect and dismantle quickly and safely.
  2. Frames & spring clips - Robust Ø50mm frames are easily locked in place using spring clips.
  3. Wheels - Ø125mm wheels supplied with towers up to 4.5m platform height. Ø150mm height adjustable wheels supplied with towers from 5.8m platform height.
  4. Trapdoor plaftorm - Platform size approx. 1.80m x 0.60m.
  5. Stabilisers - Four stabilisers to increase footprint of tower, ensuring stability during use.
  6. Advanced Guard Rails - Integrated guardrail system for faster and safer assembly.
  7. Toeboards - Toeboards included with all Reachmaster AGR scaffold towers. To prevent items falling from platform.
  8. Aluminium Spigots - Tough aluminium spigots that can withstand rigorous use

Components

Working Height, approx (m) 7.85m
Weight (kg) 140.9
Folding Unit (42734) 1
Push-on end frame, 1m (42733) 2
Push-on end frame, 2m (42750) 4
Advanced guardrail (42837) 6
Trapdoor platform (42725) 3
End toeboard (42749) 2
Side toeboard (42739) 2
Diagonal brace (42741) 1
Horizontal brace (42742) 1
Triangular stabiliser (42756) 4
Swivel castor 125mm (42758) -
Swivel castor 150mm (42759) 4
Stirrup step (42940) 1
